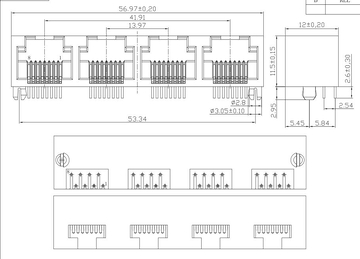

LPJE504-0NNL rj45 1x4 jack without shield tab up without led
Click to open expanded view

LINK-PP LPJE504-0NNL RJ45 1x4 Jack Without Shield Tab Up Without Led

Product summary

Product
LINK-PP LPJE504-0NNL RJ45 1x4 Jack Without Shield Tab Up Without Led
SKU
204035
P/N
LPJE504-0NNL
Price
$ 1.24
Stock
700 in Stock
Sold
3.5K
Unit price $ 1.24
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJE504-0NNLSKU: 204035

LINK-PP originalDatasheetAll downloads

Compatible:
LINK-PP
Compatible P/N:
LPJE504-0NNL

Need a larger qty, or to negotiate price?

Stock:
700 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 1.24

LINK-PP LPJE504-0NNL RJ45 Jack Without Shield (1X4 Port,Tab Up,Without LED)


The LINK-PP LPJE504-0NNL supports speed 10/100/1000 Base-T, it is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001, ISO14001 standards. It can be used to support application, such as Intercom,Industrial PC, router and Switch.


LINK-PP Part Number
LPJE504-0NNL
Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
-
Number of Ports
1x4 PortSpeed
-
Latch
UpCores per Port
-
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Without Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.453/11.50Package Length (Inches/mm)

0.472/12.00

Package Width (Inches/mm)
2.243/56.97
Temperature
-40℃ TO 85℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJE504-0NNL REVB.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Up, so the release clip on the plug ends up on the top face of the jack. On a rear panel that puts it toward the lid, which is where a technician can reach it. If your cable exits downward and the clip needs to be underneath, you want the down version instead. by LINK-PP Technical Support
  • A:
    The housing is 56.97mm across and 11.50mm tall. Add the panel thickness and a small clearance each side. In our build the opening was 57.2mm and the housing sat inside with about 0.1mm per side, which worked but left no room for a painting tolerance. by LINK-PP Technical Support
  • A:
    The jack does not decide that. PoE current flows through the same eight contacts, and this part has no magnetics and no PoE marking, so the rating would come from your transformer and your own thermal test. I would not assume a PoE rating from this page. by LINK-PP Technical Support
  • A:
    Electrically yes, they are four separate 8p8c contacts sets. Mechanically they share one housing, which is what fixes the port spacing. So a fault in one port cannot take the others down electrically, but a broken housing does mean replacing the block. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    21 Reviews

  • 5 Stars
    90%
    4 Stars
    10%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (21)
No data
L***e
Chile
Verified Purchase
5.0
2026-11-18
We use the 1x4 row at 56.97 mm wide, it fits our cut.
V***n
New Zealand
Verified Purchase
4.0
2026-11-02
Carton crushed, but all four up latch jacks click home with a solid hold.
T***d
Colombia
Verified Purchase
4.0
2026-11-02
Docking a star because the page gives the width as 56.97mm and the height, but nothing about how far the body projects behind the board edge, and that is the number the enclosure designer asks for first.
R***d
Philippines
Verified Purchase
5.0
2026-10-28
Two builds, two hundred and three hundred and fifty pieces. The second lot matched the first on height and on the port spacing, which we check with a go gauge across all four openings. No unit needed the panel reworked, and no unit came back from the field in eighteen months.
A***e
Netherlands
Verified Purchase
5.0
2026-09-03
Panel alignment across four ports is where a ganged part earns its place. With four separate jacks, each one can sit a little differently and the fourth port ends up fighting the cut-out. Here the spacing is fixed by the moulding, so if the first port lines up the fourth does too, every time.
