Breadcrumb: Home; Products; Modular Jack; RJ45 Jack without Magnetics; 8P8C RJ45 Jack; 104484

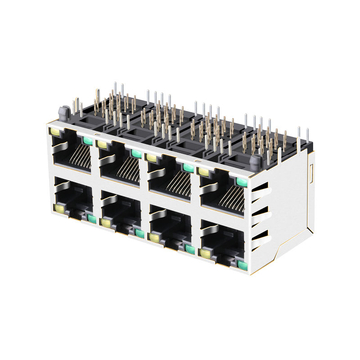

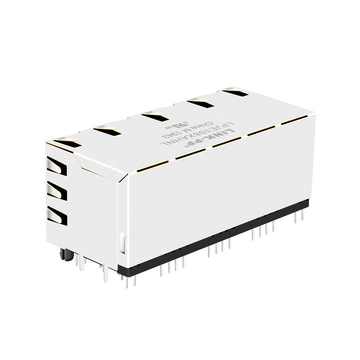

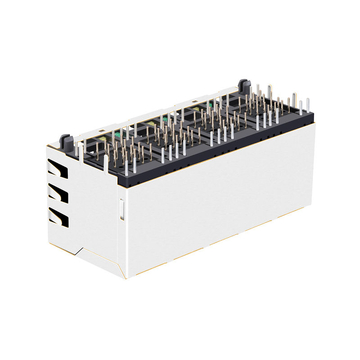

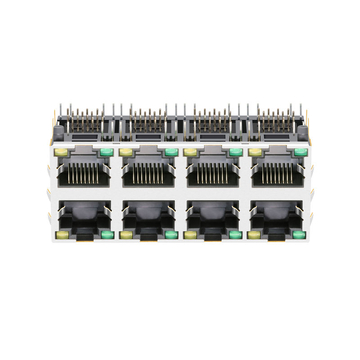

LPJE108XAHNL 2x4 Port RJ45 Modular Jack Without Magnetics Tab Up Green/Yellow LED

Name: LPJE108XAHNL 2x4 Port RJ45 Modular Jack Without Magnetics Tab Up Green/Yellow LED
Brand: LINK-PP
SKU: 104484
Price: 7.50 USD
Availability: InStock
Rating: 5 (23 reviews)

Product: LPJE108XAHNL 2x4 Port RJ45 Modular Jack Without Magnetics Tab Up Green/Yellow LED
SKU: 104484
P/N: LPJE108XAHNL
Price: $ 7.50
Stock: 1166 in Stock
Sold: 990
Product URL: https://www.l-p.com/products/438956.htm

23 Reviews

4 Questions

990Sold

Unit price $ 7.50

New Users: $ 10.00 Coupon on Your First Order

Code linkpp2610

For Order Over $ 1,000.00 Get $ 15.00 Off

Code Linkpp15

For Order Over $ 3,000.00 Get $ 50.00 Off

Code Linkpp50

For Order Over $ 5,000.00 Get $ 100.00 Off

Code Linkpp100

P/N: LPJE108XAHNLSKU: 104484

LINK-PP originalDatasheet 3D Model All downloads

Compatible:: X Multiple; LINK-PP

Compatible P/N:: LPJE108XAHNL

Volume pricing Online tiers · larger qty or custom price on request

$ 7.500

1–99 pcs

$ 7.500

100–999 pcs

$ 6.750

1,000–4,999 pcs

$ 6.525

5,000–9,999 pcs

$ 6.375

10,000–14,999 pcs

$ 6.150

≥15,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:

1166 in Stock

Shipping:

$ 29.47

to United States via FedEx IP

Estimated delivery time : 3 - 6 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Free shipping over $ 600.00.

Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).

Quantity:

SPQ 10

Total Price:

$ 7.50

Packaging Details

SPQ:10 pcs
Qty/carton:200 pcs
Package:Tray
Carton size:37.5×24×34.5 cm
N.W/pcs:0.071 kg
G.W/carton:14.2 kg

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

LINK-PP LPJE108XAHNL 2x4 Port RJ45 Jacks without Integrated Magnetics, Green/Yellow LED,Tab Up,RoHS

LINK-PP Part Number:	LPJE108XAHNL	Connector Type	Jack
Part Status	Active	Mounting Type	Through Hole
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	Application-Lan	-
Number of Ports	2x4 Port	Speed	-
Latch	Both	Cores per Port	-
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Green/Yellow
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	1.00/25.40	Package Length (Inches/mm)	1.108/28.15
Package Width (Inches/mm)	2.514/63.86	Temperature	-40℃ TO +85℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing LPJE108XAHNL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question

Q:
Could the green and yellow lenses be driven from one supply? by P***y

A:
Green and Yellow LEDs are named in the title, with bare leads reaching the board. No colour is bound to a particular link state by us. Series resistors and drive voltage come from the host circuit. The panel legend is yours to write. by LINK-PP Technical Support
Q:
Would the 63.86 mm width suit a half rack faceplate? by B***t

A:
Package Width is 63.86 mm and Package Height is 25.40 mm overall. Two rows of four 8p8c cavities fill that outline. Shield EMI Tabs is With along the housing edge. Whether a half rack panel fits is a mechanical check. by LINK-PP Technical Support
Q:
Do the tab up and tab down rows share one latch bar? by B***y

A:
Latch reads Both because the upper and lower rows face opposite ways. Four mouths sit in each row of the 2x4 body. A cutout needs release space above one row and below the other. The chassis drawing defines those two gaps. by LINK-PP Technical Support
Q:
Will eight separate magnetics footprints fit behind this 2x4 stack? by L***o

A:
The title says Without Magnetics, so eight mouths carry contacts and lens leads only. Each of the eight ports brings its own tails out to the board. Isolation coils have to sit somewhere behind the connector. That spacing is a layout question. by LINK-PP Technical Support
