RJ45 Jack without Magnetics

8P8C RJ45 Jack

204034

LINK-PP LPJE502-0NNL RJ45 1x1 Connector Tab Up Without Shield Without Led

Name: LPJE502-0NNL
Brand: LINK-PP
SKU: 204034
Price: 0.62 USD
Availability: InStock

# 204034

For Order Over $1000 Get $15.00 Off , Code:

Linkpp15

For Order Over $3000 Get $50.00 Off , Code:

Linkpp50

For Order Over $5000 Get $100.00 Off , Code:

Linkpp100

: LINK-PP LPJE502-0NNL RJ45 1x1 Connector Tab Up Without Shield Without Led

0 Reviews Need Help?

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

0 Reviews

0 Questions

Request Stock

2.6K Sold

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF )

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

100

$ 0.62

1000

$ 0.558

5000

$ 0.54

10000

$ 0.527

15000

$ 0.509

P/N: LPJE502-0NNL

Compatible:: LINK-PP

Competitor P/N:: LPJE502-0NNL

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

LINK-PP LPJE502-0NNL RJ45 Connector Without Shield (1X1 Port,Tab Up,Without LED)

The LINK-PP LPJE502-0NNL supports speed 10/100/1000 Base-T, it is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001, ISO14001 standards. It can be used to support application, such as Intercom,Industrial PC, router and Switch.

LINK-PP Part Number	LPJE502-0NNL	Connector Type	Jack
Part Status	Active	Mounting Type	Through Hole
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	Application-Lan	-
Number of Ports	1x1 Port	Speed	-
Latch	Up	Cores per Port	-
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	Without	LED Option	Without Leds
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.453/11.50	Package Length (Inches/mm)	0.472/12.00
Package Width (Inches/mm)	0.593/15.06	Temperature	-40℃ TO 85℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"

RJ45 Jack Without Shield

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

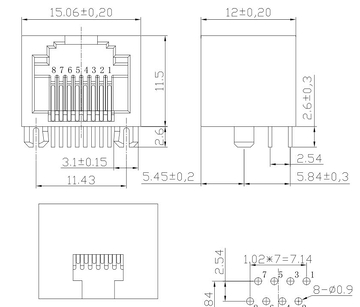

Product Drawing

PDF
LPJE502-0NNL REVB.pdf
