molex 757145001 compatible link-pp lp22bc01103 sfp+ 2x2 cage&connector with inner outer light pipe press-fit
Click to open expanded view

Molex 757145001 Compatible LINK-PP LP22BC01103 SFP+ 2x2 Cage&Connector With Inner/Outer Light Pipe Press-Fit

Product summary

Product
Molex 757145001 Compatible LINK-PP LP22BC01103 SFP+ 2x2 Cage&Connector With Inner/Outer Light Pipe Press-Fit
SKU
203176
P/N
LP22BC01103
Price
$ 10.90
Stock
950 in Stock
Sold
1.2K
Unit price $ 10.90
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP22BC01103SKU: 203176

Compatible with Molex 757145001DatasheetAll downloads

Compatible:
Molex
LINK-PP
Compatible P/N:
757145001
760915001
Volume pricing Online tiers · larger qty or custom price on request
$ 10.900
1–9 pcs
$ 10.355
10–99 pcs
$ 9.810
100–999 pcs
$ 9.265
1,000–2,499 pcs
$ 8.720
≥2,500 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
950 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 10.90

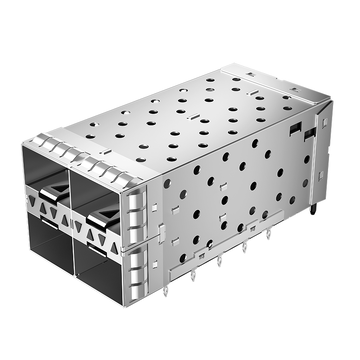

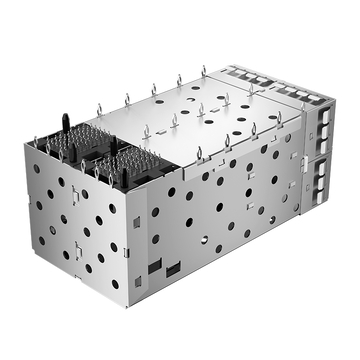

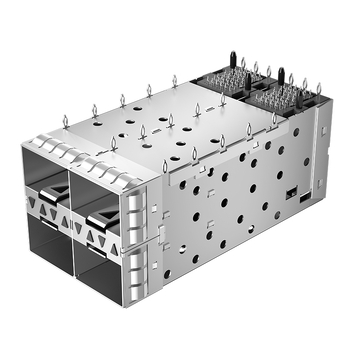

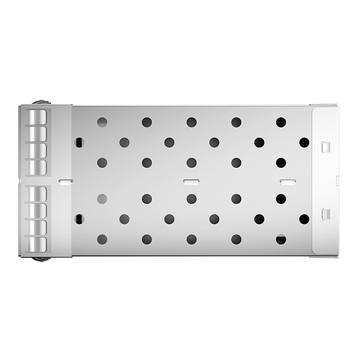

Molex 757145001 Compatible LINK-PP LP22BC01103 SFP+ 2x2 Cage Connector With EMI Spring Finger Inner/Outer LightPipe

LINK-PP Part Number LP22BC01101 Molex Part Number
757145001
Product Type Cage Form Factor SFP+
Cage COPPER ALLOY,Ni PL ATED THICKNESS 0.25mm
PACKAGING TRAY PACKAGING Mounting Type Through Hole, Right Angle
Port Matrix Configuration 2x2 Port Number of Ports 4
Operating Temperature Range -40 – 85°C PCB Mounting Style Through Hole - Press-Fit
Included Lightpipe With Inner/Outer LightPipe Height (Inches/mm) 1.005/25.53
Length (Inches/mm) 2.490/63.25 Width (Inches/mm)
1.142/29.00

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP22BC01103.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Nickel over copper alloy is the right choice for humidity, and it resists the tarnish that bare copper shows within months at a coastal site. It is not a salt fog part, so if the chassis is in direct salt air, add a conformal coat on the board side and keep the cage interior dry with a gasket. by LINK-PP Technical Support
  • A:

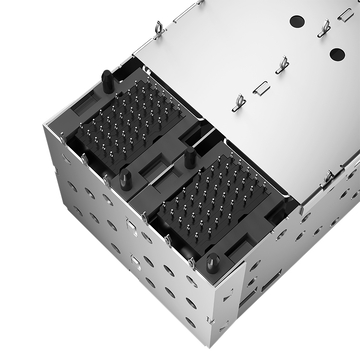

    No. Use a press with a flat ram and a support plate, and press squarely in one stroke. A 2x2 body is rigid, which helps, but 96 tails at roughly 20N each means well over a thousand newtons total. Hand pressure will tilt the part and bend the tails on the leading edge. by LINK-PP Technical Support
  • A:
    Yes, they route to different points. The inner pipes sit at module level and carry per port status, the outer pipes sit above the cage and carry a cage level indication. Your bezel needs two sets of openings, and the outer ones are further from the port centreline, so plan the front panel layout from the cage drawing rather than from a photo. by LINK-PP Technical Support
  • A:
    The overall length is 63.25mm for four ports in two columns, which puts the column pitch near 31.6mm, and the width of 29.00mm covers two rows. The page does not publish the exact pitch, so measure a sample before you commit the PCB footprint, because a 0.1mm error over four ports will fight you during insertion. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    21 Reviews

  • 5 Stars
    90%
    4 Stars
    10%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (21)
No data
G***r
Indonesia
Verified Purchase
5.0
2026-11-18
Press fit tails on the 2x2 block seated first try.
D***n
Singapore
Verified Purchase
4.0
2026-11-02
No padding in the tray, but the shells arrived clean and seated first try.
A***d
United Arab Emirates
Verified Purchase
5.0
2026-11-02
We compared this with a competitor cage at the same density. The competitor was 0.2mm thicker and cost 18 percent more, and its light pipes were a separate item. At twelve cages per chassis the difference paid for the tooling.
E***d
Viet Nam
Verified Purchase
5.0
2026-04-08
Second lot matched the first on pitch and on plating appearance. We also checked that the light pipe ends were flush to within 0.1mm, because a pipe that sits proud catches on the bezel during assembly.
A***y
Greece
Verified Purchase
5.0
2026-03-15
One practical note: the tray packing is good but the parts are heavy for their size. Open the tray over a bench, not over the floor, because a dropped cage lands on a corner and a bent corner will not press.
