molex 760455002 compatible link-pp lp22bc01203 sfp+ 2x2 cage&connector with emi spring finger inner light pipe

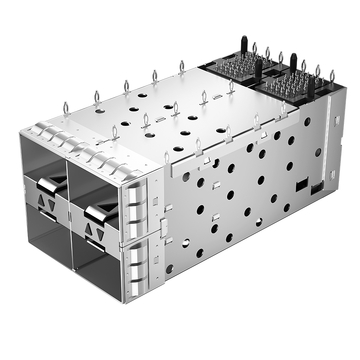

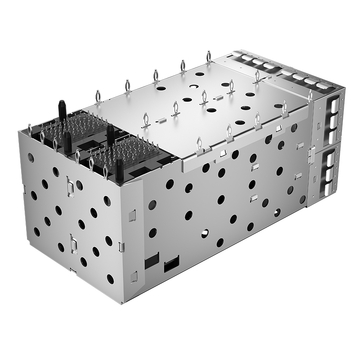

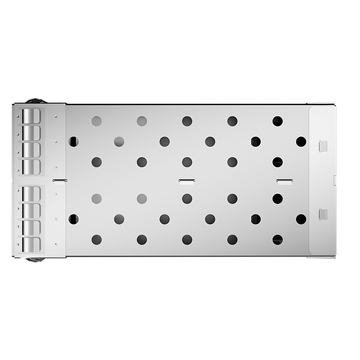

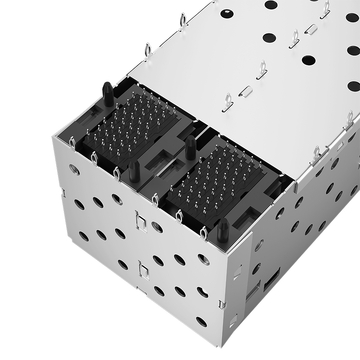

Molex 760455002 Compatible LINK-PP LP22BC01203 SFP+ 2x2 Cage&Connector With EMI Spring Finger Inner Light Pipe

Product summary

Product
Molex 760455002 Compatible LINK-PP LP22BC01203 SFP+ 2x2 Cage&Connector With EMI Spring Finger Inner Light Pipe
SKU
203394
P/N
LP22BC01203
Price
$ 10.90
Stock
500 in Stock
Sold
9.5K
Unit price $ 10.90
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP22BC01203SKU: 203394

Compatible with Molex 760455002Datasheet3D ModelAll downloads

Compatible:
Molex
LINK-PP
Compatible P/N:
757145002
760455002
760915002
Volume pricing Online tiers · larger qty or custom price on request
$ 10.900
1–9 pcs
$ 10.355
10–99 pcs
$ 9.810
100–999 pcs
$ 9.265
1,000–2,499 pcs
$ 8.720
≥2,500 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
500 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 10.90

Molex 760455002 Compatible LINK-PP LP22BC01203 SFP+ 2x2 Cage Connector With EMI Spring Finger Inner LightPipe

LINK-PP Part Number LP22BC01203 Molex Part Number 760455002
Product Type Cage Form Factor SFP+
Features EMI Shielded Mounting Type Through Hole, Right Angle
Port Matrix Configuration 2x2 Port Number of Ports 4
Operating Temperature Range -40 – 85°C PCB Mounting Style Through Hole - Press-Fit
Included Lightpipe With Inner LightPipe Height (Inches/mm) 1.005/25.53
Length (Inches/mm) 2.490/63.25 Width (Inches/mm)
1.142/29.00

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP22BC01203.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The connector is rated for 500 mate cycles minimum. Retention force starts around 12N and drops maybe 15 percent after 200 cycles, which is still well above what a module needs to stay seated. In practice the module latch, not the cage, is the wear item. For a port that gets re patched daily, plan on replacing the module before the cage. by LINK-PP Technical Support
  • A:
    Press-fit works well on 1.6mm FR4 with 4 layers as long as the finished hole is 0.6mm plus or minus 0.05mm and the pad annulus is at least 0.25mm. The advantage is no thermal cycle on the connector and no flux in the optical opening. For a 4 layer board with thin copper, keep the press force under 1.3kN and support the board underneath. If your board is 0.8mm or thinner, use the solder version instead. by LINK-PP Technical Support
  • A:
    Yes, the guide is moulded in a polycarbonate blend rated to -40℃ and the cage is rated -40 to 85℃. The failure mode at low temperature is brittleness, so avoid any design where the guide is under bending load from the panel. Keep a 0.2mm clearance between guide tip and panel, and do not use cyanoacrylate to bond anything near it, that is what cracks polycarbonate in cold rooms. by LINK-PP Technical Support
  • A:
    Plan for plus or minus 0.3mm on the panel opening relative to the cage datum. The guide has about 0.5mm of float built into the moulding, so 0.3mm misalignment still shows a clean light. Beyond 0.4mm you get a dim or offset spot. Give us the panel drawing and we will confirm the guide position against your datum before you cut the die. by LINK-PP Technical Support
  • A:
    This part has an inner guide only, so it carries one indication per port, normally link. If you need link plus activity you want the inner and outer version of the same 2x2 family. You can also drive both LEDs into the single guide with two colours, but then you lose the ability to tell link from activity at a glance. Most industrial designs use link only and put activity on a separate front panel LED. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    19 Reviews

  • 5 Stars
    95%
    4 Stars
    5%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (19)
No data
N***n
Colombia
Verified Purchase
5.0
2026-10-17
SFP+ at 29.00 mm across, worth it for four modules. :D
C***a
Netherlands
Verified Purchase
5.0
2026-09-07
The inner light pipe is a single moulded piece, not glued, so it will not fall out in a hot cabinet. We had that happen with a glued guide on another vendor's part.
E***n
Ireland
Verified Purchase
5.0
2026-02-17
Bought for a railway trackside cabinet. Vibration test at 5 to 500Hz, 1.5g, one hour per axis, all four ports still linked afterwards. The press-fit tails held and the light pipe did not move. We also did a 30g shock test on three units, no cracked housings, though one module popped out of the cage, which is normal for a shock that hard.
N***m
South Africa
Verified Purchase
5.0
2025-07-21
Insertion force feels right, about 12N to seat a module, and the retention clip engages with an audible click. Technicians like it because they can tell it is in.
K***k
Thailand
Verified Purchase
5.0
2025-07-20
We compared this against a two piece cage plus separate connector. The integrated connector saved us 4mm of board space and one assembly step, which paid for the price difference in one production run.
