te 2110820-5 compatible link-pp lp22bc01101 sfp+ 2x2 cage&connector with light pipe press-fit

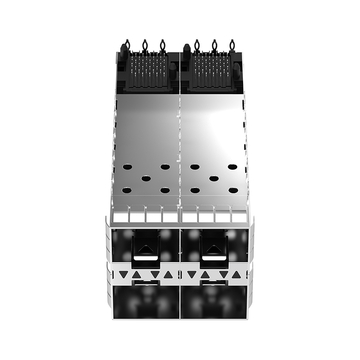

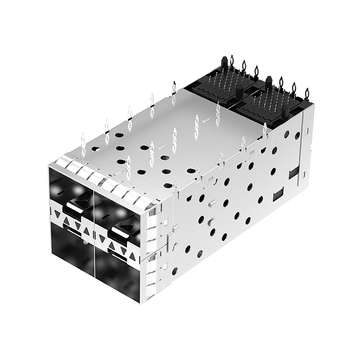

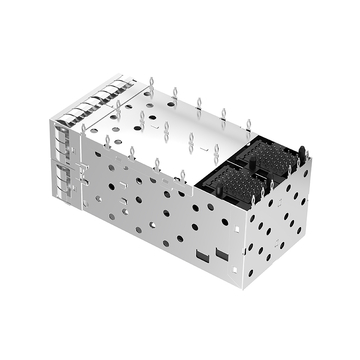

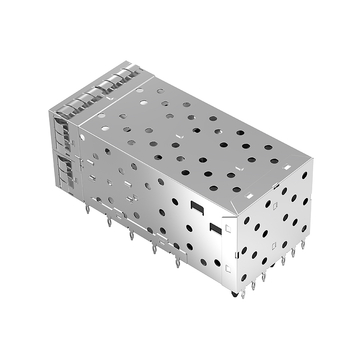

TE 2110820-5 Compatible LINK-PP LP22BC01101 SFP+ 2x2 Cage&Connector With Light Pipe Press-Fit

Product summary

Product
TE 2110820-5 Compatible LINK-PP LP22BC01101 SFP+ 2x2 Cage&Connector With Light Pipe Press-Fit
SKU
181214
P/N
LP22BC01101
Price
$ 6.60
Stock
1050 in Stock
Sold
1.5K
Unit price $ 6.60
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP22BC01101SKU: 181214

Compatible with TE 2110820-5Datasheet3D ModelAll downloads

Volume pricing Online tiers · larger qty or custom price on request
$ 6.600
1–99 pcs
$ 5.657
100–999 pcs
$ 4.950
1,000–4,999 pcs
$ 4.703
5,000–9,999 pcs
$ 4.455
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1050 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 6.60

TE 2110820-5 Compatible LINK-PP LP22BC01101 SFP+ Cage 2x2 Port With Connector Included Lightpipe

LINK-PP Part Number LP22BC01101 Part Status 2110820-5
Product Type Receptacle with Cage, Ganged (2x2) Form Factor SFP+
Number of Positions 80 (20 x 4) Mounting Type Through Hole, Right Angle
Termination Press-Fit Features Board Guide, EMI Shielded
Port Matrix Configuration 2x2 Ports Number of Ports 4
Data Rate (Max)(Gb/s) 16 GB/S PCB Mounting Style Through Hole - Press-Fit
Operating Temperature Range -40 – 85°C Pluggable I/O Applications SFP+
Circuit Application Signal EMI Containment Feature Type Elastomeric Gasket
Included Lightpipe Yes PCB Thickness (Recommended) 1.5mm[.059in]
Tail Length 3mm[.118in]

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP22BC01101-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The operating range is -40℃ to 85℃. A cold start does not change the press fit, since the frame is copper alloy. The plastic light pipe is the part that sets the low end. Nothing in the cage needs a warm up. by LINK-PP Technical Support
  • A:
    The page recommends a 2.36 mm board for the press fit tails. A thinner board leaves the tails short of the far side. Check the hole plating before seating the cage. The copper alloy frame does not flex during the press. by LINK-PP Technical Support
  • A:
    The tails are designed to press into plated holes without solder. Reflow is not part of the process for this cage. A solder fillet on the tails is not needed and can block a later replacement. by LINK-PP Technical Support
  • A:
    The outer pipe runs from the lower row up the front of the cage. Both inner and outer pipes are included in the kit. Each of the four ports gets its own light path to the face. by LINK-PP Technical Support
  • A:
    The cage is stamped as one ganged frame with four slots in a 2x2 layout. That single frame fixes the spacing between every slot. Press fit tails at the base take the seating load. An empty slot stays square after the press. by LINK-PP Technical Support

Customer Reviews

  • 5

    34 Reviews

  • 5 Stars
    100%
    4 Stars
    0%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (34)
No data
J***e
Verified Purchase
5.0
2026-11-14
Our line card takes four SFP+ ports and this cage carries all of them. Height is 25.53 mm and the frame is 29.00 mm wide. 200 cages pressed, all square. The heat sink cleared the cage top, as expected.
H***m
Mexico
Verified Purchase
5.0
2026-09-04
We compared this with two 2x1 cages. The 2x2 was cheaper per port, removed one placement and one press stroke, and the seam between the two 2x1 parts had been opening slightly after pressing on the old design.
R***n
Netherlands
Verified Purchase
5.0
2026-08-26
Second lot matched the first on spacing and on both pipe alignments. We check the outer set separately from the inner set, because a problem with one does not show up when you inspect the other.
J***l
India
Verified Purchase
5.0
2026-05-19
We moved our line card to this 2x2 frame and gained the panel space back. The ports sit in one plane so the fibres land straight, good. 200 cards built :-)
D***n
Ukraine
Verified Purchase
5.0
2026-04-09
Mechanically the 2x2 is the sweet spot in this family. It is rigid enough that it does not rock during pressing, unlike two 2x1 parts side by side, and it is short enough that a normal ram covers it evenly, unlike a 2x6. We press 32 units in one stroke each and have not had a single high tail.
