L9-SC315501-20PPI5 155m stm-1 oc-3 bidi 1310nm-tx 1550nm-rx 20km simplex sc smf 1x9 transceiver (industrial)
Click to open expanded view

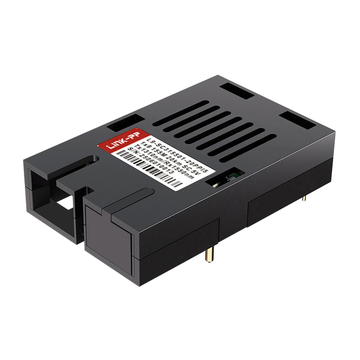

LINK-PP L9-SC315501-20PPI5 155M STM-1 OC-3 BiDi 1310nm-TX/1550nm-RX 20km Simplex SC SMF 1x9 Transceiver (Industrial)

Product summary

Product
LINK-PP L9-SC315501-20PPI5 155M STM-1 OC-3 BiDi 1310nm-TX/1550nm-RX 20km Simplex SC SMF 1x9 Transceiver (Industrial)
SKU
201074
P/N
L9-SC315501-20PPI5
Price
$ 12.00
Stock
50 in Stock
Sold
2K
Unit price $ 12.00
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: L9-SC315501-20PPI5SKU: 201074

LINK-PP originalDatasheetAll downloads

Compatible:
LINK-PP
Volume pricing Online tiers · larger qty or custom price on request
$ 12.00
1–99 pcs
$ 11.40
100–999 pcs
$ 11.04
1,000–2,999 pcs
$ 10.68
3,000–5,999 pcs
$ 10.32
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
50 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 12.00

LINK-PP L9-SC315501-20PPI5 155M 1x9 Specifications

L9-SC315501-20PPI5 is an industrial-grade 1x9 BiDi optical transceiver operating at 155Mbps for SDH/SONET applications across harsh temperature environments from -40°C to 85°C. Powered by a 5V supply, it integrates an FP transmitter and a PIN receiver to achieve dependable single-strand bidirectional communication up to 20km over single-mode fiber.

LINK-PP Part Number L9-SC315501-20PPI5 Vendor Name LINK-PP
Form Factor 1x9 Max Data Rate 155Mbps
Wavelength 1310nm-TX/1550nm-RX Max Cable Distance 20km
Connector Simplex SC Fiber Type SMF
Transmitter Type FP Receiver Type PIN
Receiver Sensitivity <-32dBm Power Supply 5V
Differential Input/ Output (LV)PECL Signal Detect (LV)PECL
Operating Temperature Range -40°C to 85°C Application

WDM Application、SDH STM-1 / SONET OC-3、Fast Ethernet

Key Features of LINK-PP L9-SC315501-20PPI5 155M 1×9

LINK-PP L9-SC315501-20PPI5 includes an industry-standard 1×9 design, 155Mbps transmission rate, 1310/1550nm BiDi optics, 20km distance, and a simplex SC connector. It provides all core optical and hardware capabilities to keep industrial fiber connections simple and dependable.

LINK-PP L9-SC315501-20PPI5 155M 1×9 Optical Module

This optical transceiver module utilizes a standard 1×9 footprint that complies with industry MSA standards for easy mounting on host circuit boards. It features very low EMI and certified ESD protection, along with standard (LV)PECL differential input/output and (LV)PECL signal detect lines.

L9-SC315501-20PPI5: 155 Mbps Connectivity for Industrial SDH/SONET Systems

Operating at a stable 155Mbps data rate, this 1×9 BiDi module provides dependable data transmission for industrial automation and utility networks. This speed fully satisfies standard STM-1 and OC-3 telecommunication requirements for steady line communication.

L9-SC315501-20PPI5 Module with 1310nm-TX/1550nm-RX Wavelength

Bidirectional communication works by transmitting optical signals at 1310nm and receiving signals at 1550nm over a single strand of fiber. Separating the transmit and receive paths by wavelength lets both directions operate simultaneously without crosstalk.

L9-SC315501-20PPI5 Module Supporting 20km Transmission

Optical signals can travel across single-mode fiber links up to 20km without extra signal amplifiers. Such transmission distance makes it simple to connect distant industrial equipment, control cabinets, and substation nodes.

L9-SC315501-20PPI5 Module with Simplex SC Interface

A standard simplex SC connector port provides a secure push-pull connection for single-mode fiber cables. The straightforward latch mechanism prevents loose connections and ensures low insertion loss during daily operation.


LINK-PP L9-SC315501-20PPI5 155M 1×9 Certification

LINK-PP L9-SC315501-20PPI5 155M 1×9 module meets recognized international quality and safety benchmarks, holding ISO 9001, CE, RoHS, and FCC certifications for dependable deployment in industrial networks.

Optical Transceivers Testing

Each 1×9 optical transceiver undergoes rigorous optical and electrical checks before shipment to ensure reliable signal transmission and consistent field operation.

L9-SC315501-20PPI5 Quality Certifications

Official regulatory approvals verify that the module complies with strict environmental, electromagnetic, and industrial safety regulations.

Standard Multi-Vendor PCB Footprint Compatibility

The industry-standard 1×9 pinout layout allows straightforward soldering onto host circuit boards across diverse hardware platforms without custom modifications.


Rigorous Testing Ensures Reliable 1×9 Performance

Each L9-SC315501-20PPI5 155M 1×9 BiDi module undergoes comprehensive validation to guarantee consistent signal transmission across single-strand fiber networks. Learn more about our testing standards by visiting the LINK-PP Test Support Center.

Optical

Optical Spectrum Test

Check BiDi wavelength values to maintain precise 155M optical transmission.

Optical

Eye Pattern Test

Assess signal waveform quality to prevent optical jitter across links.

Optical

Bit Error Rate Test

Check received data packets to ensure zero bit transmission errors.

Optical

Temperature Test

Assess optical transceiver stability to support extreme industrial field conditions.


Product Shipping for LINK-PP L9-SC315501-20PPI5 155M 1×9

LINK-PP provides safe packaging and prompt delivery services to protect your L9-SC315501-20PPI5 155M 1×9 BiDi transceivers during transit. Every shipment follows reliable logistics procedures to ensure your orders arrive securely on schedule.

Anti-Static Protective Packaging

Anti-Static Protective Packaging

Shield internal circuits against electrostatic harm during long handling phases.

Shock-Resistant Transport Protection

Shock-Resistant Transport Protection

Protect optical transceivers against physical impacts during regular carrier transit.

Fast Order Processing and Dispatch

Fast Order Processing and Dispatch

Prepare incoming customer shipments quickly to ensure prompt factory dispatch.

Global Logistics and International Delivery

Global Logistics and International Delivery

Deliver transceiver modules across global regions through reliable logistics carriers.

LINK-PP L9-SC315501-20PPI5 155M 1×9 Usage Demonstration

Solder the L9-SC315501-20PPI5 1×9 BiDi transceiver pins to your host PCB and plug a single-mode fiber cable into the simplex SC port. Pair it with an opposite-wavelength module to enable dependable 155Mbps transmission for industrial SDH/SONET systems, substation automation, and legacy telecom networks over one fiber strand.

L9-SC315501-20PPI5 Technical Support

LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.

Pre-Sales Technical Consultation

Pre-Sales Technical Consultation

Professional guidance to help you select the optimal L9-SC315501-20PPI5 module for your network design and application needs.

Compatibility Verification Support

Compatibility Verification Support

Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.

Deployment & Installation Assistance

Deployment & Installation Assistance

Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.

Long-Term Technical Assurance

Long-Term Technical Assurance

Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.

LINK-PP L9-SC315501-20PPI5 155M 1×9 After-Sales Assurance

LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.

15 days

15-day no-reason return and refund

Free maintenance or replacement

Free replacement for dead-on-arrival (DOA) or defective items within the initial period

Free maintenance

 Free repair services for manufacturing defects throughout the warranty period

Limitations

Warranty exclusions and conditions apply

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing L9-SC315501-20PPI5.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question

Customer Reviews

  • 4.9

    43 Reviews

  • 5 Stars
    93%
    4 Stars
    7%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (43)
No data
T***t
Verified Purchase
4.0
2026-11-06
Four stars because the tray had no date code on the outer label, so goods-in logged the lot by hand. All six 1x9 units soldered flat and linked at 155M on the first board; the transceivers were. The parts were exactly as described. :)
T***y
Netherlands
Verified Purchase
5.0
2026-10-16
On the bench we cycled three of these 1x9 parts from -40C to 85C while they carried 155M STM-1 traffic, watching the (LV)PECL signal detect line at each soak point. None dropped detect, and the 1310nm launch stayed within the budget implied by the better than -32dBm sensitivity figure. Each was paired with a reversed 1550nm unit over 20km of SMF. The 5V supply and one SC ferrule kept the fixture simple, and all three returned to room temperature without a retune.
R***n
Chile
Verified Purchase
5.0
2026-09-24
Standard 1x9 footprint seated flush on the host board.
Z***s
Republic of Korea
Verified Purchase
5.0
2026-09-24
Our technicians checked the optical loss before commissioning the proposed single-fiber link. We also confirmed that the remote transceiver would transmit at 1550nm and receive at 1310nm to match this module.
P***y
Japan
Verified Purchase
5.0
2026-05-14
The 5V power requirement matches our existing utility communication hardware. ;)
