LP21CC01003 sfp28 2x1 cage assembly with integrated connector press-fit with emi shielded

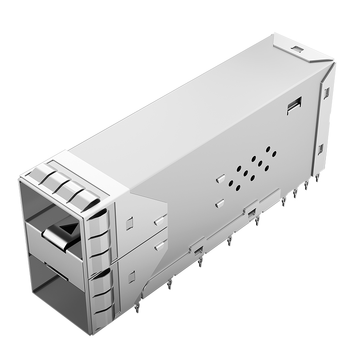

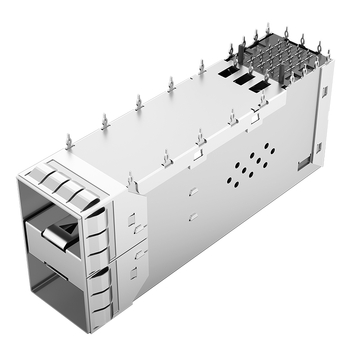

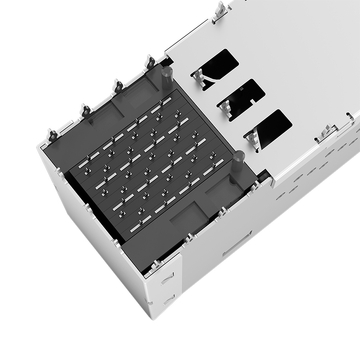

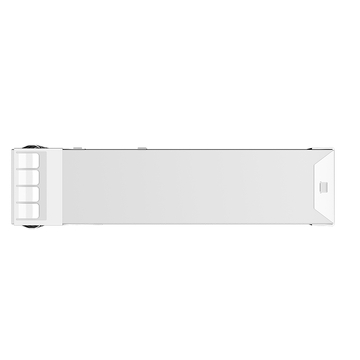

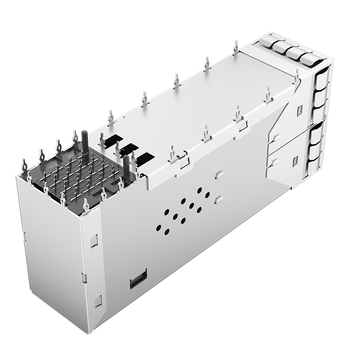

LP21CC01003 SFP28 2x1 Cage Assembly With Integrated Connector Press-Fit With EMI Shielded

Product summary

Product
LP21CC01003 SFP28 2x1 Cage Assembly With Integrated Connector Press-Fit With EMI Shielded
SKU
196616
P/N
LP21CC01003
Price
$ 3.71
Stock
745 in Stock
Sold
260
Unit price $ 3.71
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP21CC01003SKU: 196616

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LP21CC01003
Volume pricing Online tiers · larger qty or custom price on request
$ 3.710
1–99 pcs
$ 3.216
100–999 pcs
$ 2.838
1,000–4,999 pcs
$ 2.546
5,000–9,999 pcs
$ 2.285
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
745 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 3.71

LINK-PP LP21CC01003 SFP28 2x1 Cage Assembly With Integrated Connector Press-Fit With EMI Shielded

LINK-PP Part Number LP21CC01003 Part Status Active
Product Type Cage Assembly with Integrated Connector Form Factor SFP28
Max Data Rate 28 Gbps Features EMI Shielded
Port Matrix Configuration 2×1 Number of Ports 2
Included Connector Yes Included Heat Sink No
Included Lightpipe No EMI Containment Feature Type Spring Fingers
Termination Press-Fit Mounting Type Through Hole, Right Angle
Tail Length (Inches/mm) 0.079/2.00 Recommended PCB Thickness (Inches/mm) -
Length (Inches/mm) 2.490/63.25 Width (Inches/mm) 0.591/15.00 (REF)
Height (Inches/mm) 1.014/25.75 Cage Material Stainless Steel
Contact Plating Gold Cage Plating Nickel
Operating Temperature Range -40 to +85°C Packaging Tray

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP21CC01003.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    It belongs to the cage. The rating tells you the metal, the plating and the spring fingers survive that range, not that any transceiver you insert will. The range that decides whether the link works is the one on the module datasheet, and a commercial 0 to 70 degree SFP28 in a minus 40 cage still stops when the box gets cold. Match the two: industrial modules with industrial cages in an uncontrolled cabinet, commercial modules where the rack is conditioned. The cage figure is a mechanical statement. by LINK-PP Technical Support
  • A:
    It is a genuine trade. The frame occupies board area and panel opening for two ports whether you populate both or not, so a half populated card pays for capacity it does not use. What you get back is one press cycle instead of two, one part number instead of two, and both ports coplanar because one piece of metal anchors them. A fully populated card wins on assembly time; a half empty one is freer with two singles. by LINK-PP Technical Support
  • A:
    The LEDs still sit on the board and still light, they just have no path through the cage, so nothing is lost electrically. If the faceplate has to show link state you plan a board level guide at layout time, routing it from the LED pad out to the opening, and leave clearance under the body for it. There is no way to add that afterwards. If the card is managed remotely and nobody reads the panel, this version is the cheaper one with fewer parts to come loose. by LINK-PP Technical Support
  • A:
    The saving comes from the two ports sharing the wall between them, which is why a 2x1 ganged frame is narrower than two singles plus the gap. The 14.00mm figure is the body width; the panel opening is larger because the flange and springs sit outside it, so take the cutout from the drawing rather than scaling the body. On our card that width let us keep an already machined opening and still add the second port. by LINK-PP Technical Support

Customer Reviews

  • 5

    47 Reviews

  • 5 Stars
    98%
    4 Stars
    2%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (47)
No data
A***s
Switzerland
Verified Purchase
5.0
2026-11-07
2x1, so both ports are on one row and the cables leave at the same height.
S***s
Italy
Verified Purchase
5.0
2026-10-09
Right angle body, and the port openings line up with the panel without shimming.
L***k
France
Verified Purchase
5.0
2026-09-10
No light pipe here, so the LED stays on the board.
R***y
Philippines
Verified Purchase
5.0
2026-08-13
No light pipe, and that is a layout decision rather than a detail. The LED still works on the board, it simply has nowhere to shine through, so if the faceplate has to show link state you plan a guide at layout and leave room under the body for it. If the card is managed remotely and nobody reads the panel, this version is cheaper and has one less part to come loose. :-D
K***d
Indonesia
Verified Purchase
5.0
2026-07-15
The shield wraps both openings in one continuous piece. On the card this replaced, there were two separate single cages with a slot between them, and that slot was where the radiated scan went over the limit. A single shield has no slot to leak through, and we did not have to add a gasket to close it either.
