LP21CC01203 sfp28 2x1 cage assembly with integrated connector press-fit with inner light pipe emi spring finger
Click to open expanded view

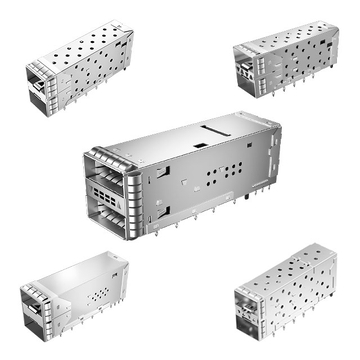

LP21CC01203 SFP28 2x1 Cage Assembly With Integrated Connector Press-Fit With Inner Light Pipe EMI Spring Finger

Product summary

Product
LP21CC01203 SFP28 2x1 Cage Assembly With Integrated Connector Press-Fit With Inner Light Pipe EMI Spring Finger
SKU
203586
P/N
LP21CC01203
Price
$ 7.90
Stock
226 in Stock
Sold
1.7K
Unit price $ 7.90
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP21CC01203SKU: 203586

LINK-PP originalDatasheetAll downloads

Compatible P/N:
LP21CC01203
Volume pricing Online tiers · larger qty or custom price on request
$ 7.900
1–9 pcs
$ 7.505
10–99 pcs
$ 7.110
100–999 pcs
$ 6.715
1,000–2,499 pcs
$ 6.320
≥2,500 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
226 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 7.90

LINK-PP LP21CC01203 SFP28 2x1 Cage Assembly With Integrated Connector Press-Fit With Inner Light Pipe EMI Spring Finger

LINK-PP Part Number LP21CC01203 Part Status Active
Product Type Cage Assembly with Integrated Connector Form Factor SFP28
Max Data Rate 28 Gbps Features EMI Shielded
Port Matrix Configuration 2×1 Number of Ports 2
Included Connector Yes Included Heat Sink No
Included Lightpipe Yes EMI Containment Feature Type Spring Fingers
Termination Press-Fit Mounting Type Through Hole, Right Angle
Tail Length (Inches/mm) 0.079/2.00 Recommended PCB Thickness (Inches/mm) -
Length (Inches/mm) 2.490/63.25 Width (Inches/mm) 0.591/15.00 (REF)
Height (Inches/mm) 1.014/25.75 Cage Material Stainless Steel
Contact Plating Gold Cage Plating Nickel
Operating Temperature Range -40 to +85°C Packaging Tray

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP21CC01203 REVB.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Around 44N for two ports at roughly 22N each. That is within reach of a hand press if it has a flat ram and you use a support plate, but a pneumatic press gives a more consistent result. Hand pressing without a ram tilts the part and bends the leading tail row. by LINK-PP Technical Support
  • A:
    It needs an LED behind the port on the same side as the cage, and the pipe routes the light to the bezel opening. You do not need a strip board, but you do need the LEDs placed to match the pipe positions on the cage drawing. Laying out from a photo will put you about 2mm off. by LINK-PP Technical Support
  • A:
    25.75mm against 25.53mm, so about 0.22mm. It sounds trivial but it is enough to change gasket compression on a lid that was designed tight. Check the clearance if you are substituting this part into an existing chassis. by LINK-PP Technical Support
  • A:
    Yes. SFP28 cages accept SFP+ modules mechanically and electrically and will run them at 10G. The reverse is the problem: an SFP+ cage running a 25G module is not characterised, so always size the cage for the highest rate you plan to deploy. by LINK-PP Technical Support

Customer Reviews

  • 5

    20 Reviews

  • 5 Stars
    95%
    4 Stars
    5%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (20)
No data
T***p
France
Verified Purchase
5.0
2026-11-15
Press fit on 25G is unforgiving, so we used the recommended hole size and a flat backplane and pressed both cages with one tool. The inner light pipe lines up with the panel window and the two ports have been stable at 25G into a switch with no link flap at 70 ℃ case temperature.
C***r
Hungary
Verified Purchase
5.0
2026-10-21
We compared this with an SFP+ 2x1 cage for the same 25G design. The SFP+ part was cheaper and would probably have worked, but it is not characterised at 25G and the customer's qualification asks for a rated part. The price difference was small against the requalification risk.
E***t
Saudi Arabia
Verified Purchase
5.0
2026-07-03
Second lot matched the first on spacing and pipe alignment. We check both ports with a test module on every lot, because on a 2x1 a slightly twisted shell makes one port tight and the other loose.
E***n
South Africa
Verified Purchase
5.0
2026-06-10
One note: the inner pipe sits between the two ports, so your LED positions have to come from the cage drawing. We laid out from the drawing and the bezel fitted first time, but if you lay out from a photo you will be 2mm off and the pipe will look dim.
M***e
Switzerland
Verified Purchase
4.0
2026-05-03
Four stars because the page lists the part number field as lower case 'link-pp Part Number', which broke our BOM import script and cost an hour. The part is fine, the table label is not.
