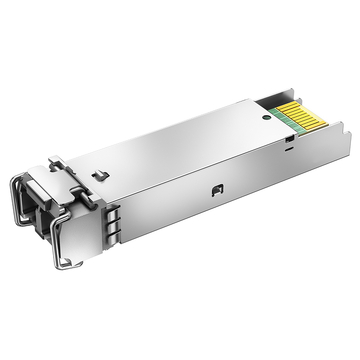

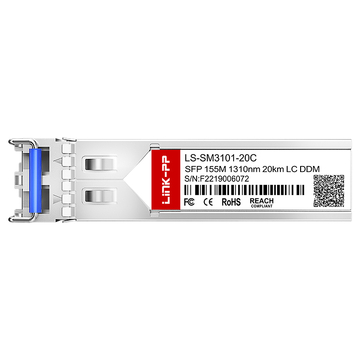

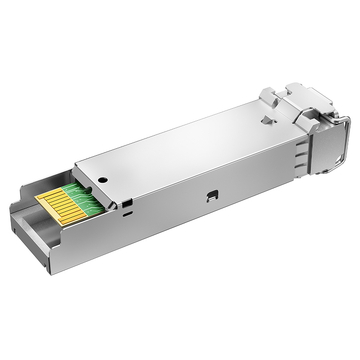

LINK-PP LS-SM3101-20C 155M SFP 1310nm 20km Duplex LC DOM SMF Optical Transceiver Module

Name: LINK-PP LS-SM3101-20C 155M SFP 1310nm 20km Duplex LC DOM SMF Optical Transceiver Module
Brand: LINK-PP
SKU: 183989
Price: 5.762 USD
Availability: InStock
Rating: 4.8 (16 reviews)

Product: LINK-PP LS-SM3101-20C 155M SFP 1310nm 20km Duplex LC DOM SMF Optical Transceiver Module
SKU: 183989
P/N: LS-SM3101-20C
Price: $ 6.7
Stock: 590 in Stock
Sold: 610
Product URL: https://www.l-p.com/products/478922.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

16 Reviews

4 Questions

610 Sold

$ 6.7

Free shipping. For wholesale pricing, please contact us directly.

Qty (pcs) :

Unit Price :

$ 6.7

100

$ 6.365

1000

$ 6.164

3000

$ 5.963

6000

$ 5.762

Manufacture: LINK-PP P/N: LS-SM3101-20C SKU: 183989

Compatible:: LINK-PP; FS; H3C

Compatible P/N:: LS-SM3101-10C | 10km; LS-SM3101-10I | 10km; LS-SM3101-15C | 15km; LS-SM3101-20C | 20km; LS-SM3101-20I | 20km; LS-SM3101-40C | 40km; LS-SM3101-40I | 40km; LS-SM5501-80C | 80km; LS-SM5501-80I | 80km; LS-SM5501-A2C | 120km; LS-SM5501-A2I | 120km

Shipping:

Free Shipping

to United States via FedEx

Estimated delivery time : 3-10 days.

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Specifications
Features
Certification
Testing
Shipping
Usage
Support
Assurance
Comparison
Specification
Matching Products
Download
Q&A
Customer Reviews

LINK-PP LS-SM3101-20C 155M SFP Specifications

LS-SM3101-20C constitutes a sophisticated 155M SFP single-mode optical transceiver, leveraging the precise synergy of a 1310nm FP laser and a PIN photodetector to facilitate 20km transmission reach while maintaining operational consistency across a 0°C to 70°C temperature spectrum.

LINK-PP Part Number	LS-SM3101-20C	Vendor Name	LINK-PP
Form Factor	SFP	Max Data Rate	155Mbps
Wavelength	1310nm	Max Cable Distance	20km
Connector	Duplex LC	Media	SMF
Transmitter Type	FP	Receiver Type	PIN
TX Power	-14 to -8dBm	RX Power	-32 to -6dBm
Receiver Sensitivity	-32dBm	DOM Support	Yes
Operating Temperature Range	0 to 70°C	Protocols	IEEE802.3ab, GR-468, MSA Compliant

Key Features of LINK-PP LS-SM3101-20C 155M SFP

LINK-PP LS-SM3101-20C represents a versatile 155M SFP optical transceiver module designed to deliver stable connectivity over a 20km transmission distance. This module integrates a duplex LC interface and Digital Optical Monitoring (DOM) to ensure reliable real-time tracking of critical operating metrics. It serves as a compliant and efficient solution for optimizing localized network infrastructure and standard fast ethernet links.

LINK-PP LS-SM3101-20C 155M SFP Optical Module

This module fully complies with the 100BASE-LX standard, providing a seamless integration path for legacy platforms requiring structured hardware configurations. Built in strict adherence to the SFP Multi-Source Agreement (MSA), it guarantees comprehensive hardware compatibility across diverse vendor platforms. Additionally, it supports standard SFF-8472 digital diagnostics functions to facilitate regular system updates and proactive maintenance.

LS-SM3101-20C: 155 Mbps Connectivity for Legacy Telecom Backhaul

Operating at a designated data rate of 155Mbps, this transceiver provides the exact bandwidth required to sustain standard Fast Ethernet and specialized telecommunications backhaul interfaces. It maintains consistent data throughput across legacy network frameworks without introducing unnecessary power or hardware overhead. This specific data profile makes it ideal for utility grids and older transport networks that rely on dedicated low-speed aggregation.

LS-SM3101-20C Module with 1310nm Wavelength

The module utilizes a specialized 1310nm optical window to achieve an optimal balance between signal attenuation and dispersion characteristics. This mainstream wavelength choice ensures wide compatibility with standard optical test sets and existing patch panels. By centering the signal path at 1310nm, the system minimizes internal losses to safeguard overall link margins.

LS-SM3101-20C Module Supporting 20km Transmission

Engineered to extend connectivity across expanded regional architectures, this transceiver easily bridges distances up to 20km. The 20km reach allows network engineers to establish dependable connections between distant campus buildings or edge nodes. It provides sufficient optical budget to handle common link challenges such as attenuation and aging fiber infrastructure.

LS-SM3101-20C Module with Duplex LC Interface

Featuring an industry-standard duplex LC connector layout, this interface enables swift, reliable connections and excellent structural density in crowded patch panels. The physical design ensures low insertion loss and secure physical contact for consistent signal transmission. Its compact footprint simplifies cable routing and fits effortlessly into dense network environments.

LS-SM3101-20C Module with DOM for Real-Time Monitoring

Equipped with built-in Digital Optical Monitoring (DOM), the module allows network administrators to trace laser telemetry data without taking the link offline. This function tracks operational parameters like internal temperature, supply voltage, and received optical power levels. These actionable insights help technical teams detect faults early and prevent sudden system downtime.

LINK-PP LS-SM3101-20C 155M SFP Certification

LINK-PP LS-SM3101-20C 155M SFP module adheres to strict international regulatory frameworks, including ISO 9001, CE, RoHS, and FCC standards to ensure hardware safety, manufacturing quality, and environmental compliance.

LS-SM3101-20C Quality Testing Program

Every module undergoes rigorous factory testing protocols to verify optical performance, signal integrity, and structural reliability before shipment.

LS-SM3101-20C Quality Certifications

These recognized standard credentials ensure that the transceiver meets uniform production rules and industry safety mandates for global network deployments.

LS-SM3101-20C Certified for Reliable Host-Device Compatibility

The module is strictly verified across multiple hardware platforms to guarantee plug-and-play operation and seamless communication with diverse network switches.

Rigorous Testing Ensures Reliable SFP Performance

Every module undergoes thorough evaluation to guarantee stable data transmission, and you can explore our complete protocols through the LINK-PP Test Support Center.

Rigorous Testing Ensures Reliable Transceiver Performance

Optical Spectrum Test

Verify central wavelength accuracy and spectral width parameters.

Eye Pattern Test

Analyze signal quality and optical transmitter wave shapes.

Bit Error Rate Test

Measure data transmission accuracy across varying link budgets.

Temperature Test

Confirm structural reliability under diverse thermal operating conditions.

Product Shipping for LINK-PP LS-SM3101-20C 155M SFP

We provide secure global transit and optimized order handling for every module. Our efficient logistics network ensures safe, timely arrival.

Anti-Static Protective Packaging

Shield fragile optical components from damaging electrostatic discharge during handling.

Shock-Resistant Transport Protection

Safeguard optical transceivers against physical impacts during long-distance transit.

Fast Order Processing and Dispatch

Accelerate shipment preparation to minimize delivery waiting times for customers.

Global Logistics and International Delivery

Transport items securely across global regions using dependable shipping networks.

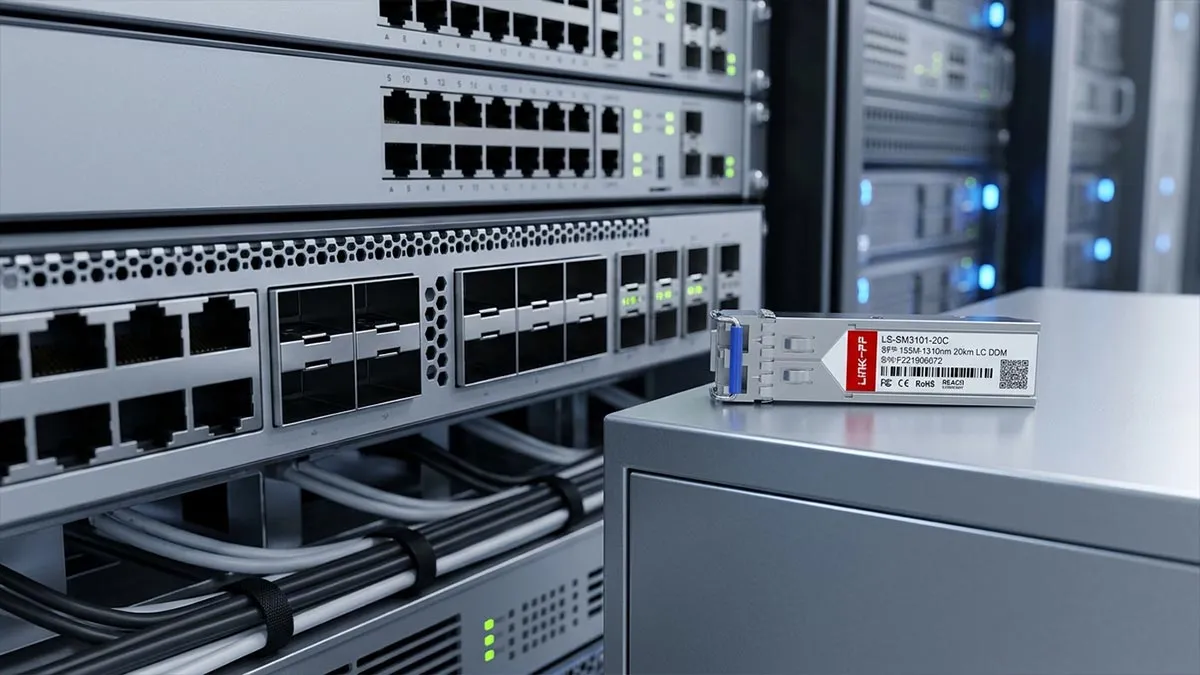

LINK-PP LS-SM3101-20C 155M SFP Usage Demonstration

Designed for commercial network layouts, the LS-SM3101-20C 155M SFP transceiver establishes secure, long-range links across smart grid infrastructures and campus networks. Users can quickly insert this hot-pluggable transceiver module into compatible host ports to drive automated control systems, legacy backhaul architectures, and enterprise fiber networks.

LS-SM3101-20C Technical Support

LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.

Pre-Sales Technical Consultation

Professional guidance to help you select the optimal LS-SM3101-20C module for your network design and application needs.

Compatibility Verification Support

Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.

Deployment & Installation Assistance

Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.

Long-Term Technical Assurance

Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.

LINK-PP LS-SM3101-20C 155M SFP After-Sales Assurance

LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.

15-day no-reason return and refund

Free replacement for dead-on-arrival (DOA) or defective items within the initial period

Free repair services for manufacturing defects throughout the warranty period

Warranty exclusions and conditions apply

Model Comparison Table

	Current Model LS-SM3101-20C	LS-SM3101-15C	LS-SM3101-10C	LS-SM3101-40I	LS-SM5501-80C	LS-MM8501-S5C

Compatible	LINK-PP	LINK-PP	LINK-PP	LINK-PP	LINK-PP	LINK-PP
Data Rate (Max)	155Mbps	155Mbps	155Mbps	155Mbps	155Mbps	155Mbps
Wavelength	1310nm	1310nm	1310nm	1310nm	1550nm	850nm
Connector	Duplex LC	Duplex LC	Duplex LC	Duplex LC	Duplex LC	Duplex LC
Cable Distance (Max)	20km	15km	10km	40km	80km	550m
Cable Type	SMF	SMF	SMF	SMF	SMF	MMF
TX Power	-14 to -8dBm	-14 to -8dBm	-14 to -8dBm	-14 to -8dBm	-14 to -8dBm	-14 to -8dBm
Receiver Sensitivity	-32dBm	-32dBm	-32dBm	-32dBm	< -32dBm	-23dBm
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	-40 to +85°C	0 to 70°C	0 to 70°C
Form Factor	SFP	SFP	SFP	SFP	SFP	SFP
Transmitter Type	FP	DFB	FP	DFB	DFB	VSCEL
Receiver Type	PIN	PIN	PIN	PIN	PIN	PIN
DOM Support	Yes	Yes		Yes	Yes
Protocols	IEEE802.3ab, GR-468, MSA Compliant	GR-468, MSA Compliant	IEEE802.3ab, GR-468, MSA Compliant	GR-468, MSA Compliant	GR-468, MSA Compliant	MSA Compliant

Action

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LS-SM3101-20C.pdf

Questions & Answers
Ask a Question

No data

Q: What is the maximum physical distance this 155M single-mode SFP module can reliably support? By F***n on 2026-02-22

A: It is engineered to maintain a clean link budget over single-mode fiber spans up to 20km. By admin on 2026-02-23
Q: Will this commercial-grade SFP module overheat if deployed in a fully loaded, high-density top-of-rack switch? By C***w on 2026-01-18

A: No, it features low power dissipation properties, ensuring it stays well within thermal limits under full continuous traffic loads. By admin on 2026-01-19
Q: Does this 100BASE-LX SFP transceiver comply with the SFF-8472 standard for Digital Optical Monitoring? By G***y on 2025-12-30

A: Yes, it features full SFF-8472 compliance, giving you real-time access to critical operating metrics. By admin on 2025-12-31
Q: Do these 155M SFP modules come with a warranty for enterprise deployments? By J***n on 2025-12-05

A: Yes, all our commercial-grade optical transceivers are backed by a comprehensive 1-3 years of hardware warranty. By admin on 2025-12-06
