Is the 1550nm wavelength sensitive to macrobending losses if the fiber patch cords are tightly routed in high-density management trays?

Yes, 1550nm light is more vulnerable to bending losses than 1310nm, so you must maintain the standard minimum bend radius for your SMF cabling.

If our indoor server room suffers a cooling failure, what is the maximum safe storage/non-operational thermal limit for this module?

The transceiver can withstand non-operational ambient warehouse exposure ranging from -40°C up to +85°C without experiencing degradation of its internal optical components.

Can the built-in DDM track sudden environmental voltage drops that might threaten link stability in remote field offices?

Yes, the module constantly samples host supply voltage alongside optical metrics, flagging anomalies before physical link loss occurs.

Does the digital optical diagnostic interface require a separate polling frequency, or does it stream metrics continuously?

The DOM parameters are continuously updated on the transceiver's internal registry, allowing your network monitoring software to poll the physical data in real time.

Can this module successfully overcome an older 65km single-mode run that has multiple bad splices and high patch panel loss?

It depends on your total link budget; this module offers a robust power budget designed specifically to handle the attenuation of long-haul single-mode lines.

Breadcrumb: Home; Products; Optics Transceivers | SFP Modules; 1/2/4G Transceiver Modules; 100M SFP; 181784

Click to open expanded view

LINK-PP LS-SM5501-80C 155M SFP 1550nm 80km Duplex LC DOM SMF Optical Transceiver Module

Name: LINK-PP LS-SM5501-80C 155M SFP 1550nm 80km Duplex LC DOM SMF Optical Transceiver Module
Brand: LINK-PP
SKU: 181784
Price: 15.05 USD
Availability: InStock
Rating: 4.9 (36 reviews)

Product: LINK-PP LS-SM5501-80C 155M SFP 1550nm 80km Duplex LC DOM SMF Optical Transceiver Module
SKU: 181784
P/N: LS-SM5501-80C
Price: $ 17.5
Stock: 2900 in Stock
Sold: 600
Product URL: https://www.l-p.com/products/476884.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

36 Reviews

5 Questions

600 Sold

$ 17.5

Free shipping. For wholesale pricing, please contact us directly.

Qty (pcs) :

Unit Price :

$ 17.5

100

$ 16.625

1000

$ 16.1

3000

$ 15.575

6000

$ 15.05

Manufacture: LINK-PP P/N: LS-SM5501-80C SKU: 181784

Compatible:: Cisco; LINK-PP; Avaya; Brocade; DELL; Extreme; H3C; HPE H3C; HW; Juniper

Compatible P/N:: LS-SM3101-10C | 10km; LS-SM3101-10I | 10km; LS-SM3101-15C | 15km; LS-SM3101-20C | 20km; LS-SM3101-20I | 20km; LS-SM3101-40C | 40km; LS-SM3101-40I | 40km; LS-SM5501-80C | 80km; LS-SM5501-80I | 80km; LS-SM5501-A2C | 120km; LS-SM5501-A2I | 120km

Shipping:

Free Shipping

to United States via FedEx

Estimated delivery time : 3-10 days.

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Specifications
Features
Certification
Testing
Shipping
Usage
Support
Assurance
Comparison
Specification
Matching Products
Download
Q&A
Customer Reviews

LINK-PP LS-SM5501-80C 155M SFP Specifications

LS-SM5501-80C drives long-haul connectivity as a hot-pluggable, commercial-grade 155M SFP single-mode optical module that leverages a 1550nm wavelength to sustain robust Fibre Channel and Ethernet links across an impressive 80km span.

LINK-PP Part Number	LS-SM5501-80C	Vendor Name	LINK-PP
Form Factor	SFP	Max Data Rate	155Mbps
Wavelength	1550nm	Max Cable Distance	80km
Connector	Duplex LC	Media	SMF
Transmitter Type	DFB	Receiver Type	PIN
TX Power	-14 to -8dBm	RX Power	-32 to -6dBm
Receiver Sensitivity	< -32dBm	DOM Support	Yes
Operating Temperature Range	0 to 70°C	Protocols	GR-468, MSA Compliant

Key Features of LINK-PP LS-SM5501-80C 155M SFP

LINK-PP LS-SM5501-80C is a commercial-grade single-mode transceiver built to secure dependable long-range data links. This hot-pluggable module unifies a 1550nm optics core, a duplex LC port, and onboard telemetry to span long distances without signal degradation. It serves as an efficient hardware solution for standardizing telecommunication and storage network expansions.

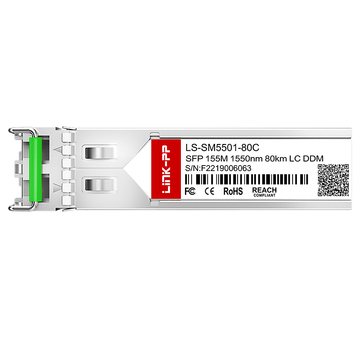

LINK-PP LS-SM5501-80C 155M SFP Optical Module

This variant incorporates a 1550nm DFB laser that serves as a highly stable, low-noise light source for single-mode fiber infrastructure. Built in strict compliance with SFP MSA and SFF-8472 guidelines, it ensures instant plug-and-play compatibility across diverse host platforms. The specialized transmitter optics prevent pulse broadening to maintain clean eye diagrams over extended runs.

LS-SM5501-80C: 155 Mbps Connectivity for Fiber Channel Infrastructure

This module delivers a steady 155Mbps data rate, tailored specifically to match the timing constraints of legacy storage architectures. It provides an uninterrupted, fixed-bandwidth pipeline that keeps enterprise Fibre Channel setups perfectly synchronized. This reliable bit rate prevents latency issues and buffer management errors in older-generation storage networks.

LS-SM5501-80C Module with 1550nm Wavelength

By operating in the 1550nm spectral band, the transceiver takes advantage of the absolute lowest attenuation point found in standard single-mode glass. This selection drastically cuts down on optical power loss per kilometer compared to shorter wavelengths. It allows clean, unamplified light propagation across complex regional fiber topologies.

LS-SM5501-80C Module Supporting 80km Transmission

Designed for long-haul operations, this device features a robust optical power budget engineered to bridge distances up to 80km. It eliminates the need for expensive intermediate repeaters or signal regenerators along the fiber path. This extensive reach makes it a cost-effective choice for linking distant corporate branches or rural sub-stations.

LS-SM5501-80C Module with Duplex LC Interface

The housing features a standardized duplex LC receptacle that establishes a firm, click-to-lock connection with matching fiber patch cables. Its precise mechanical alignment minimizes insertion loss and back-reflection at the optical mating plane. Additionally, the small form-factor design helps conserve valuable faceplate space on high-density switches.

LS-SM5501-80C Module with DOM for Real-Time Monitoring

Onboard Digital Optical Monitoring (DOM) gives technicians a continuous window into critical transceiver metrics. Through the host software, users can immediately view live operating temperatures, supply voltage, and precise laser power levels. This proactive diagnostic tool simplifies network troubleshooting and helps prevent unexpected link downtime.

LINK-PP LS-SM5501-80C 155M SFP Certification

The LINK-PP LS-SM5501-80C is manufactured under strict international standards and carries full ISO 9001, CE, RoHS, and FCC certifications to guarantee safety, quality, and environmental compliance.

LS-SM5501-80C Quality Testing Program

Each transceiver undergoes rigorous optical and environmental stress testing to ensure flawless performance before deployment.

LS-SM5501-80C Quality Certifications

These industry-standard compliance credentials verify that the module meets global safety requirements and environmental protection laws for electronic hardware.

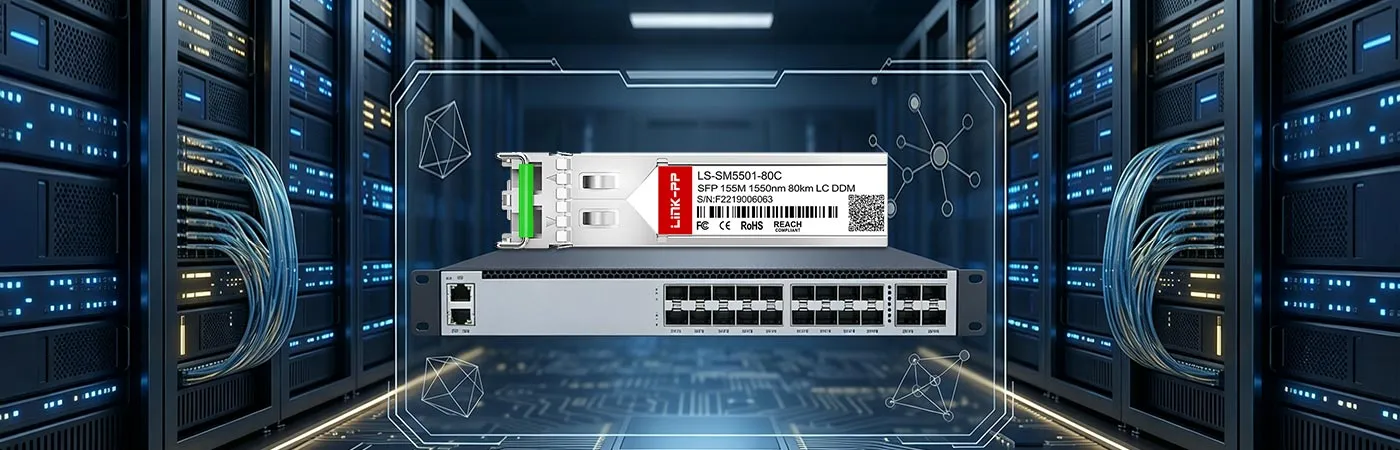

LS-SM5501-80C Certified for Reliable Host-Device Compatibility

Comprehensive firmware validation ensures the module is fully recognized and works seamlessly across a wide range of standard enterprise networking switches.

Rigorous Testing Ensures Reliable SFP Performance

We subject every transceiver to rigorous hardware evaluation to guarantee absolute link stability, with full diagnostic methodologies detailed on the LINK-PP Test Support Center.

Rigorous Testing Ensures Reliable Transceiver Performance

Optical Spectrum Test

Verify precise central wavelengths to prevent cross-channel interference.

Eye Pattern Test

Evaluate transmitter signal distortion to confirm optimal waveform quality.

Bit Error Rate Test

Validate packet delivery accuracy under full line-rate stress.

Temperature Test

Ensure consistent hardware performance during variable thermal conditions.

Product Shipping for LINK-PP LS-SM5501-80C 155M SFP

We provide secure global logistics and rapid order turnaround, guaranteeing your optical transceivers arrive safely and on time.

Anti-Static Protective Packaging

Shield delicate module circuitry from dangerous electrostatic discharge.

Shock-Resistant Transport Protection

Safeguard optical alignments against physical vibrations during transit.

Fast Order Processing and Dispatch

Accelerate warehouse fulfillment to minimize your network deployment delay.

Global Logistics and International Delivery

Ship items worldwide through reliable international express freight carriers.

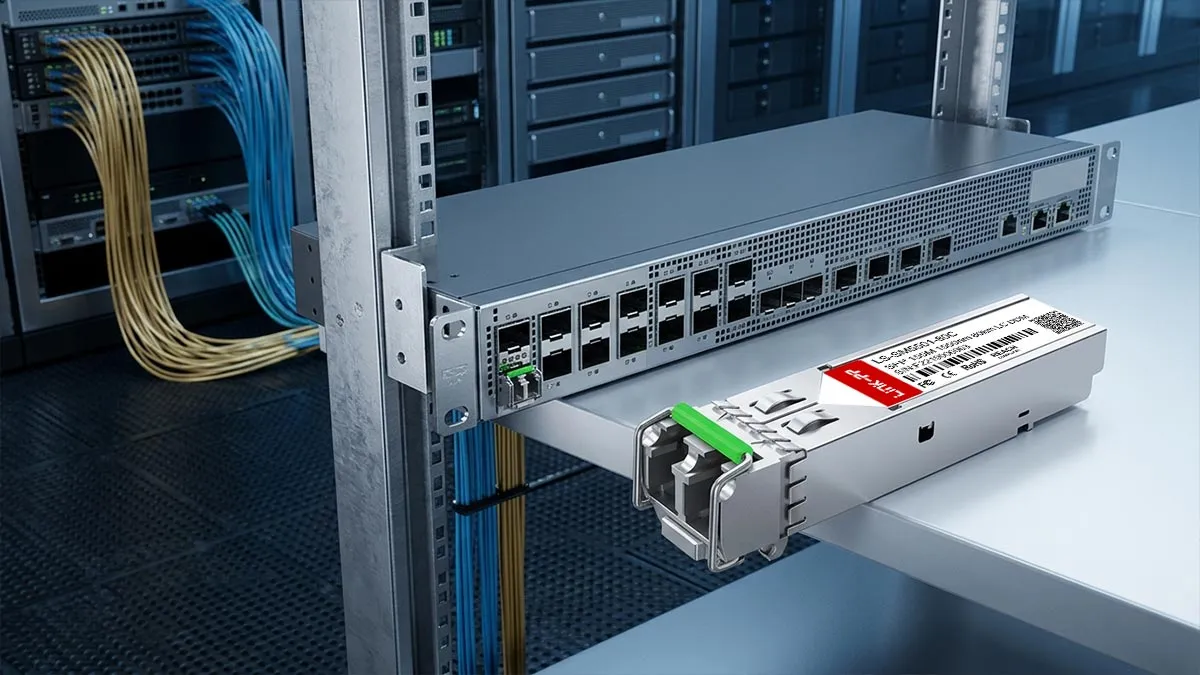

LINK-PP LS-SM5501-80C 155M SFP Usage Demonstration

Simply plug the LS-SM5501-80C hot-pluggable 155M optical module into an active SFP slot for instant setup. It is optimized for long-haul Fiber Channel networks and legacy telecom backhauls, providing dependable data transmission across 80km spans in enterprise data centers and regional communication hubs.

LS-SM5501-80C Technical Support

LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.

Pre-Sales Technical Consultation

Professional guidance to help you select the optimal LS-SM5501-80C module for your network design and application needs.

Compatibility Verification Support

Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.

Deployment & Installation Assistance

Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.

Long-Term Technical Assurance

Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.

LINK-PP LS-SM5501-80C 155M SFP After-Sales Assurance

LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.

15-day no-reason return and refund

Free replacement for dead-on-arrival (DOA) or defective items within the initial period

Free repair services for manufacturing defects throughout the warranty period

Warranty exclusions and conditions apply

Model Comparison Table

	Current Model LS-SM5501-80C	LS-SM3101-15C	LS-SM3101-20C	LS-SM3101-10C	LS-SM5501-A2C	LS-SM3101-40C

Compatible	LINK-PP	LINK-PP	LINK-PP	LINK-PP	LINK-PP	LINK-PP
Data Rate (Max)	155Mbps	155Mbps	155Mbps	155Mbps	155Mbps	155Mbps
Wavelength	1550nm	1310nm	1310nm	1310nm	1550nm	1310nm
Connector	Duplex LC	Duplex LC	Duplex LC	Duplex LC	Duplex LC	Duplex LC
Cable Distance (Max)	80km	15km	20km	10km	120km	40km
Cable Type	SMF	SMF	SMF	SMF	SMF	SMF
TX Power	-14 to -8dBm	-14 to -8dBm	-14 to -8dBm	-14 to -8dBm	-2 to +3dBm	-14 to -8dBm
Receiver Sensitivity	< -32dBm	-32dBm	-32dBm	-32dBm	-34 to -6dBm	-32 to -6dBm
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C
Form Factor	SFP	SFP	SFP	SFP	SFP	SFP
Transmitter Type	DFB	DFB	FP	FP	DFB	DFB 1310nm
Receiver Type	PIN	PIN	PIN	PIN	PIN
DOM Support	Yes	Yes	Yes		Yes	Yes
Protocols	GR-468, MSA Compliant	GR-468, MSA Compliant	IEEE802.3ab, GR-468, MSA Compliant	IEEE802.3ab, GR-468, MSA Compliant	GR-468, MSA Compliant	GR-468, MSA Compliant

Action

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LS-SM5501-80C.pdf

Questions & Answers
Ask a Question

No data

Q: Is the 1550nm wavelength sensitive to macrobending losses if the fiber patch cords are tightly routed in high-density management trays? By I***k on 2026-03-01

A: Yes, 1550nm light is more vulnerable to bending losses than 1310nm, so you must maintain the standard minimum bend radius for your SMF cabling. By admin on 2026-03-02
Q: If our indoor server room suffers a cooling failure, what is the maximum safe storage/non-operational thermal limit for this module? By L***n on 2026-01-29

A: The transceiver can withstand non-operational ambient warehouse exposure ranging from -40°C up to +85°C without experiencing degradation of its internal optical components. By admin on 2026-01-30
Q: Can the built-in DDM track sudden environmental voltage drops that might threaten link stability in remote field offices? By H***e on 2025-12-09

A: Yes, the module constantly samples host supply voltage alongside optical metrics, flagging anomalies before physical link loss occurs. By admin on 2025-12-10
Q: Does the digital optical diagnostic interface require a separate polling frequency, or does it stream metrics continuously? By K***e on 2025-11-11

A: The DOM parameters are continuously updated on the transceiver's internal registry, allowing your network monitoring software to poll the physical data in real time. By admin on 2025-11-12
Q: Can this module successfully overcome an older 65km single-mode run that has multiple bad splices and high patch panel loss? By J***k on 2025-08-25

A: It depends on your total link budget; this module offers a robust power budget designed specifically to handle the attenuation of long-haul single-mode lines. By admin on 2025-08-26
