belfuse l829-1l1t-47 compatible lpjk70409a8nlv 100 base-t rj45 mag jack low profile tab up green green&yellow leds
Click to open expanded view

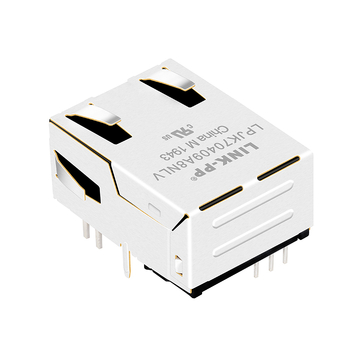

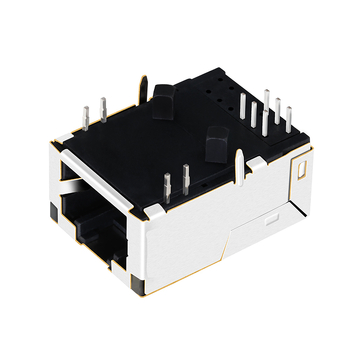

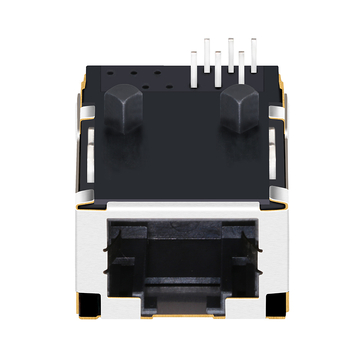

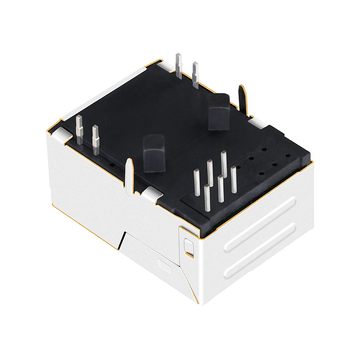

Belfuse L829-1L1T-47 Compatible LPJK70409A8NLV 100 Base-T RJ45 Mag jack Low Profile Tab Up Green/Green&Yellow Leds

Product summary

Product
Belfuse L829-1L1T-47 Compatible LPJK70409A8NLV 100 Base-T RJ45 Mag jack Low Profile Tab Up Green/Green&Yellow Leds
SKU
174067
P/N
LPJK70409A8NLV
Price
$ 4.07
Stock
3998 in Stock
Sold
12.9K
Unit price $ 4.07
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJK70409A8NLVSKU: 174067

Compatible with Belfuse L829-1L1T-47DatasheetAll downloads

Compatible P/N:
L829-1L1T-47
Volume pricing Online tiers · larger qty or custom price on request
$ 4.070
1–99 pcs
$ 3.336
100–599 pcs
$ 2.929
600–1,199 pcs
$ 2.237
1,200–5,999 pcs
$ 1.912
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
3998 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 4.07
Packaging Details
50 pcs
1200 pcs
Tray
40×32×33 cm
0.01 kg
12.3 kg

Belfuse L829-1L1T-47 Compatible LINK-PP LPJK70409A8NLV 10/100 Base-T Low Profile RJ45 Mag jack For New Energy ( Height 11.30mm,Green/Green&Yellow LED,Tab Up)


The LPJK70409A8NLV supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as New Energy, Game Controller, Router .


LINK-PP Part Number:
LPJK70409A8NLV Belfuse Part Number
L829-1L1T-47
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UpCores per Port
5
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Green&Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.445/11.30Package Length (Inches/mm)

0.957/24.30

Package Width (Inches/mm)
0.701/17.80
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJK70409A8NLV.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    It can, since the set only pulls a compressed stream from the local server. Our peak is about 40 megabit on a busy evening. The port has never been the limit, even on a busy evening. by LINK-PP Technical Support
  • A:
    It does, because the extra width is in the mounting flange and not the mouth. Our cover has a shallow step that takes it. We checked the first moulding with a gauge, and it cleared by 6 mm. by LINK-PP Technical Support
  • A:
    One green is link and the green with yellow blinks with traffic. We keep the pair on the upper edge so it reads through the rear vent. Users see it when they look behind the set. by LINK-PP Technical Support
  • A:
    The set is only 26 mm deep at the connector bay. At 11.30 mm tall, this body leaves room for the cable bend. The latch up keeps the clip inside the recess. Our moulding did not need a new pocket. by LINK-PP Technical Support

Customer Reviews

  • 5

    58 Reviews

  • 5 Stars
    97%
    4 Stars
    3%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (58)
No data
E***h
Romania
Verified Purchase
5.0
2026-11-15
24.30 mm of length cleared the relay row on the panel. Tails drop in without a jumper. Every unit passed the continuity check first time :-)
R***p
Verified Purchase
5.0
2026-07-17
This one is a 100 Base-T part, so I did not expect it to train at gigabit and it does not. On the intercom panel every link settled at 100 megabit and stayed there. The 11.30 mm body slid under the lid. 8 panels built, no rework on the mouth. Both rows negotiated as described.
I***d
Verified Purchase
4.0
2025-12-10
The carton had a scuffed corner and one jack sat loose, but the shell was fine. The green window beside the green/yellow one reads clearly at 100 megabit.
M***g
Verified Purchase
5.0
2024-11-18
0 ℃ to 70 ℃ covers the intercom cabinet. No surprises on the contact count.
E***n
Verified Purchase
5.0
2024-06-23
8p8c mouth, 5 cores inside. It cleared hipot first try.
