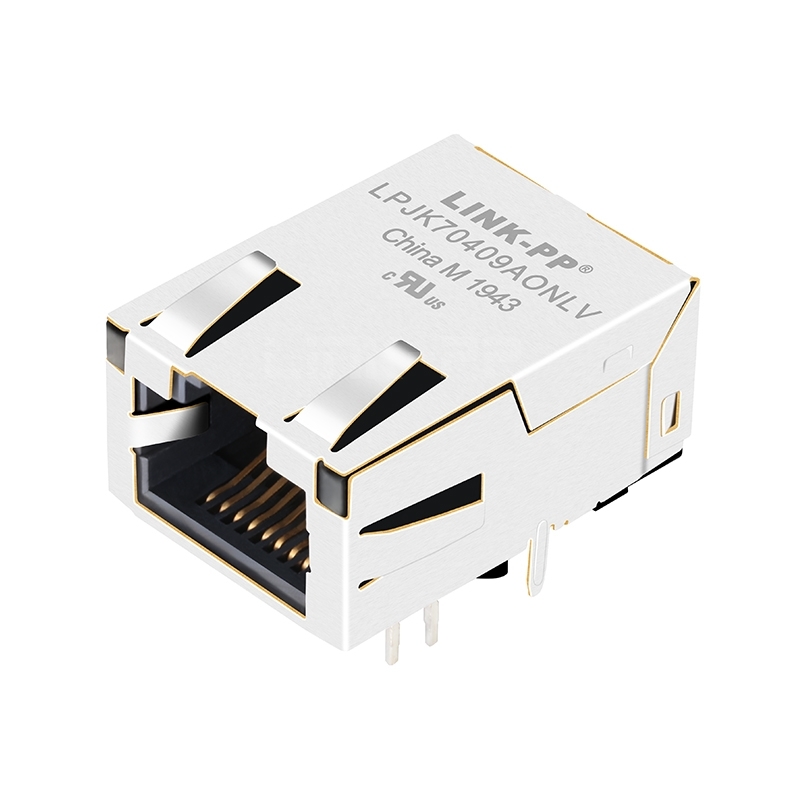

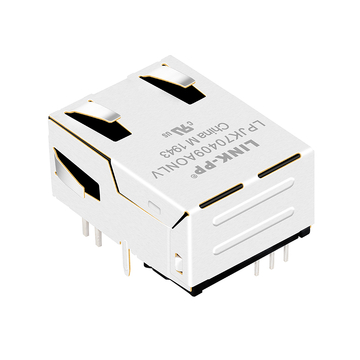

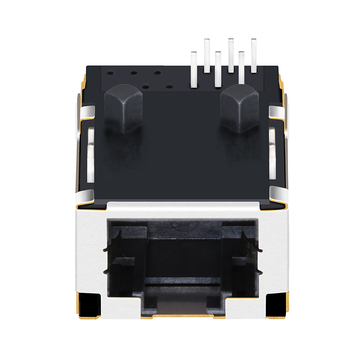

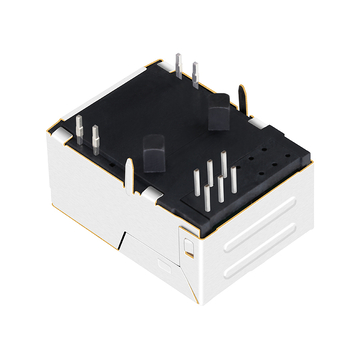

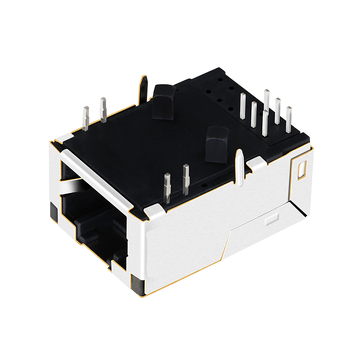

Belfuse L836-1X1T-47 Compatible LPJK70409AONLV 100 Base-T Low Profile RJ45 Mag jack Tab Up Orange&Green/Yellow Leds

Name: Belfuse L836-1X1T-47 Compatible LPJK70409AONLV 100 Base-T Low Profile RJ45 Mag jack Tab Up Orange&Green/Yellow Leds
Brand: LINK-PP
SKU: 173931
Price: 4.07 USD
Availability: InStock
Rating: 5 (26 reviews)

Product: Belfuse L836-1X1T-47 Compatible LPJK70409AONLV 100 Base-T Low Profile RJ45 Mag jack Tab Up Orange&Green/Yellow Leds
SKU: 173931
P/N: LPJK70409AONLV
Price: $ 4.07
Stock: 2999 in Stock
Sold: 49.8K
Product URL: https://www.l-p.com/products/471407.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

26 Reviews

0 Questions

49.8K Sold

$ 4.07

Free shipping over $600. For wholesale pricing, please contact us directly.

Qty (pcs) :

Unit Price :

$ 4.068

100

$ 3.336

600

$ 2.929

1200

$ 2.238

6000

$ 1.912

Manufacture: LINK-PP P/N: LPJK70409AONLV SKU: 173931

Compatible:: LINK-PP; Belfuse

Compatible P/N:: L836-1X1T-47

Shipping:

To Be Negotiated

$ 29.47

Can't deliver

to United States via FedEx IP

Estimated delivery time : 3 - 6 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Stock:

2999 in Stock .

Quantity:

Total Price:

$ 4.07

Packaging Details:

N.W/pcs: 0.01kg
Package: Tray
SPQ: 50pcs
Qty/carton: 1200pcs
Carton size: 40*32*33cm
G.W/carton: 12.3kg

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

Belfuse L836-1X1T-47 Compatible LINK-PP LPJK70409AONLV 10/100 Base-T Low-Profile RJ45 Mag jack For New Energy ( Height 11.30mm,Orange&Green/Yellow LED,Tab Up)

The LPJK70409A98NLV supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as New Energy, Game Controller, Router .

LINK-PP Part Number:	LPJK70409AONLV	Belfuse Part Number	L836-1X1T-47
Part Status	Active	Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port	Speed	10/100 Base-T
Latch	Up	Cores per Port	5
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Orange&Green/Yellow
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.445/11.30	Package Length (Inches/mm)	0.957/24.30
Package Width (Inches/mm)	0.701/17.80	Temperature	0℃ TO 70℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

100 Base-T Low Profile RJ45 Mag jack
