belfuse l829-1xx1-91 compatible lpjk7001bonl 100 base-t rj45 connector low profile tab up with yellow&green yellow leds
Click to open expanded view

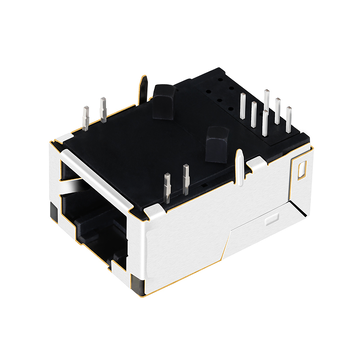

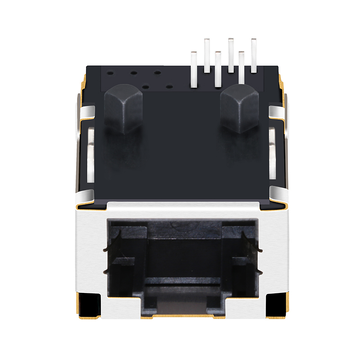

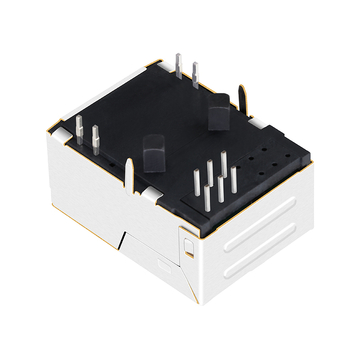

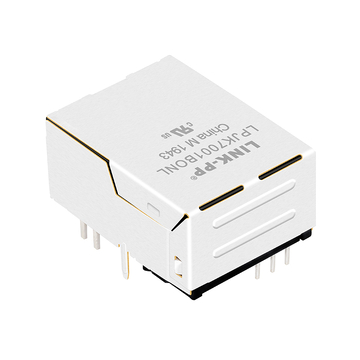

Belfuse L829-1XX1-91 Compatible LPJK7001BONL 100 Base-T RJ45 Connector Low Profile Tab Up With Yellow&Green/Yellow Leds

Product summary

Product
Belfuse L829-1XX1-91 Compatible LPJK7001BONL 100 Base-T RJ45 Connector Low Profile Tab Up With Yellow&Green/Yellow Leds
SKU
173852
P/N
LPJK7001BONL
Price
$ 3.97
Stock
5523 in Stock
Sold
7.1K
Unit price $ 3.97
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJK7001BONLSKU: 173852

Compatible with Belfuse L829-1XX1-91DatasheetAll downloads

Compatible P/N:
L829-1XX1-91
Volume pricing Online tiers · larger qty or custom price on request
$ 3.970
1–99 pcs
$ 3.254
100–599 pcs
$ 2.857
600–1,199 pcs
$ 2.182
1,200–5,999 pcs
$ 1.865
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
5523 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 3.97
Packaging Details
50 pcs
1200 pcs
Tray
40×32×33 cm
0.01 kg
12.3 kg

Belfuse L829-1XX1-91 Compatible LINK-PP LPJK7001BONL 10/100 Base-T Low Profile RJ45 Connector For New Energy ( Height 11.30mm,Yellow&Green/Yellow LED,Tab Up)


The LPJK7001BONL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as New Energy, Game Controller, Router .


LINK-PP Part Number:
LPJK7001BONL Belfuse Part Number
L829-1XX1-91
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UpCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Yellow&Green/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.445/11.30Package Length (Inches/mm)

0.957/24.30

Package Width (Inches/mm)
0.701/17.80
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP
