belfuse 0826-1x4t-23-f compatible lpjg48831a71nl 1000 base-t rj45 1x4 port connectors with magnetics tab up green&yellow yellow leds
Click to open expanded view

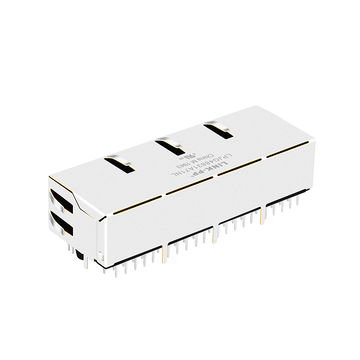

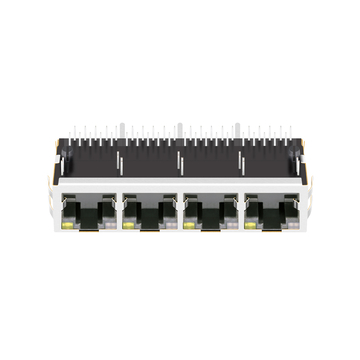

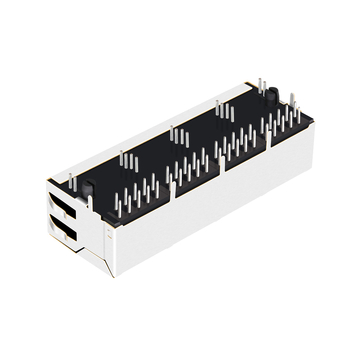

Belfuse 0826-1X4T-23-F Compatible LPJG48831A71NL 1000 Base-T RJ45 1x4 Port Connectors With Magnetics Tab Up Green&Yellow/Yellow Leds

Product summary

Product
Belfuse 0826-1X4T-23-F Compatible LPJG48831A71NL 1000 Base-T RJ45 1x4 Port Connectors With Magnetics Tab Up Green&Yellow/Yellow Leds
SKU
173094
P/N
LPJG48831A71NL
Price
$ 10.60
Stock
1588 in Stock
Sold
10K
Unit price $ 10.60
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJG48831A71NLSKU: 173094

Compatible with Belfuse 0826-1X4T-23-FDatasheetAll downloads

Compatible P/N:
0826-1X4T-23-F
Volume pricing Online tiers · larger qty or custom price on request
$ 10.600
1–99 pcs
$ 8.795
100–599 pcs
$ 7.523
600–1,199 pcs
$ 6.675
1,200–5,999 pcs
$ 5.934
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1588 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 20
Total Price:
$ 10.60
Packaging Details
20 pcs
400 pcs
Tray
37×30×30 cm
0.026 kg
10.7 kg

Belfuse 0826-1X4T-23-F Compatible LINK-PP LPJG48831A71NL 10/100/1000 Base-T RJ45 Module Connectors for Hard Disk Players and Internet Of things Gateways (1x4 Port,Tab Up,Green&Yellow/Yellow LED)


The LPJG48831A71NL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as VoIP Gateways, PoE Repeater,DVD and Webcams.


LINK-PP Part Number:
LPJG48831A71NL Belfuse Part Number
0826-1X4T-23-F
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
10p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x4 PortSpeed
10/100/1000 Base-T
Latch
UpCores per Port
12
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green&Yellow/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.535/13.60Package Length (Inches/mm)

1.00/25.40

Package Width (Inches/mm)
2.338/59.39
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJG48831A71NL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The release faces the top of the rack. A technician reaches it from above rather than through the front. Ours has a service gap above the row. Nothing has caught on the cable tray during a swap. by LINK-PP Technical Support
  • A:
    The body is 13.60 mm tall and 59.39 mm wide, so four ports sit in a thin strip. Ours clears a 1U front without a cutout change. The posts are on the drawing, which saved a measure. by LINK-PP Technical Support
  • A:
    A single wrapper runs the row with tabs down both sides, so all four share the bond. Ours ties it at the panel screws on both ends. Each mouth keeps its own clip, a clean swap. by LINK-PP Technical Support
  • A:
    One body gives four ports on a single drill pattern. The backplane stays tidy and the wiring is short. Ours feeds four line cards from one face. The row spans 59.39 mm across the panel. by LINK-PP Technical Support

Customer Reviews

  • 5

    76 Reviews

  • 5 Stars
    96%
    4 Stars
    4%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (76)
No data
J***n
Verified Purchase
5.0
2026-01-25
Rated 0℃ to 70℃ on a warm factory floor. The crimp sat within spec on all pairs.
O***n
Verified Purchase
5.0
2025-09-25
13.60 mm tall and 25.40 mm deep. It matched the sheet on pitch.
R***n
Verified Purchase
4.0
2025-02-04
The Andon panel arrived with a dented bezel, but four mouths sat in the one cutout and every port trained at gigabit. The packing held up through the trip.
R***n
Verified Purchase
5.0
2024-08-31
Four mouths in one row. No surprises on the contact count.
A***t
Verified Purchase
5.0
2024-06-10
Fingers held the panel. It cleared the chassis wall as expected.
