LPJD4726BDNL gigabit vertical rj45 jack with 1000 base-t magnetics yellow green leds
Click to open expanded view

LPJD4726BDNL Gigabit Vertical RJ45 Jack With 1000 Base-T Magnetics Yellow/Green Leds

Product summary

Product
LPJD4726BDNL Gigabit Vertical RJ45 Jack With 1000 Base-T Magnetics Yellow/Green Leds
SKU
172027
P/N
LPJD4726BDNL
Price
$ 4.98
Stock
1990 in Stock
Sold
9.8K
Unit price $ 4.98
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJD4726BDNLSKU: 172027

LINK-PP originalDatasheetAll downloads

Compatible:
Halo
LINK-PP
Compatible P/N:
LPJD4726BDNL
Volume pricing Online tiers · larger qty or custom price on request
$ 4.980
1–99 pcs
$ 4.085
100–599 pcs
$ 3.587
600–1,199 pcs
$ 2.740
1,200–5,999 pcs
$ 2.342
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1990 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 4.98
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.008 kg
9 kg

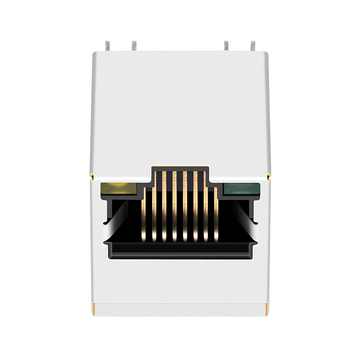

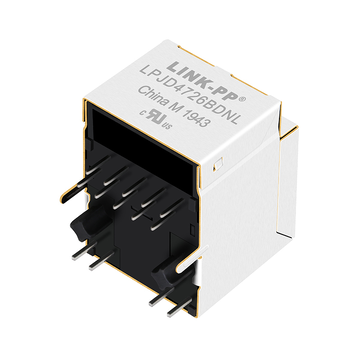

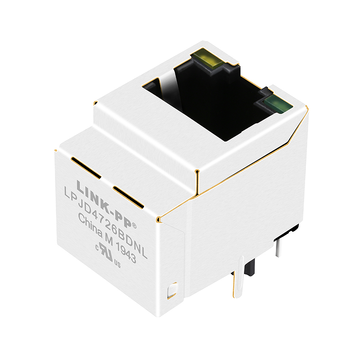

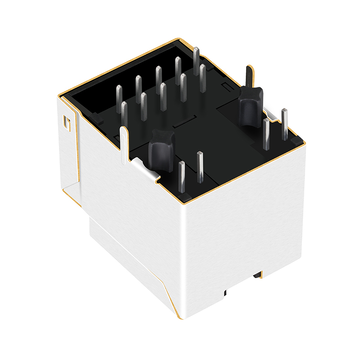

LINK-PP LPJD4726BDNL Gigabit Vertical RJ45 Jack with 1000 Base-T Integrated Magnetics For Monitoring System (Top Entry,Yellow/Green Leds)


The LPJD4726BDNL speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Intercom, Video Recorder, Patient Care.


LINK-PP Part Number:
LPJD4726BDNL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
10p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
UpCores per Port
8
Orientation
180° Angle (Right)PCB Mount Angle

THT Solder

Shield EMI Tabs
WithoutLED Option

Yellow/Green Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.654/16.60Package Length (Inches/mm)

0.850/21.59

Package Width (Inches/mm)
0.630/16.00
Temperature
-40℃ TO 85℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJD4726BDNL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The page shows a 1CT:1CT turns ratio with eight transformer cores behind the port. Ten positions with eight contacts in the mouth. All four pairs are wound for gigabit speed. Match the drawing pin list against your PHY. by LINK-PP Technical Support
  • A:
    The stated range runs from -40℃ up to 85℃. The low end is set by the plastic housing, not by the windings. Let the assembly settle before the first power up if condensation forms. Nothing inside needs a warm up period. by LINK-PP Technical Support
  • A:
    There are no stamped tabs on this housing. Earthing has to come through a grounded bezel instead. A clip you add yourself will do the same job. Settle that route before the enclosure drawing is released. by LINK-PP Technical Support
  • A:
    One lamp is yellow and the other is green. Both sit on the front face beside the mouth. Wiring decides which reports link and which reports traffic. The page does not assign them, so your firmware legend stays in charge. by LINK-PP Technical Support
  • A:
    Yes, this is a top entry body. The mouth points up so a lead drops in from above. Orientation reads 180 degrees and the pins solder through the board. The footprint is 21.59 mm by 16.00 mm, close to square. by LINK-PP Technical Support
