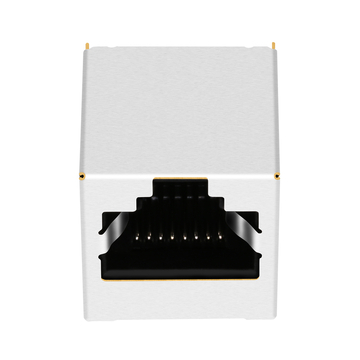

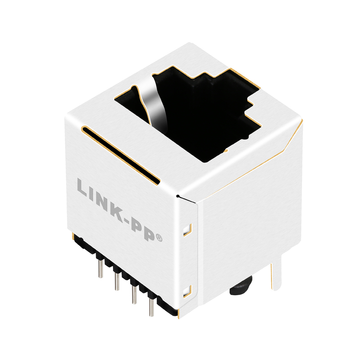

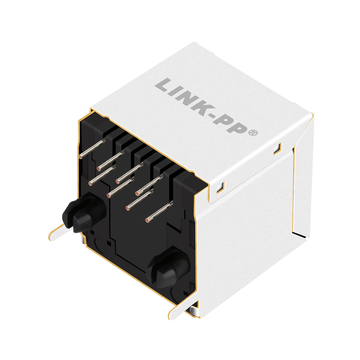

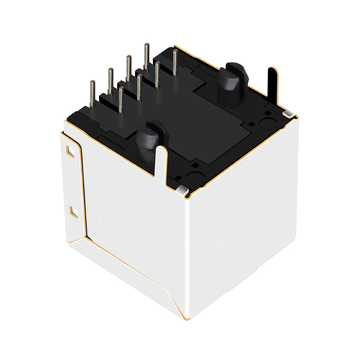

LINK-PP LPJD4608BHCS2R-C 1000 Base-T Vertical RJ45 Connector With Integrated Magnetics Without LED

Product: LINK-PP LPJD4608BHCS2R-C 1000 Base-T Vertical RJ45 Connector With Integrated Magnetics Without LED
SKU: 224761
P/N: LPJD4608BHCS2R-C
Price: $ 7.50
Stock: 2 in Stock
Sold: 36.5K
Product URL: https://www.l-p.com/products/497620.htm

For Order Over $1000 Get $15 Off , Code: Linkpp15

For Order Over $3000 Get $50 Off , Code: Linkpp50

For Order Over $5000 Get $100 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

0 Reviews

0 Questions

36.5K Sold

$ 7.50

Free shipping over $99 (transceivers & cages) / $600 (others). For wholesale pricing, please contact us directly.

Qty (pcs) :

Unit Price :

$ 7.500

$ 6.150

$ 5.400

$ 4.125

$ 3.525

Manufacture: LINK-PP P/N: LPJD4608BHCS2R-C SKU: 224761

Compatible:: LINK-PP

Compatible P/N:: LPJD4608BHCS2R-C

Shipping:

To Be Negotiated

$ 29.47

Can't deliver

to United States via FedEx IP

Estimated delivery time : 3 - 6 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Stock:

2 in Stock .

Quantity:

Total Price:

$ 7.50

Packaging Details:

N.W/pcs: 0.008kg
Package: Tray
SPQ: 50pcs
Qty/carton: 1000pcs
Carton size: 32*30*31cm
G.W./carton: 7.5kg

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

LINK-PP LPJD4608BHCS2R-C 1000 Base-T Vertical RJ45 Connector With Integrated Magnetics For Machine (Top Entry, Without LED)

The LINK-PP LPJD4608BHCS2R-C speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Alarm, TV, Surgical Equipment.

LINK-PP Part Number	LPJD4608BHCS2R-C	Connector Type	Jack
Part Status	Active	Mounting Type	Through Hole
Number of Positions/Contacts	10p8c (RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port	Speed	1000 Base-T
Latch	Up	Cores per Port	8
Orientation	180° Angle (Right)	PCB Mount Angle	THT Solder
Shield EMI Tabs	Without	LED Option	Without
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.665/16.90	Package Length (Inches/mm)	0.665/16.90
Package Width (Inches/mm)	0.634/16.10	Temperature	-
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

1000 Base-T Vertical RJ45 Connector

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing LPJD4608BHCS2R-C - LP004306.pdf Download
