LPJD4720BENL 100 1000 base-t vertical gigabit rj45 magjack green yellow led

LPJD4720BENL 100/1000 Base-T Vertical Gigabit RJ45 Magjack Green/Yellow LED

Product summary

Product
LPJD4720BENL 100/1000 Base-T Vertical Gigabit RJ45 Magjack Green/Yellow LED
SKU
158120
P/N
LPJD4720BENL
Price
$ 6.95
Stock
878 in Stock
Sold
11K
Unit price $ 6.95
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJD4720BENLSKU: 158120

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
Wurth
LINK-PP
Compatible P/N:
LPJD4720BENL
Volume pricing Online tiers · larger qty or custom price on request
$ 6.950
1–99 pcs
$ 5.699
100–599 pcs
$ 5.004
600–1,199 pcs
$ 3.823
1,200–5,999 pcs
$ 3.267
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
878 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 6.95
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.008 kg
9 kg

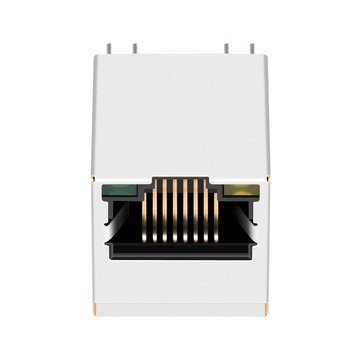

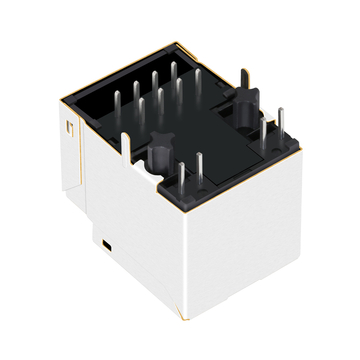

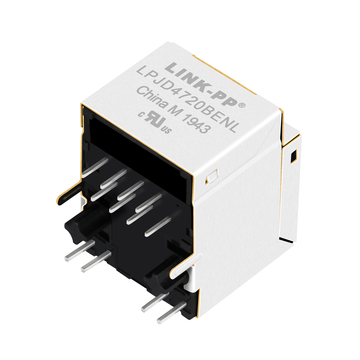

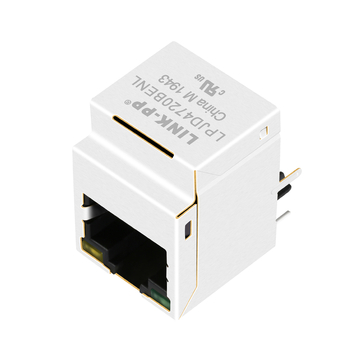

LINK-PP LPJD4720BENL 100/1000 Base-T Vertical RJ45 Female PCB Connector For Router(Top Entry, Green/Yellow LED)

The LPJD4720BENL speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as New Energy, Automation, Industrial PC.

LINK-PP Part Number: LPJD4720BENL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 10p8c (RJ45, Ethernet) Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port Speed 10/100/1000 Base-T
Latch Up Cores per Port 8
Orientation 180° Angle (Right) PCB Mount Angle

THT Solder

Shield EMI Tabs Without LED Option

Green/Yellow

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.654/16.60 Package Length (Inches/mm)

0.850/21.59

Package Width (Inches/mm) 0.630/16.00 Temperature -40℃ TO 85℃
Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJD4720BENL Drawing LPJD4720BENL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The page gives a band from -40℃ to 85℃ for this part. An unheated cabinet sits inside the rating. The shell cools before the plating does when the air drops. We run ours outdoors and have seen no failure through a winter. by LINK-PP Technical Support
  • A:
    This upright 180 degree shell opens its mouth upward through the panel. Wires leave the board downward rather than to the side. A patch lead can then drop from above and miss the neighbour. Our top mounted sample seated square without a fight. by LINK-PP Technical Support
  • A:
    This body sets a green lens next to a yellow one on the front. The two colours border the opening instead of stacking. Once the panel is shut the firmware legend is your only guide. We mapped link to green and activity to yellow on our board. by LINK-PP Technical Support
  • A:
    This 1000 Base-T body brings eight cores per port on the page. The pin row is marked 10p8c, meaning ten slots carry eight live contacts. Every pair gets its own winding and gigabit uses all of them. Our schematic matched the split without a rework. by LINK-PP Technical Support

Customer Reviews

  • 5

    123 Reviews

  • 5 Stars
    99%
    4 Stars
    1%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (123)
No data
M***y
Verified Purchase
5.0
2026-11-14
A batch of these went into a cabinet where the lead comes up from a floor duct and had to turn inside 30 mm, and the 16.60 mm body gave it the room. Two pairs landed first push on every unit, and no link has dropped in a cold aisle.
C***t
Verified Purchase
5.0
2026-06-25
All four pairs are wound, so the full gigabit rate is there. It has been in service at line rate since.
C***e
Verified Purchase
5.0
2025-11-11
No fingers, plate ground. It went in with the same tooling, no drama.
J***n
Verified Purchase
5.0
2025-06-21
Mouth faces the lid, so a duct lead turns straight in. Right angle worked as advertised on the rail.
M***m
Verified Purchase
5.0
2024-12-04
Green down one column, yellow down the other. The light pipe lined up first try.
