Integrated RJ45 Connector
Vertical RJ45 Connector
10/100 Base-T RJ45 Connector
170286

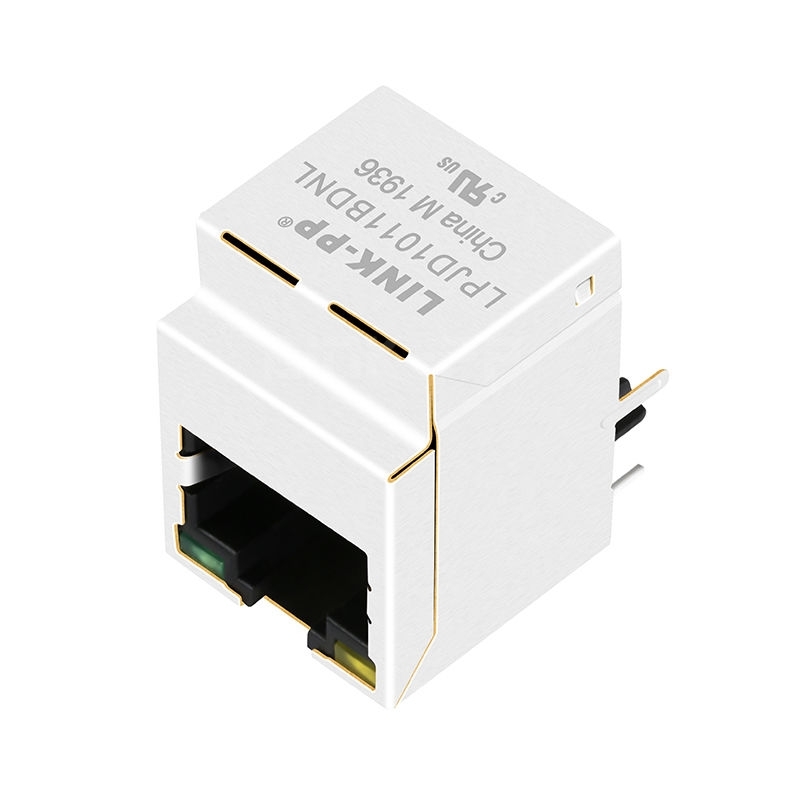

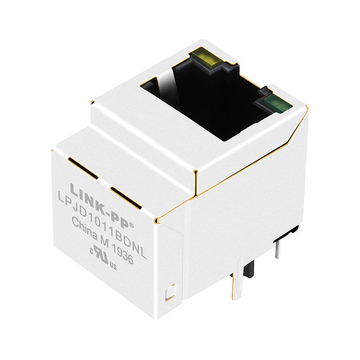

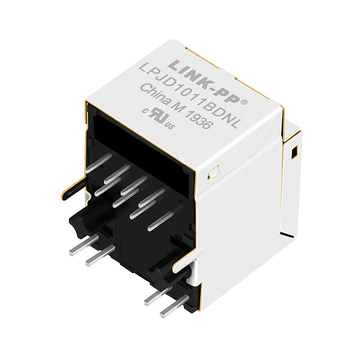

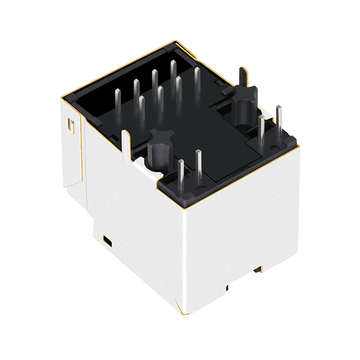

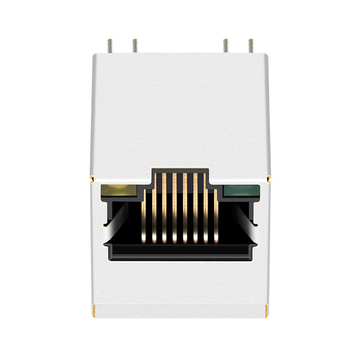

LPJD1011BDNL 10/100 Base-T Vertical RJ45 Magjack With Yellow/Green LED
  • LPJD1011BDNL 10/100 Base-T Vertical RJ45 Magjack With Yellow/Green LED thumb image 1
  • LPJD1011BDNL 10/100 Base-T Vertical RJ45 Magjack With Yellow/Green LED thumb image 2
  • LPJD1011BDNL 10/100 Base-T Vertical RJ45 Magjack With Yellow/Green LED thumb image 3
  • LPJD1011BDNL 10/100 Base-T Vertical RJ45 Magjack With Yellow/Green LED thumb image 4
  • LPJD1011BDNL 10/100 Base-T Vertical RJ45 Magjack With Yellow/Green LED thumb image 5

LPJD1011BDNL 10/100 Base-T Vertical RJ45 Magjack With Yellow/Green LED

#170286
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

LPJD1011BDNL 10/100 Base-T Vertical RJ45 Magjack With Yellow/Green LED

  • $  3.483

    1561 in Stock

 82 Reviews
0 Questions
Request Stock
6.7K Sold
$  3.483
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
$ 3.483
100
$ 2.857
600
$ 2.508
1200
$ 1.916
6000
$ 1.638
Manufacture: LINK-PP
P/N: LPJD1011BDNL
Competitor P/N:
HFJV1-2450-L21RL
LPJD1011BDNL
Compatible:
LINK-PP
Shipping:
$ 29.47
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
1561 in Stock .
Quantity:
Total Price:
$ 3.483
Packaging Details:
0.008kg
Tray
50pcs
1200pcs
32*30*31cm
9kg
Add to wish

LINK-PP LPJD1011BDNL 10/100 Base-T Vertical RJ45 Magjack For Switches ( Top entry, Yellow/Green LED)


The LPJD1011BDNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Industrial PC, Smart Meters,Patient Care.


LINK-PP Part Number:
 LPJD1011BDNL Connector Type
 Jack
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UpCores per Port
4
Orientation
180° Angle (Right)PCB Mount Angle

THT Solder

Shield EMI Tabs
WithoutLED Option

Yellow/Green

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.654/16.60Package Length (Inches/mm)

0.850/21.59

Package Width (Inches/mm)
0.630/16.00
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. Vertical RJ45 Magjack
  2. LPJD1011BDNL

Download

LPJD1011BDNL Drawing

3D Model
