LPJK0010AHNL 10 100 base-t tab up green yellow led 1x1 port poe rj45 network jack
Click to open expanded view

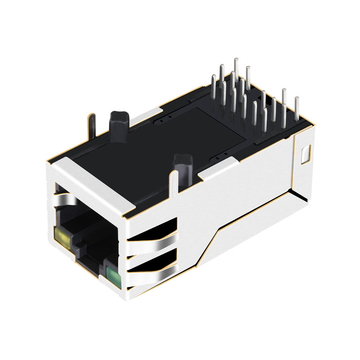

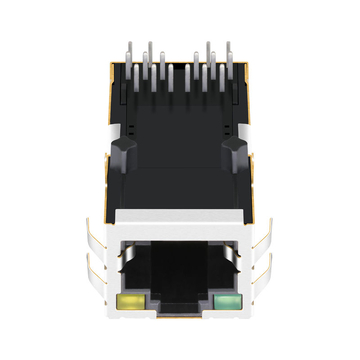

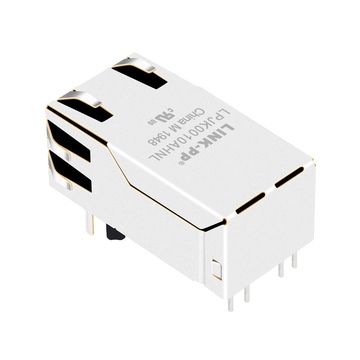

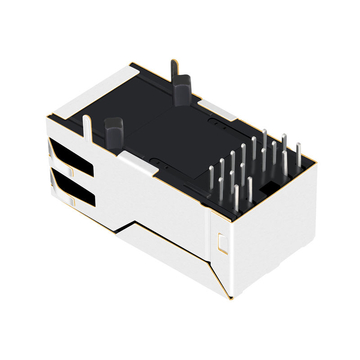

LPJK0010AHNL 10/100 Base-T Tab Up Green/Yellow Led 1x1 Port POE RJ45 Network Jack

Product summary

Product
LPJK0010AHNL 10/100 Base-T Tab Up Green/Yellow Led 1x1 Port POE RJ45 Network Jack
SKU
155393
P/N
LPJK0010AHNL
Price
$ 3.58
Stock
1280 in Stock
Sold
7.3K
Unit price $ 3.58
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJK0010AHNLSKU: 155393

LINK-PP originalDatasheetAll downloads

Compatible P/N:
LPJK0010AHNL
Volume pricing Online tiers · larger qty or custom price on request
$ 3.580
1–99 pcs
$ 2.933
100–599 pcs
$ 2.575
600–1,199 pcs
$ 1.967
1,200–5,999 pcs
$ 1.681
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1280 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 60
Total Price:
$ 3.58
Packaging Details
60 pcs
840 pcs
Tray
37×30×30 cm
0.011 kg
9 kg

LINK-PP LPJK0010AHNL 10/100 Base-T POE RJ45 Network Jack for Media Player and Game Controller (POE, 1x1 Port, Tab Up, Green/Yellow Led)


The LPJK0010AHNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3 af, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as New Energy, , Ethernet Control and Game Controller.


LINK-PP Part Number:
LPJK0010AHNL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
12p8c (RJ45, Ethernet) Application-Lan
Ethernet( PoE )
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UPCores per Port
5
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Yellow Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1.28/32.50

Package Width (Inches)
0.654/16.60Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJK0010AHNL Drawing LPJK0010AHNL.pdf
