LPJ26404AFNL 10 100 base-t 8p8c tab down green green led 1x2 port ethernet rj45 connector

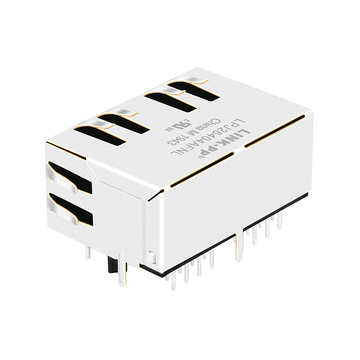

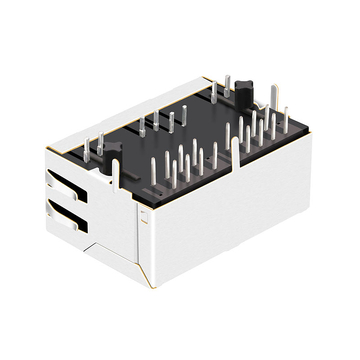

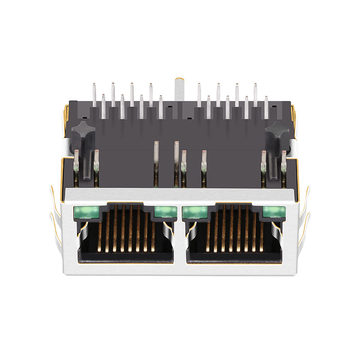

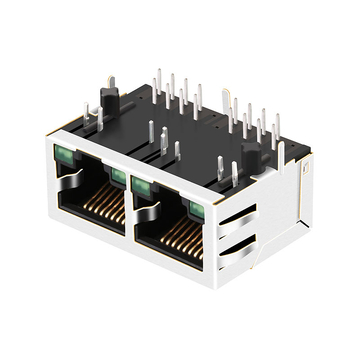

LPJ26404AFNL 10/100 Base-T 8p8c Tab Down Green/Green LED 1x2 Port Ethernet RJ45 Connector

Product summary

Product
LPJ26404AFNL 10/100 Base-T 8p8c Tab Down Green/Green LED 1x2 Port Ethernet RJ45 Connector
SKU
155227
P/N
LPJ26404AFNL
Price
$ 4.85
Stock
1540 in Stock
Sold
6.2K
Unit price $ 4.85
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ26404AFNLSKU: 155227

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LPJ26404AFNL
Volume pricing Online tiers · larger qty or custom price on request
$ 4.850
1–99 pcs
$ 3.977
100–599 pcs
$ 3.492
600–1,199 pcs
$ 2.668
1,200–5,999 pcs
$ 2.280
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1540 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 30
Total Price:
$ 4.85
Packaging Details
30 pcs
600 pcs
Tray
37×30×30 cm
0.015 kg
9 kg

LINK-PP LPJ26404AFNL 10/100 Base-T Ethernet RJ45 Connector for Game Controller and Automation (1x2 Port , Tab Down,Green/Green LED)


The LPJ26404AFNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Network Card, Optical Terminal ,Game Controller and Automation.


LINK-PP Part Number:
LPJ26404AFNL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x2 PortSpeed
10/100 Base-T
Latch
DownCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Green

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.536/13.61Package Length (Inches/mm)

0.841/21.36

Package Width (Inches/mm)
1.228/31.18
Temperature
-40℃ TO 85℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJ26404AFNL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Overall length, height, port to port pitch and coplanarity of both rows of leads. The 13.61mm height and the 31.18mm length are the two that decide whether the row fits an existing panel without a new tool. Log the readings against the reel number and check the EMI fingers for bending. Electrical testing will happily pass a housing that is a tenth of a millimetre oversize, and that part will not fit on the line. by LINK-PP Technical Support
  • A:
    It needs the same low impedance bond over a wider opening. The EMI tabs on this block contact the panel at several points, and all of them must reach bare metal; a painted or anodised face can leave half the row floating even when the jack looks seated. We suggest a masked contact strip along the whole 31.18mm length plus a continuity check at both ends, not just one. A wide ungrounded slot is a better antenna than a narrow one. by LINK-PP Technical Support
  • A:
    Keep the centre tap and bias network common to both channels and hold the four pairs to equal trace lengths. Because the two ports sit in one housing, a missing bias connection can leave one side dark while the other links normally, which reads like a bad connector. Check continuity on both centre taps before reworking the jack. Also confirm the 31.18mm row fits the cutout with a little clearance at each end. by LINK-PP Technical Support
  • A:
    By the steady versus blinking state, not by colour. This part uses a green green pair deliberately, so a uniform panel is easier to read at a distance, but the technician has to know the convention. Wire each indicator to the driver pin your PHY assigns and document which one is link. If the chassis software already reports link state, the LEDs become a convenience rather than the primary diagnostic, which is how we normally treat them. by LINK-PP Technical Support

Customer Reviews

  • 5

    73 Reviews

  • 5 Stars
    96%
    4 Stars
    4%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (73)
No data
R***n
Malaysia
Verified Purchase
5.0
2026-11-16
Four cores per port instead of eight keeps the winding set small, which is why this 1x2 body is only 21.36 mm deep and 13.61 mm high, so a taller gigabit row still fits above it on the same plate, which is worth it on a dense panel.
S***d
Canada
Verified Purchase
5.0
2026-10-17
31.18 mm for two ports, tab down, saves a drilling step. =)
Y***d
Spain
Verified Purchase
5.0
2026-09-18
1x2 at 100, four cores, worth it.
A***d
India
Verified Purchase
4.0
2026-08-19
The box arrived scuffed on one face, but the jacks were wrapped. Both ports carried 100M across the bench and the green lamps came on with the link, no fuss.
F***r
Poland
Verified Purchase
5.0
2026-07-21
Four cores is all 10/100 needs, handy on a 21.36 mm deep body.
