LPJG4944GENL 100 1000 base-t tab down green yellow led single port cat5e rj45 magnetic jack

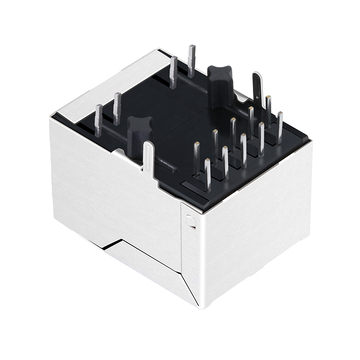

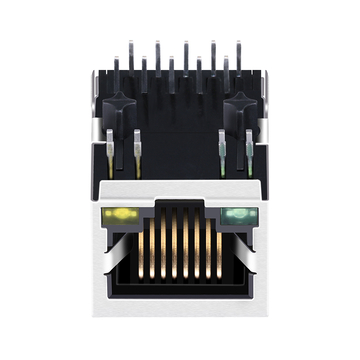

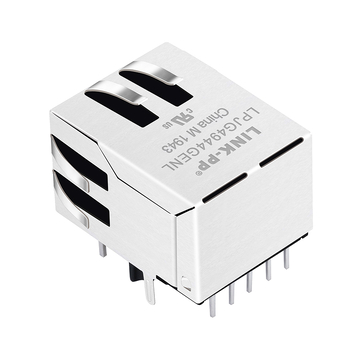

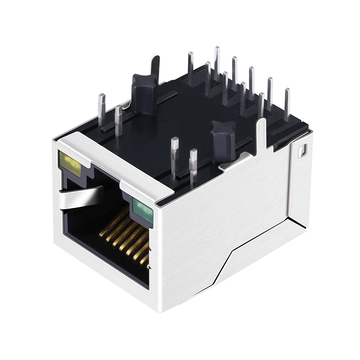

LPJG4944GENL 100/1000 Base-T Tab Down Green/Yellow Led Single Port Cat5e RJ45 Magnetic Jack

Product summary

Product
LPJG4944GENL 100/1000 Base-T Tab Down Green/Yellow Led Single Port Cat5e RJ45 Magnetic Jack
SKU
155123
P/N
LPJG4944GENL
Price
$ 3.09
Stock
9180 in Stock
Sold
820
Unit price $ 3.09
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJG4944GENLSKU: 155123

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
Pulse
LINK-PP
Compatible P/N:
LPJG4944GENL
Volume pricing Online tiers · larger qty or custom price on request
$ 3.090
1–99 pcs
$ 2.531
100–599 pcs
$ 2.222
600–1,199 pcs
$ 1.697
1,200–5,999 pcs
$ 1.450
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
9180 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 3.09
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.007 kg
8.5 kg

LINK-PP LPJG4944GENL 100/1000 Base-T Cat5e RJ45 Magnetic Jack for Industrial PC and Fieldbus System (Single Port, Tab Down, Green/Yellow Led)


The LPJG4944GENL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.


LINK-PP Part Number:
LPJG4944GENL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
10p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
Down Cores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.537/13.63Package Length (Inches/mm)

0.841/21.35

Package Width (Inches/mm)
0.626/15.90Temperature

-40 TO 85℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJG4944GENL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    It does if the pin count matches at ten positions. Some of our Cat5e parts use eight contacts and those need a different hole pattern. We keep a note on the library entry for each group. Check the drawing before you cross a part number over. by LINK-PP Technical Support
  • A:
    The magnetics do their job, but the cable grade sets the limit. We ran ours beside a drive motor and saw no errors at gigabit. The shielded body helped more than the Cat5e rating did. On a longer run we would move to Cat6 cable. by LINK-PP Technical Support
  • A:
    Green carries the link and yellow carries activity in our build. The leads are separate, so you can drive both from link if you prefer. We kept the activity function because operators asked for it. Swapping is a firmware change. by LINK-PP Technical Support
  • A:
    Our samples came in at 13.63 mm tall. Our enclosure had 15 mm inside, so it fitted with room. A gasket compresses about a millimetre, which you should allow for. Our second build used a deeper box anyway. by LINK-PP Technical Support
  • A:
    The housing compound and the plating thickness are the first difference. Ours took a solvent wipe that clouded the cheaper parts. The latch also held its shape after two hundred cycles. That is where we saw the gap widen. by LINK-PP Technical Support
  • A:
    It can, and we ran a thousand megabit over a two metre patch for a week. The rating describes the cable the part was tested with. Errors stayed at zero on the counter the whole time. Longer runs would need a better cable grade. by LINK-PP Technical Support

Customer Reviews

  • 5

    85 Reviews

  • 5 Stars
    99%
    4 Stars
    1%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (85)
No data
L***p
Brazil
Verified Purchase
5.0
2026-11-13
The 13.63 mm height is 0.2 mm over our old part, and the lid still closed, a clean fit. -40℃ to 85℃ covers the cold end of that room :D
A***s
Turkey
Verified Purchase
5.0
2026-04-22
Fit fine.
L***n
Belgium
Verified Purchase
5.0
2026-01-29
Through hole posts kept it square, clean fit.
R***o
Malaysia
Verified Purchase
5.0
2025-05-11
Our plant room is wired with unscreened Cat5e, so a Cat5e body is the honest fit. Eight cores and the tabs at the cutout kept the scan low, a clean result.
P***d
United States
Verified Purchase
4.0
2024-12-13
2 bodies arrived with creased corners, but both seated flat. Every port trained at gigabit on unscreened Cat5e cable, and the lamps lined up. Good part.
