Integrated RJ45 Connector
Single Port RJ45 Connector
10/100 Base-T RJ45 Connector
137254

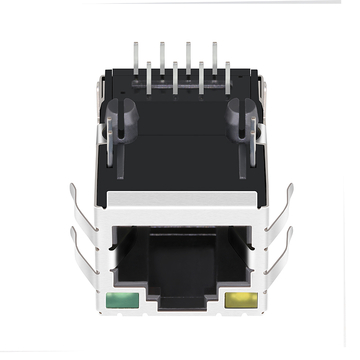

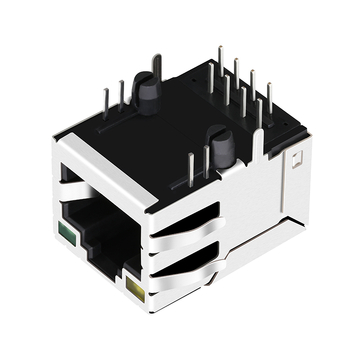

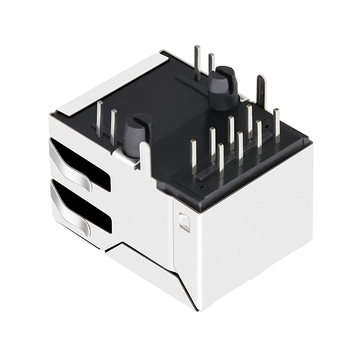

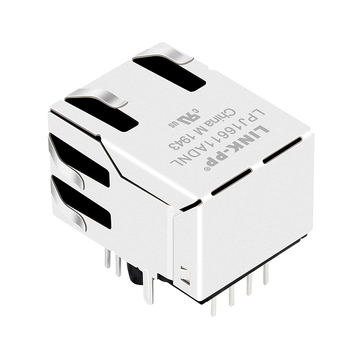

Pulse JXD1-0014NL Compatible LINK-PP LPJ16611ADNL 10/100 Base-T Tab Up Yellow/Green Led Single Port Female RJ45 Socket Connection

Pulse JXD1-0014NL Compatible LINK-PP LPJ16611ADNL 10/100 Base-T Tab Up Yellow/Green Led Single Port Female RJ45 Socket Connection

#137254
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

Pulse JXD1-0014NL Compatible LINK-PP LPJ16611ADNL 10/100 Base-T Tab Up Yellow/Green Led Single Port Female RJ45 Socket Connection

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

  •
68 Reviews
1 Questions
Request Stock
20.5K Sold
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF )
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
$ 2.469
100
$ 2.025
600
$ 1.778
1200
$ 1.358
6000
$ 1.161
Manufacture: LINK-PP
P/N: LPJ16611ADNL
Compatible:
LINK-PP
Halo
Pulse
Competitor P/N:
JXD1-0014NL
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
To Be Negotiated
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details
Stock:
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
undeliverable
Total Price:
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.total }}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}
Packaging Details:
0.007kg
Tray
50pcs
1200pcs
32*30*31cm
8.5kg
Add to wish

Pulse JXD1-0014NL Compatible LINK-PP LPJ16611ADNL 10/100 Base-T Female RJ45 Socket Connection for Industrial PC and Fieldbus System (Single Port, Tab Up, Yellow/Green Led)


The LPJ16611ADNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.


LINK-PP Part Number:
 LPJ16611ADNL Pulse Part Number JXD1-0014NL
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UpCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Yellow/Green

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.528/13.40Package Length (Inches/mm)

0.846/21.50

Package Width (Inches/mm)
0.620/15.75Temperature

-40℃ TO 85℃

Bst Circuit
YesAutomDX

YES

Diodes
-Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
  1. RJ45 Socket Connection
