LPJ4017GENL integrated rj45 magjack 10 100 base-t tab down green yellow led

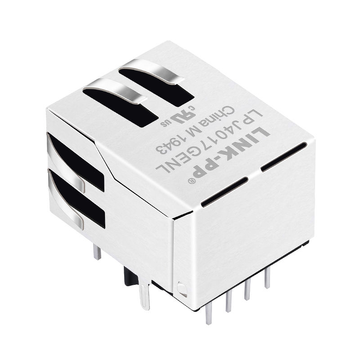

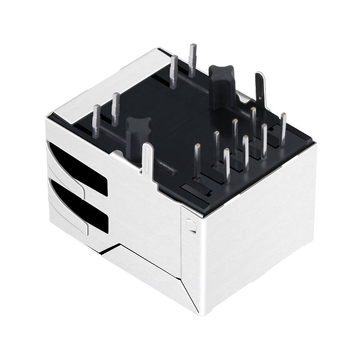

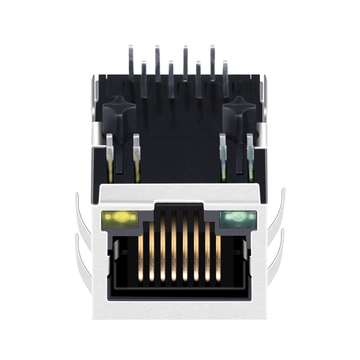

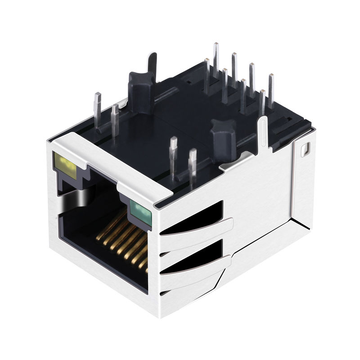

LPJ4017GENL Integrated RJ45 Magjack 10/100 Base-T Tab Down Green/Yellow LED

Product summary

Product
LPJ4017GENL Integrated RJ45 Magjack 10/100 Base-T Tab Down Green/Yellow LED
SKU
105609
P/N
LPJ4017GENL
Price
$ 2.11
Stock
1799 in Stock
Sold
58.8K
Unit price $ 2.11
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJ4017GENLSKU: 105609

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
XFMRS
LINK-PP
Compatible P/N:
LPJ4017GENL
Volume pricing Online tiers · larger qty or custom price on request
$ 2.110
1–99 pcs
$ 1.729
100–599 pcs
$ 1.518
600–1,199 pcs
$ 1.159
1,200–5,999 pcs
$ 0.991
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1799 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 2.11
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.007 kg
8.5 kg

Single Port Integrated RJ45 Fastjacks with 10/100 Base-T Integrated Magnetics, Green/Yellow LED, Tab Down, RoHS

LINK-PP Part Number: LPJ4017GENL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 8p8c (RJ45, Ethernet) Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port Speed 10/100 Base-T
Latch Down Cores per Port 4
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs With LED Option

Green/Yellow

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.528/13.40 Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm) 0.626/15.90 Temperature

-40℃ TO 85℃

Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJ4017GENL Drawing lpj4017genl-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Green and yellow lenses sit on the LPJ4017GENL face, near that port, at that reel. Your firmware assigns each colour a role, around a jig, on that spec. The layout check confirms the clearance, across this mux, at a spec. by LINK-PP Technical Support
  • A:
    EMI tabs are stamped on the LPJ4017GENL front frame, in that depth, around this hatch. Your chassis plane takes that bond, for the link, around the grade. A trial board answers it in a day, with our drawing, in our width. by LINK-PP Technical Support
  • A:
    The LPJ4017GENL latch faces Down for a low cable path, at this jig, near our file. A lid above the board stays clear, with this note, under this file. The design owner makes the final call, with a grade, around our list. by LINK-PP Technical Support
  • A:
    LPJ4017GENL is a 10/100 Base-T magjack with the transformer inside, in this chart. That shortens the PHY side on your board, on our page, on our grade. Your panel drawing settles that question, at this patch, under our adapter, across that sheet. by LINK-PP Technical Support

Customer Reviews

  • 5

    68 Reviews

  • 5 Stars
    97%
    4 Stars
    3%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (68)
No data
B***u
New Zealand
Verified Purchase
5.0
2026-11-13
Clean contact seating.
A***d
Canada
Verified Purchase
5.0
2026-04-04
Our kiosk door swings the plug in from below, so the tab down body was the right choice. Latch clears the frame without a scrape, no filing needed, handy :-)
D***n
Sweden
Verified Purchase
5.0
2025-08-21
Same footprint, clean swap.
F***y
Netherlands
Verified Purchase
4.0
2025-03-21
One box showed up late by a week, though the bodies inside were fine. The cold rating held on our freezer soak and the lamps lit at -40℃. Solid part.
E***l
India
Verified Purchase
5.0
2024-08-31
The shield line sat clean at the panel edge.
