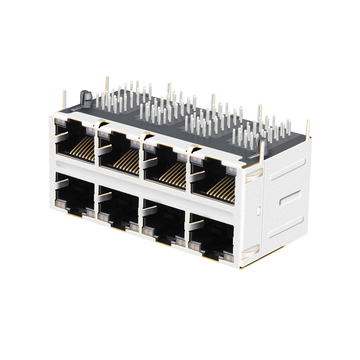

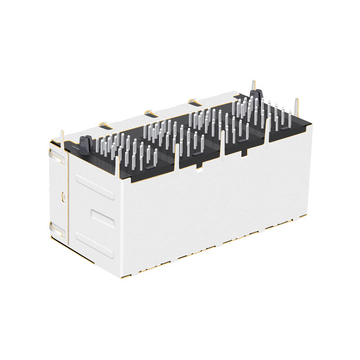

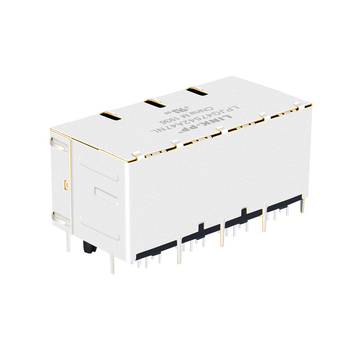

RM5-1SSA9V1F Compatible LINK-PP LPJG47542A47NL 10/100/1000 Base-T 2x4 Port RJ45 Magnetic Jacks Yellow&Green/Yellow&Green LED

Product summary

Product
RM5-1SSA9V1F Compatible LINK-PP LPJG47542A47NL 10/100/1000 Base-T 2x4 Port RJ45 Magnetic Jacks Yellow&Green/Yellow&Green LED
SKU
177627
P/N
LPJG47542A47NL
Price
$ 26.43
Stock
2500 in Stock
Sold
12.2K
Unit price $ 26.43
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJG47542A47NLSKU: 177627

Compatible with UDE RM5-1SSA9V1FDatasheet3D ModelAll downloads

Compatible:
UDE
LINK-PP
Volume pricing Online tiers · larger qty or custom price on request
$ 26.430
1–99 pcs
$ 21.938
100–599 pcs
$ 18.766
600–1,199 pcs
$ 16.652
1,200–5,999 pcs
$ 14.801
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
2500 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 12
Total Price:
$ 26.43
Packaging Details
12 pcs
216 pcs
Tray
37×30×30 cm
0.059 kg
12.7 kg

UDE RM5-1SSA9V1F Compatible LINK-PP LPJG47542A47NL 10/100/1000 Base-T 2x4Port RJ45 Magnetic Jack for Smart Home and Solar Inverter (Yellow&Green/Yellow&Green LED)


The LPJG47542A47NL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Home, Ethernet Control , Network Firewall and Solar Inverter.


LINK-PP Part Number
LPJG47542A47NL UDE Part Number RM5-1SSA9V1F
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
2x4 Port
Speed
10/100/1000 Base-T
Latch
BothCores per Port
12
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Yellow&Green/Yellow&Green Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
1.015/25.79Package Length (Inches/mm)

1.116/28.35

Package Width (Inches/mm)
2.330/59.18
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJG47542A47NL Drawing LPJG47542A47NL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Eight mouths fill the shell in two rows. The upper row holds four and the lower row holds four, 59.18 mm across the whole block. Each mouth has ten positions, and twelve cores take the signal to the board. Both rows latch to the same side. by LINK-PP Technical Support
  • A:
    Twelve cores per port are wound for a gigabit link that also carries a management pair. The extra core set is why the body needs 28.35 mm of depth. Eight ports on one shell make that worth it. by LINK-PP Technical Support
  • A:
    Payment terms are flexible, T/T, Paypal, L/C, D/A, D/P, Western Union, Money Gram etc. And you can pay on Alibaba with your credit card. by LINK-PP Technical Support
