tyco 6605841-1 compatible link-pp lpj16664cnl 10 100 base-t tab up without led single port shielded integrated rj45 ethernet connection

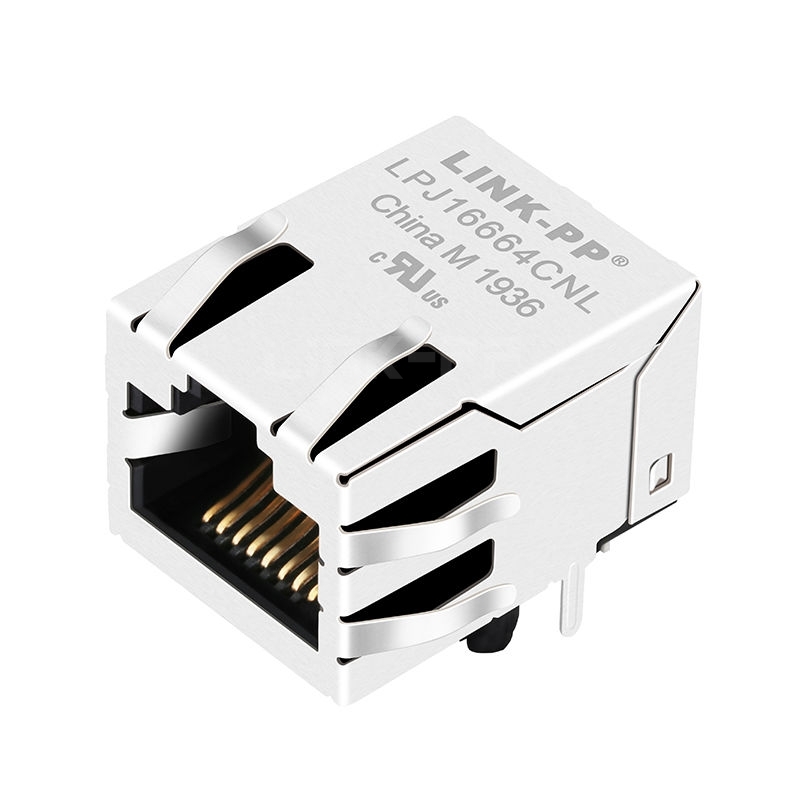

Tyco 6605841-1 Compatible LINK-PP LPJ16664CNL 10/100 Base-T Tab Up Without Led Single Port Shielded Integrated RJ45 Ethernet Connection

Product summary

Product
Tyco 6605841-1 Compatible LINK-PP LPJ16664CNL 10/100 Base-T Tab Up Without Led Single Port Shielded Integrated RJ45 Ethernet Connection
SKU
95413
P/N
LPJ16664CNL
Price
$ 2.38
Stock
6500 in Stock
Sold
880
Unit price $ 2.38
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ16664CNLSKU: 95413

Compatible with Tyco 6605841-1Datasheet3D ModelAll downloads

Compatible:
Tyco
LINK-PP
Compatible P/N:
6605841-1
Volume pricing Online tiers · larger qty or custom price on request
$ 2.380
1–99 pcs
$ 1.952
100–599 pcs
$ 1.714
600–1,199 pcs
$ 1.310
1,200–5,999 pcs
$ 1.119
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
6500 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 2.38
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.007 kg
8.5 kg

Tyco 6605841-1 Compatible LINK-PP LPJ16664CNL 10/100 Base-T Shielded Integrated RJ45 Ethernet Connection for Industrial PC and Fieldbus System (POE, Single Port, Tab Up, Green/Yellow Led)


The LPJ16664CNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.


LINK-PP Part Number:
LPJ16664CNL
Tyco Part Number 6605841-1
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet( NoN PoE )
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UPCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Without Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.530/13.45Package Length (Inches/mm)

0.837/21.25

Package Width (Inches/mm)
0.628/15.95Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJ16664CNL Drawing LPJ16664CNL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The mating cycle count and the plating thickness are worth confirming with the supplier, since a port that gets patched weekly ages much faster than one fitted once. We asked for the gold thickness on the contact area and ran a sample through repeated insertions before approving the batch, then checked the contact resistance at the end. In a damp cabinet a thin finish shows up as intermittent links long before it looks worn. Keep a spare on the shelf for comparison. by LINK-PP Technical Support
  • A:
    Train a link at ten and a hundred megabits, read the error counters at each step, and repeat on a short lead and a ninety metre cable. Since there are no lamps to confirm the wiring, start with the winding ratio and the tap rails against the schematic before sending any traffic at all. We also logged the PHY registers as a baseline for later batches. A marginal connection that only fails on a long cable is worth catching here rather than in the field. by LINK-PP Technical Support
  • A:
    The page lists no internal diodes, so external protection has to be chosen on the board rather than assumed inside the shell. We placed a low capacitance TVS array close to the connector on each pair and kept the path from the pin to the clamp short, with a solid return to the chassis stud. On the bench we injected a fast transient and read the PHY afterwards to confirm no latch up. Leave the footprint in place even if the first build omits the parts. by LINK-PP Technical Support
  • A:
    There are no emitters in the housing, so all status has to come from the PHY registers or a system indicator elsewhere on the box. We exposed link, speed and activity through the management page and put a single panel lamp at the front for the field crew. That also removes a whole set of series resistors and their polarity checks from the board. Confirm during bring up that the register bits follow the state of the cable, not just the initial training. by LINK-PP Technical Support

Customer Reviews

  • 5

    78 Reviews

  • 5 Stars
    99%
    4 Stars
    1%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (78)
No data
N***n
Verified Purchase
5.0
2026-07-05
Magnetics inside the body. No surprises on the contact order.
B***h
Verified Purchase
5.0
2025-12-17
With no lamp the front panel stays dark in a darkened room, which is what our client asked for. It sat within spec on the height. :D
I***g
Verified Purchase
5.0
2025-06-19
Tabs grip the plate at the cutout and keep the shell bonded. It matched the sheet on every dimension.
L***t
Verified Purchase
5.0
2024-09-02
The face carries no lamp at all, so there is no light to chase when a port goes quiet. It cleared the panel thickness within spec.
T***t
Verified Purchase
4.0
2024-03-05
A few jacks in the tray were scratched across the face, but the contacts were straight. Both pairs landed and the port has held link. The inner tray kept every body in place, no fuss.
