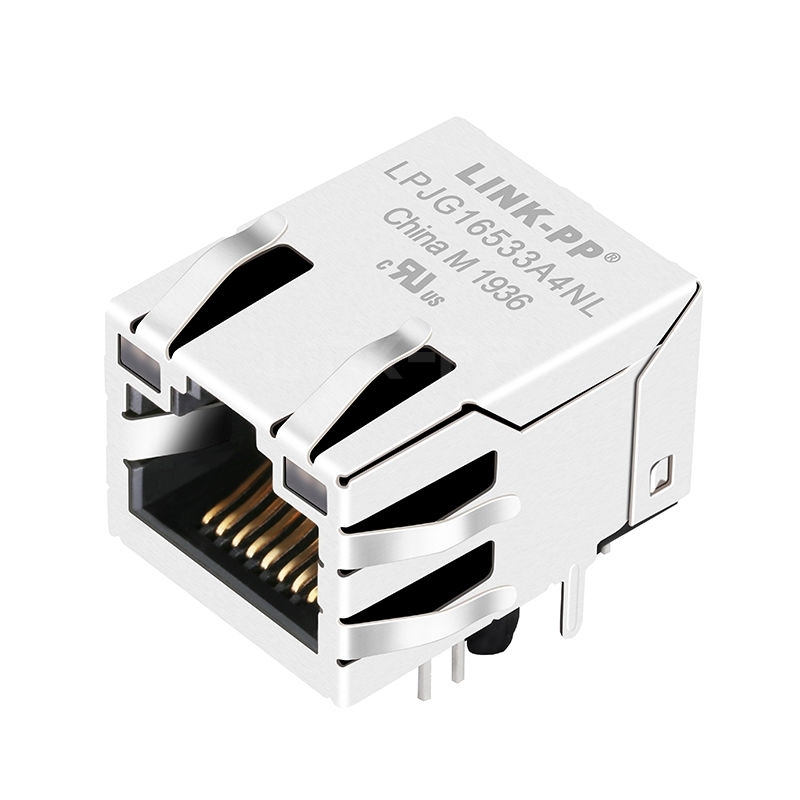

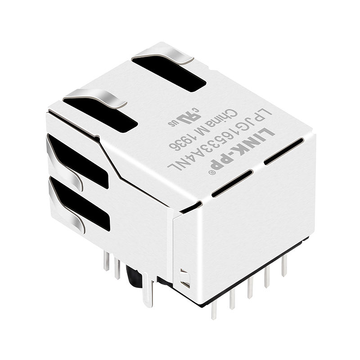

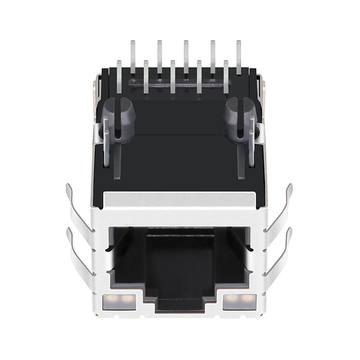

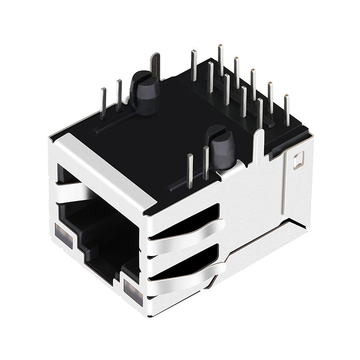

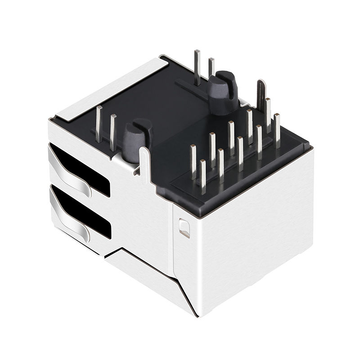

Tyco 6605833 Compatible LINK-PP LPJG16533A4NL 100/1000 Base-T Gigabit RJ45 Magjack Tab Up Green&Yellow/Green&Yellow LED

Product summary

Product
Tyco 6605833 Compatible LINK-PP LPJG16533A4NL 100/1000 Base-T Gigabit RJ45 Magjack Tab Up Green&Yellow/Green&Yellow LED
SKU
95295
P/N
LPJG16533A4NL
Price
$ 3.53
Stock
4100 in Stock
Sold
55.5K
Unit price $ 3.53
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJG16533A4NLSKU: 95295

Compatible with Tyco 6605833Datasheet3D ModelAll downloads

Compatible:
Tyco
LINK-PP
Compatible P/N:
6605833
6605833-6
Volume pricing Online tiers · larger qty or custom price on request
$ 3.530
1–99 pcs
$ 2.892
100–599 pcs
$ 2.539
600–1,199 pcs
$ 1.940
1,200–5,999 pcs
$ 1.658
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
4100 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 3.53
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.008 kg
9 kg

Tyco 6605833 Compatible LINK-PP LPJG16533A4NL 100/1000 Base-T 10 Pin Shielded rj45 connector with transformer for Industrial PC and Fieldbus System (Single Port, Tab Up, Green&Yellow/Green&Yellow Led)

The LPJG16533A4NL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.

LINK-PP Part Number: LPJG16533A4NL Tyco Part Number 6605833
Part Status Active Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet) Application-Lan Ethernet( NoN PoE )
Number of Ports 1x1 Port Speed 10/100/1000 Base-T
Latch UP Cores per Port 12
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs With LED Option

Green&Yellow/Green&Yellow Leds

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.531/13.50 Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm)
0.628/15.95 Temperature

0℃ TO 70℃

Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

3D Model LPJG16533A4NL.zip
3D Model LPJG16533A4NL.glb

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The latch sits over the mouth on the top face. A finger presses it from above, so leave clearance over the opening. It stands 13.50 mm from the board. That number covers most sheet metal builds. by LINK-PP Technical Support
  • A:
    Tabs are stamped on both sides and meet the panel plus a board pad. Solder both rows or one edge of the shell floats. The face is 15.95 mm wide, so the rows sit well apart. by LINK-PP Technical Support
  • A:
    Each side carries green and yellow in one lens. That gives four visible states across the pair. Your driver sets which state means link and which means traffic. Nothing on the housing labels either one. by LINK-PP Technical Support
  • A:
    Twelve cores sit behind the single port on this body. That is more than the eight used on a plain gigabit winding. The extra cores usually serve a bicolour lamp pair. Ask for the drawing before you count on that figure. by LINK-PP Technical Support

Customer Reviews

  • 5

    62 Reviews

  • 5 Stars
    100%
    4 Stars
    0%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (62)
No data
G***t
Verified Purchase
5.0
2025-10-01
Two spare pairs sit on the frame. The harness took it first try.
T***k
Verified Purchase
5.0
2024-07-02
Green and yellow on both sides, four lamps. It matched the drawing on the lamp positions.
O***d
Verified Purchase
5.0
2023-11-10
Ten contacts, twelve cores and the clip above the mouth. The isolation held up on every unit.
A***y
Verified Purchase
5.0
2023-04-25
Twelve cores on one mouth is more than a gigabit link needs, and those two spare pairs had no job until we ran them to a chassis drain. That was the whole reason this part beat the eight core body, because the drain would otherwise need a wire across the board. Two hundred out.
