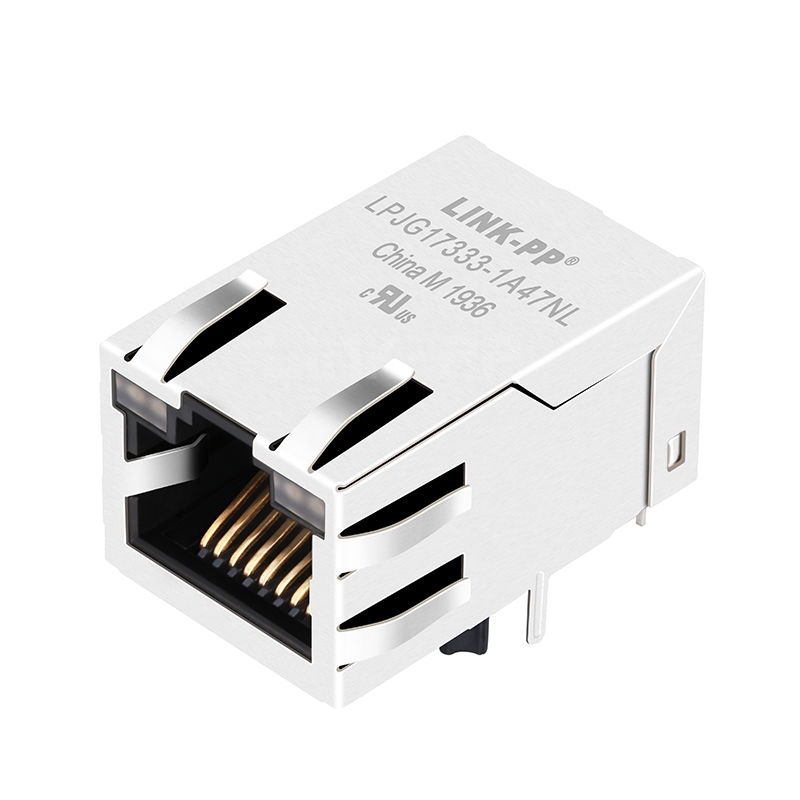

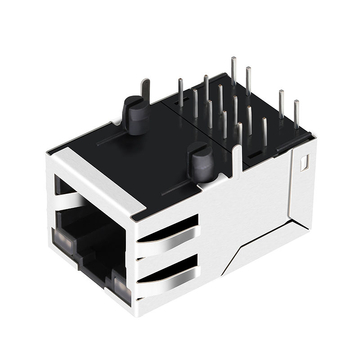

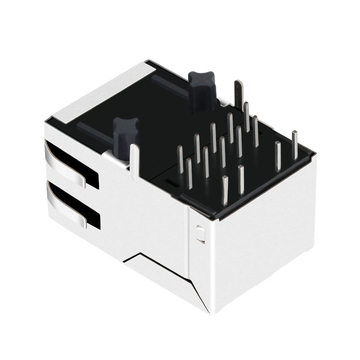

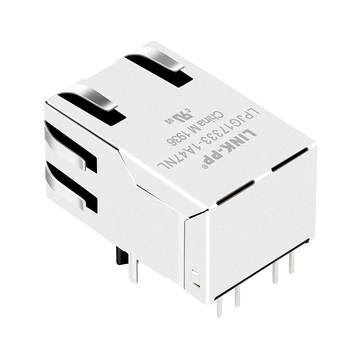

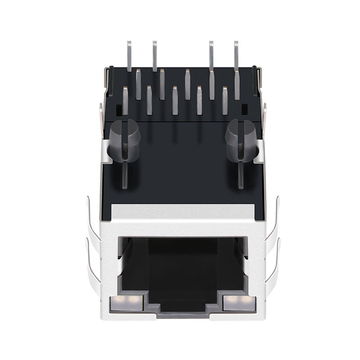

UDE RTA-1S4A9W1F Compatible LINK-PP LPJG17333-1A47NL 100/1000 Base-T Tab Up RJ45 Magjack Yellow/Green/Yellow/Green LED

Product summary

Product
UDE RTA-1S4A9W1F Compatible LINK-PP LPJG17333-1A47NL 100/1000 Base-T Tab Up RJ45 Magjack Yellow/Green/Yellow/Green LED
SKU
94216
P/N
LPJG17333-1A47NL
Price
$ 6.00
Stock
2260 in Stock
Sold
2.2K
Unit price $ 6.00
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJG17333-1A47NLSKU: 94216

Compatible with UDE RTA-1S4A9W1FDatasheet3D ModelAll downloads

Compatible:
UDE
LINK-PP
Compatible P/N:
RTA-1S4A9W1F
Volume pricing Online tiers · larger qty or custom price on request
$ 6.000
1–99 pcs
$ 4.920
100–599 pcs
$ 4.320
600–1,199 pcs
$ 3.300
1,200–5,999 pcs
$ 2.820
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
2260 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 6.00
Packaging Details
50 pcs
1000 pcs
Tray
32×30×31 cm
0.009 kg
9 kg

RTA-1S4A9W1F Compatible LINK-PP LPJG17333-1A47NL 100/1000 Base-T RJ45 Ethernet Magjack for Industrial PC and The Handheld Device (POE+, 1x1 Port, Tab Up, Orange&Green/Yellow Led)

The LPJG17333-1A47NL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Home, Industrial PC, The Handheld Device and Game Controller.

LINK-PP Part Number: LPJG17333-1A47NL UDE Part Number RTA-1S4A9W1F
Part Status Active Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet) Application-Lan Ethernet( NoN PoE )
Number of Ports 1x1 Port Speed 10/100/1000 Base-T
Latch UP Cores per Port 12
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs With LED Option

Yellow&Green/Yellow&Green Leds

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.531/13.50 Package Length (Inches/mm)

1.00/25.4

Package Width (Inches) 0.640/16.25 Temperature

0℃ TO 70℃

Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJG17333-1A47NL Drawing LPJG17333-1A47NL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The mouth sits on a side entry body at 90 degrees, so it opens through the panel face. The latch is on the upper face. It stands 13.50 mm from the board. Good fit for our opening. by LINK-PP Technical Support
  • A:
    The datasheet line reads 0℃ to 70℃. That is the commercial window, not the industrial one. A conditioned rack stays well inside it. Ask for a colder sibling if the box goes outdoors at all. by LINK-PP Technical Support
  • A:
    The face measures 16.25 mm across, wider than the 15.95 mm bodies in the same family. Height is 13.50 mm. Check the cut out against the wider shell first. Our panel needed 0.3 mm more. by LINK-PP Technical Support
  • A:
    Each side holds yellow and green in the same lens. That gives four states over the two lamps. The housing does not say which state means link, so firmware owns that call. That has been workable for us. by LINK-PP Technical Support
  • A:
    The page lists 12 cores per port on this gigabit body. A plain four pair winding only needs eight. The extra four usually carry a lamp return or a centre tap. Confirm the split on the drawing before layout. by LINK-PP Technical Support
