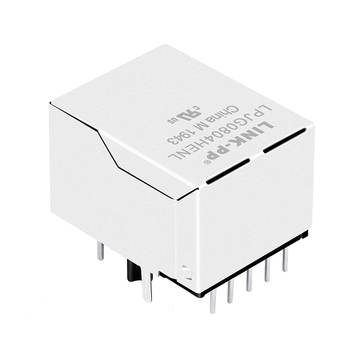

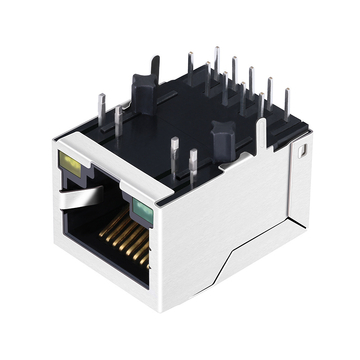

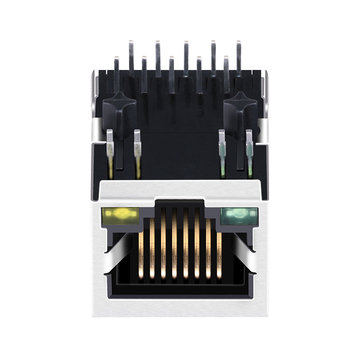

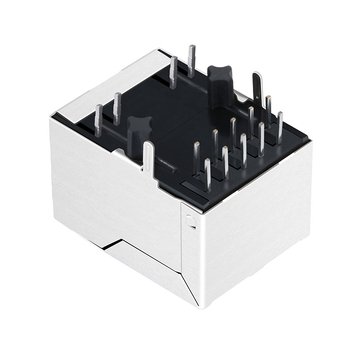

UDE RB1-216BNN1A Compatible LINK-PP LPJG0804HENL 100/1000 Base-T Gigabit RJ45 Magjack 1x1 Port Green/Yellow LED Tab Down

Product summary

Product
UDE RB1-216BNN1A Compatible LINK-PP LPJG0804HENL 100/1000 Base-T Gigabit RJ45 Magjack 1x1 Port Green/Yellow LED Tab Down
SKU
177663
P/N
LPJG0804HENL
Price
$ 3.35
Stock
5500 in Stock
Sold
14.5K
Unit price $ 3.35
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJG0804HENLSKU: 177663

Compatible with UDE RB1-216BNN1ADatasheetAll downloads

Compatible:
UDE
LINK-PP
Compatible P/N:
RB1-216BNN1A
Volume pricing Online tiers · larger qty or custom price on request
$ 3.350
1–99 pcs
$ 2.750
100–599 pcs
$ 2.415
600–1,199 pcs
$ 1.845
1,200–5,999 pcs
$ 1.576
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
5500 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 3.35
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.008 kg
9 kg

UDE RB1-216BNN1A Compatible LINK-PP LPJG0804HENL 100/1000 Base-T Gigabit RJ45 magnetics connector for Monitoring System and Embedded Main Board (1x1 Port, Tab Down, Green/Yellow Led)

The LPJG0804HENL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Embedded Main Board, Video Recorder and Smart Meters.

LINK-PP Part Number LPJG0804HENL UDE Part Number RB1-216BNN1A
Part Status Active Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet) Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port Speed 10/100/1000 Base-T
Latch Down Cores per Port 8
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs Without LED Option

Green/Yellow

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.524/13.30 Package Length (Inches/mm)

0.837/21.25

Package Width (Inches/mm) 0.627/15.93 Temperature

0℃ TO 70℃

Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJG0804HENL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
