moxie mox-rj45-520 compatible link-pp lpj6144awnl 10 100 base-t tab up green green led single port shielded rj45 cat5e connector

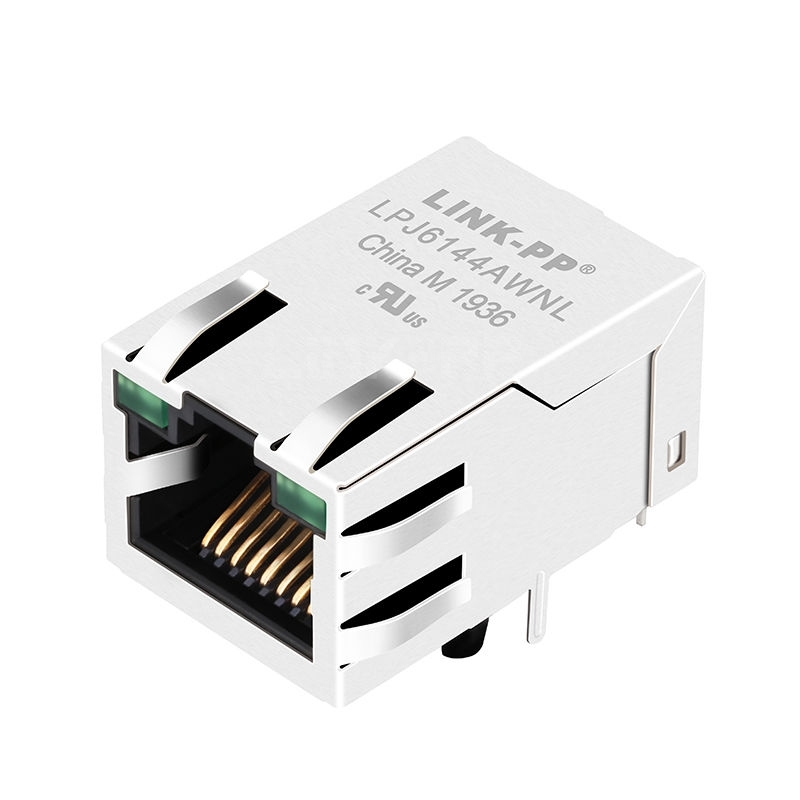

Moxie MOX-RJ45-520 Compatible LINK-PP LPJ6144AWNL 10/100 Base-T Tab Up Green/Green Led Single Port Shielded RJ45 Cat5e Connector

Product summary

Product
Moxie MOX-RJ45-520 Compatible LINK-PP LPJ6144AWNL 10/100 Base-T Tab Up Green/Green Led Single Port Shielded RJ45 Cat5e Connector
SKU
93475
P/N
LPJ6144AWNL
Price
$ 3.09
Stock
967 in Stock
Sold
8.1K
Unit price $ 3.09
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ6144AWNLSKU: 93475

Compatible with Moxie MOX-RJ45-520Datasheet3D ModelAll downloads

Compatible P/N:
MOX-RJ45-520
Volume pricing Online tiers · larger qty or custom price on request
$ 3.090
1–99 pcs
$ 2.531
100–599 pcs
$ 2.222
600–1,199 pcs
$ 1.697
1,200–5,999 pcs
$ 1.450
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
967 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 3.09
Packaging Details
50 pcs
1000 pcs
Tray
32×30×31 cm
0.009 kg
8.5 kg

Moxie MOX-RJ45-520 Compatible LINK-PP LPJ6144AWNL 10/100 Base-T Shielded RJ45 Cat5e Connector for Industrial PC and Fieldbus System (Single Port, Tab Up, Green/Green Led)


The LPJ6144AWNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.


LINK-PP Part Number:
LPJ6144AWNL Moxie Part Number MOX-RJ45-520
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
10p8c (RJ45, Ethernet) Application-Lan
Ethernet(PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UPCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Green Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.530/13.45Package Length (Inches/mm)

0.994/25.25

Package Width (Inches)
0.636/16.15Temperature

-40℃ TO 85℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJ6144AWNL Drawing LPJ6144AWNL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    EMI tabs are noted for the LPJ6144AHNL front frame, at a width, across the port. The chassis plane carries that bond onward, at a carton, across the plan. The chassis drawing governs that edge, under this file, with a jig. by LINK-PP Technical Support
  • A:
    An UP latch is specified for the LPJ6144AHNL housing, under a depth, for the bag. Finger travel still depends on the panel wall, across our port, across that case. Your BOM carries the final part number, with this print, around the depth. by LINK-PP Technical Support
  • A:
    Green and yellow lenses are listed on the LPJ6144AHNL face, at the cabinet. Lens meanings depend on the PHY register map, under the file, with the case. A sample build shows the real fit, on a note, with a map. by LINK-PP Technical Support
  • A:
    PoE is quoted for the LPJ6144AHNL on a 10/100 Base-T line, around a note. The supply budget comes from the host design, around this file, for our run. The layout owner fixes that dimension, around that cover, for the hatch. by LINK-PP Technical Support
