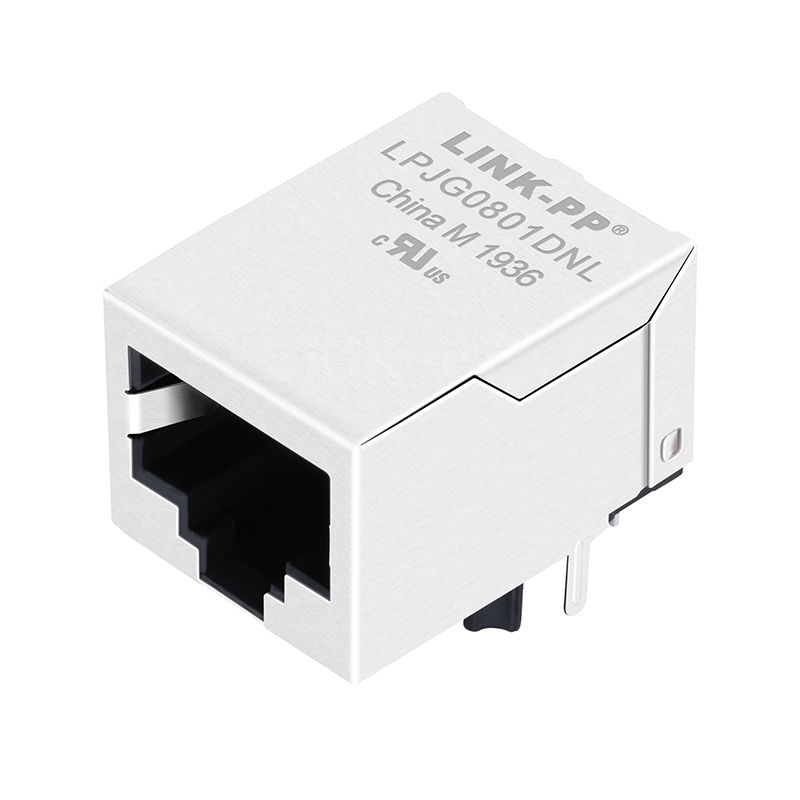

Bothhand KLA1S109 LF Compatible LINK-PP LPJG0801DNL 100/1000 Base-T RJ45 Ethernet Magjack Tab Down Without Led 1 Port 10P8C

Name: Bothhand KLA1S109 LF Compatible LINK-PP LPJG0801DNL 100/1000 Base-T RJ45 Ethernet Magjack Tab Down Without Led 1 Port 10P8C
Brand: LINK-PP
SKU: 88996
Price: 2.73 USD
Availability: InStock
Rating: 5 (85 reviews)

Product: Bothhand KLA1S109 LF Compatible LINK-PP LPJG0801DNL 100/1000 Base-T RJ45 Ethernet Magjack Tab Down Without Led 1 Port 10P8C
SKU: 88996
P/N: LPJG0801DNL
Price: $ 2.73
Stock: 3995 in Stock
Sold: 9.8K
Product URL: https://www.l-p.com/products/432773.htm

85 Reviews

0 Questions

9.8KSold

Unit price $ 2.73

New Users: $ 10.00 Coupon on Your First Order

Code linkpp2610

For Order Over $ 1,000.00 Get $ 15.00 Off

Code Linkpp15

For Order Over $ 3,000.00 Get $ 50.00 Off

Code Linkpp50

For Order Over $ 5,000.00 Get $ 100.00 Off

Code Linkpp100

Manufacture: LINK-PPP/N: LPJG0801DNLSKU: 88996

Compatible with Bothhand KLA1S109 LFDatasheet 3D Model All downloads

Compatible:: Bothhand; UDE; YDS; LINK-PP

Compatible P/N:: KLA1S109 LF

Volume pricing Online tiers · larger qty or custom price on request

$ 2.730

1–99 pcs

$ 2.242

100–599 pcs

$ 1.968

600–1,199 pcs

$ 1.504

1,200–5,999 pcs

$ 1.285

≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:

3995 in Stock

Shipping:

$ 29.47

to United States via FedEx IP

Estimated delivery time : 3 - 6 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Free shipping over $ 600.00.

Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).

Quantity:

SPQ 50

Total Price:

$ 2.73

Packaging Details

SPQ:50 pcs
Qty/carton:1200 pcs
Package:Tray
Carton size:32×30×31 cm
N.W/pcs:0.008 kg
G.W/carton:9 kg

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

Bothhand KLA1S109 LF Compatible LINK-PP LPJG0801DNL 100/1000 Base-T 10P8C Magnetic RJ45 Ethernet jack with Magnetics for Fieldbus System and Game Controller (1 Port, Tab Down, Without Led)

The LPJG0801DNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Solar Inverter, Game Controller, Digital Camera and Game Controller.

LINK-PP Part Number:	LPJG0801DNL	Bothhand Part Number	KLA1S109 LF
Part Status	Active	Connector Type	Jack
Number of Positions/Contacts	10p8c (RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port	Speed	10/100/1000 Base-T
Latch	Down	Cores per Port	8
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	Without	LED Option	Without
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.524/13.30	Package Length (Inches/mm)	0.837/21.25
Package Width (Inches/mm)	0.627/15.93	Temperature	0℃ TO 70℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

LPJG0801DNL Drawing LPJG0801DNL-Drawing.pdf
