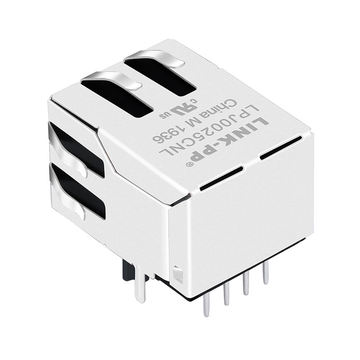

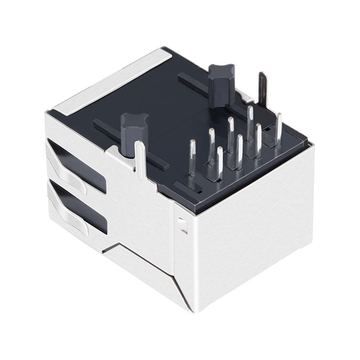

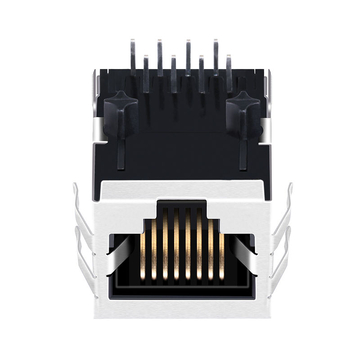

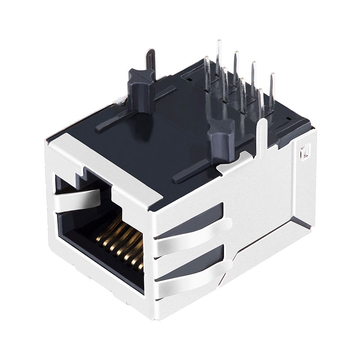

RB1-105B1A1F Compatible LINK-PP LPJ0025CNL 10/100 Base-T Tab Down Without Led Single Port Industrial RJ-45 Network Connector

Name: RB1-105B1A1F Compatible LINK-PP LPJ0025CNL 10/100 Base-T Tab Down Without Led Single Port Industrial RJ-45 Network Connector
Brand: LINK-PP
SKU: 117823
Price: 2.13 USD
Availability: InStock
Rating: 5 (62 reviews)

Product: RB1-105B1A1F Compatible LINK-PP LPJ0025CNL 10/100 Base-T Tab Down Without Led Single Port Industrial RJ-45 Network Connector
SKU: 117823
P/N: LPJ0025CNL
Price: $ 2.13
Stock: 1258 in Stock
Sold: 22K
Product URL: https://www.l-p.com/products/432632.htm

62 Reviews

0 Questions

22KSold

Unit price $ 2.13

New Users: $ 10.00 Coupon on Your First Order

Code linkpp2610

For Order Over $ 1,000.00 Get $ 15.00 Off

Code Linkpp15

For Order Over $ 3,000.00 Get $ 50.00 Off

Code Linkpp50

For Order Over $ 5,000.00 Get $ 100.00 Off

Code Linkpp100

Manufacture: LINK-PPP/N: LPJ0025CNLSKU: 117823

Compatible with Taimag RB1-105B1A1FDatasheet 3D Model All downloads

Compatible:: Bothhand; Taimag; X Mutiple; XFMRS

Compatible P/N:: RB1-105B1A1F; RJ-001

Volume pricing Online tiers · larger qty or custom price on request

$ 2.130

1–99 pcs

$ 1.743

100–599 pcs

$ 1.530

600–1,199 pcs

$ 1.169

1,200–5,999 pcs

$ 0.999

≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:

1258 in Stock

Shipping:

$ 29.47

to United States via FedEx IP

Estimated delivery time : 3 - 6 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Free shipping over $ 600.00.

Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).

Quantity:

SPQ 50

Total Price:

$ 2.13

Packaging Details

SPQ:50 pcs
Qty/carton:1200 pcs
Package:Tray
Carton size:32×30×31 cm
N.W/pcs:0.007 kg
G.W/carton:8.5 kg

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

RB1-105B1A1F Compatible LINK-PP LPJ0025CNL 10/100 Base-T Industrial RJ-45 Network Connector for Industrial PC and Video Recorder (Single Port, Tab Down, Without Led)

The LPJ0025CNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Media Player, Industrial PC, Set-top Box and Intercom.

LINK-PP Part Number:	LPJ0025CNL	Taimag Part Number	RB1-105B1A1F
Part Status	Active	Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port	Speed	10/100 Base-T
Latch	Down	Cores per Port	5
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Without
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.524/13.30	Package Length (Inches/mm)	0.837/21.25
Package Width (Inches/mm)	0.627/15.93	Temperature	0 TO 70℃
Bst Circuit	YES	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

RJ45 Female Connector
