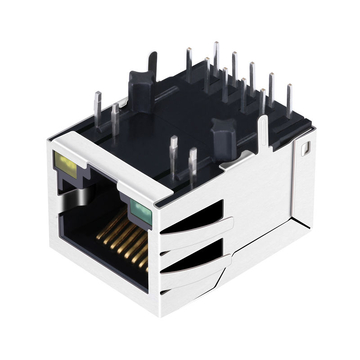

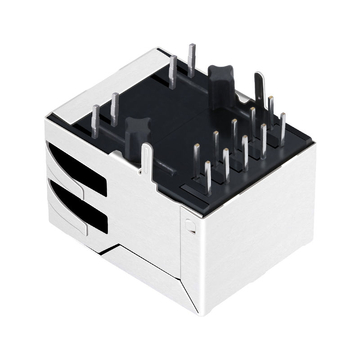

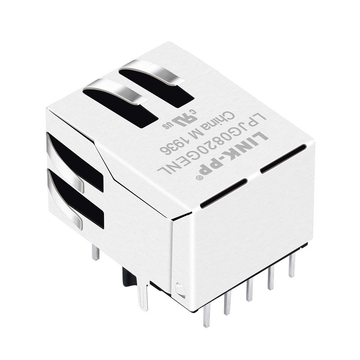

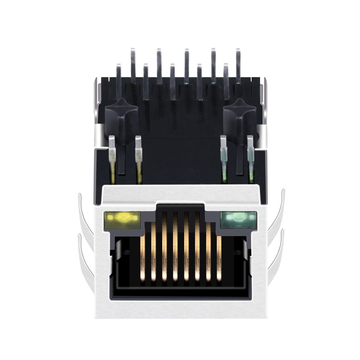

Amphenol RJMG2B32131012R Compatible LINK-PP LPJG0820GENL 100/1000 Base-T Tab Down Green/Yellow Led 1 Port 10 Pin RJ-45 Magjack Connector

Name: Amphenol RJMG2B32131012R Compatible LINK-PP LPJG0820GENL 100/1000 Base-T Tab Down Green/Yellow Led 1 Port 10 Pin RJ-45 Magjack Connector
Brand: LINK-PP
SKU: 88595
Price: 2.95 USD
Availability: InStock
Rating: 5 (108 reviews)

Product: Amphenol RJMG2B32131012R Compatible LINK-PP LPJG0820GENL 100/1000 Base-T Tab Down Green/Yellow Led 1 Port 10 Pin RJ-45 Magjack Connector
SKU: 88595
P/N: LPJG0820GENL
Price: $ 2.95
Stock: 1200 in Stock
Sold: 103.2K
Product URL: https://www.l-p.com/products/432455.htm

108 Reviews

3 Questions

103.2KSold

Unit price $ 2.95

New Users: $ 10.00 Coupon on Your First Order

Code linkpp2610

For Order Over $ 1,000.00 Get $ 15.00 Off

Code Linkpp15

For Order Over $ 3,000.00 Get $ 50.00 Off

Code Linkpp50

For Order Over $ 5,000.00 Get $ 100.00 Off

Code Linkpp100

Manufacture: LINK-PPP/N: LPJG0820GENLSKU: 88595

Compatible with Amphenol RJMG2B32131012RDatasheet 3D Model All downloads

Compatible:: LINK-PP; Amphenol; Belfuse; Pulse

Compatible P/N:: RJMG2A321A101NR; RJMG2B32131012R

Volume pricing Online tiers · larger qty or custom price on request

$ 2.950

1–99 pcs

$ 2.422

100–599 pcs

$ 2.127

600–1,199 pcs

$ 1.625

1,200–5,999 pcs

$ 1.388

≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:

1200 in Stock

Shipping:

$ 29.47

to United States via FedEx IP

Estimated delivery time : 3 - 6 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Free shipping over $ 600.00.

Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).

Quantity:

SPQ 50

Total Price:

$ 2.95

Packaging Details

SPQ:50 pcs
Qty/carton:1200 pcs
Package:Tray
Carton size:32×30×31 cm
N.W/pcs:0.008 kg
G.W./carton:9 kg

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

Amphenol RJMG2B32131012R Compatible LINK-PP LPJG0820GENL 100/1000 Base-T 10 Pin RJ-45 Magjack Connector for Automation and Solar Inverter (1 Port, Tab Down, Green/Yellow Led)

The LPJG0820GENL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Fieldbus System, Embedded Main Board, New Energy and Solar Inverter.

LINK-PP Part Number:	LPJG0820GENL	Amphenol Part Number	RJMG2B32131012R
Part Status	Active	Connector Type	Jack
Number of Positions/Contacts	10p8c (RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port	Speed	10/100/1000 Base-T
Latch	Down	Cores per Port	8
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Green/Yellow
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.524/13.30	Package Length (Inches/mm)	0.837/21.25
Package Width (Inches/mm)	0.627/15.93	Temperature	0℃ TO 70℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C
