RD1-1D6B8K1A compatible link-pp lpj4011bbnl 10 100 base-t rj45 connector with integrated magnetics tab down green yellow led

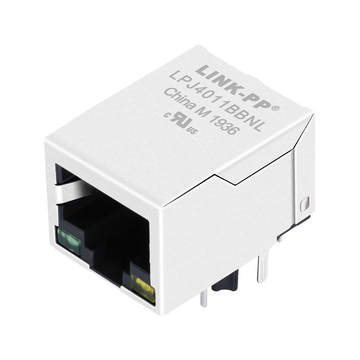

RD1-1D6B8K1A Compatible LINK-PP LPJ4011BBNL 10/100 Base-T rj45 connector with integrated magnetics Tab Down Green/Yellow Led

Product summary

Product
RD1-1D6B8K1A Compatible LINK-PP LPJ4011BBNL 10/100 Base-T rj45 connector with integrated magnetics Tab Down Green/Yellow Led
SKU
169800
P/N
LPJ4011BBNL
Price
$ 2.29
Stock
1090 in Stock
Sold
23.5K
Unit price $ 2.29
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ4011BBNLSKU: 169800

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
LINK-PP
Volume pricing Online tiers · larger qty or custom price on request
$ 2.290
1–99 pcs
$ 1.880
100–599 pcs
$ 1.651
600–1,199 pcs
$ 1.261
1,200–5,999 pcs
$ 1.078
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1090 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 2.29
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.007 kg
8.5 kg

RD1-1D6B8K1A Compatible LINK-PP LPJ4011BBNL 10/100 Base-T rj45 connector with integrated magnetics for Solar Inverter and Embedded Main Board (1 Port, Tab Down, Green/Yellow Led)


The LPJ4011BBNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Digital Camera, Server and Embedded Main Board.



LINK-PP Part Number:
LPJ4011BBNL Other Part Number RD1-1D6B8K1A
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
Down Cores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Green/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.528/13.40Package Length (Inches/mm)

0.836/21.30

Package Width (Inches/mm)
0.626/15.90Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
