Integrated RJ45 Connector
Single Port RJ45 Connector
10/100 Base-T RJ45 Connector
85990

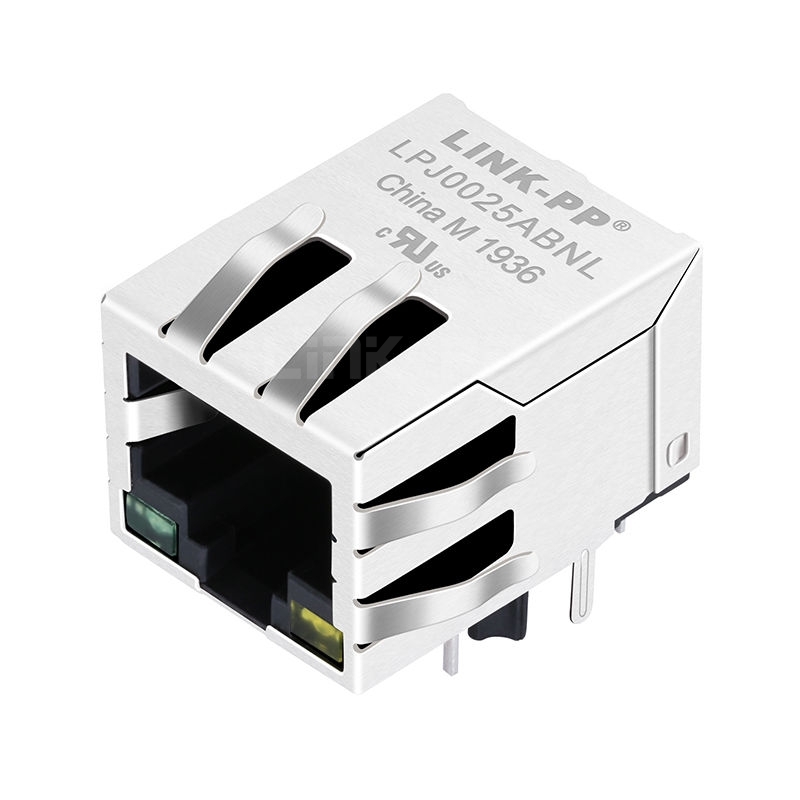

Pulse J1B121ZDD Compatible LINK-PP LPJ0025ABNL 10/100 Base-T Tab Down Green/Yellow Led 1 Port Right Angle PCB RJ45 Female Jack

Pulse J1B121ZDD Compatible LINK-PP LPJ0025ABNL 10/100 Base-T Tab Down Green/Yellow Led 1 Port Right Angle PCB RJ45 Female Jack

#85990

{{detail_data.prodInfo.name}}

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

  •
{{comment.count}} Reviews
{{detail_data.feedbacks.count}} Questions
Request Stock
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}
Free shipping on orders over US$ 600.
Qty (pcs) :
Unit Price :
1
$ 2.15
100
$ 1.64
600
$ 1.29
1200
$ 1.04
6000
$ 0.93
Manufacture: LINK-PP
P/N: LPJ0025ABNL
Compatible:
Bothhand
Pulse
Competitor P/N:
J1B121ZDD
L/T(In stock):
5-7 days
L/T(out of stock):
4-6 weeks
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details
Stock:
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
undeliverable
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}
Packaging Details:
0.007kg
Tray
50pcs
1200pcs
32*30*31cm
8.5kg
Add to wish

Pulse J1B121ZDD Compatible LINK-PP LPJ0025ABNL 10/100 Base-T Right Angle PCB  RJ45 Female Jack for Monitoring System and Smart Meters (1 Port, Tab Down, Green/Yellow Led)


The LPJ0025ABNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Industrial PC, Hub and Smart Meters.


LINK-PP Part Number:
 LPJ0025ABNL Pulse Part Number J1B121ZDD
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
Down Cores per Port
5
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.524/13.30Package Length (Inches/mm)

0.837/21.25

Package Width (Inches/mm)
0.627/15.93Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. PCB RJ45 Female Jack
