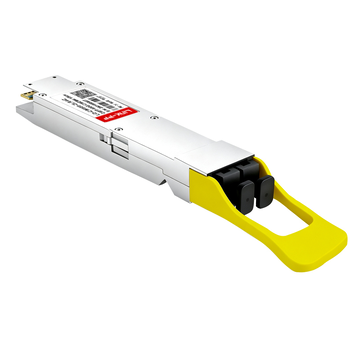

FS OSFP800-2LR4-A2 Compatible LINK-PP 800G 2LR4 OSFP CWDM Transceiver Module (SMF, 1271nm, 1291nm, 1311nm and 1331nm, 10km, Dual Duplex LC, DOM, IHS/Closed Finned Top) The FS OSFP800-2LR4-A2 Compatible LINK-PP OSFP transceiver supports up to 10km link lengths over single-mode fiber (SMF) via dual LC connectors. This transceiver is compliant with IEEE 802.3ck, OSFP MSA and CMIS Rev 5.0 standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 800G Ethernet, Breakout 2x 400G LR4 and Data Center

FS OSFP-400G-FR4 Compatible LINK-PP 400GBASE-FR4 OSFP 8 x 50G PAM4 Transceiver Module(SMF, 1310nm, 2km, Duplex LC, DOM) The FS OSFP-400G-FR4 Compatible LINK-PP 400G FR4 OSFP transceiver modules are designed for use in 400 Gigabit Ethernet links on up to 2km of single mode fiber. They are compliant with the OSFP MSA, IEEE P802.3cu4 and portions of P802.3bs5. Digital diagnostic functions are available via the I2C interface, as specified by the OSFP MSA. FS Part NumberOSFP-400G-FR4Vendor NameLINK-PP Form Factor OSFP Max Data Rate 400Gbps Max Cable Distance 2km

Generic 400GBASE-LR4 Compatible LINK-PP 400G QSFP-DD Specifications The Generic 400GBASE-LR4 Compatible LINK-PP module is a high-performance 400G QSFP-DD optical transceiver engineered for demanding data communication environments. It translates eight channels of 53.125Gb/s electrical input into four lanes of 106.25Gb/s optical signals. Compliant with IEEE 802.3bs and QSFP-DD MSA standards, this hot-pluggable module features a single 3.3V power supply and low power consumption. Generic Part Number400GBASE-LR4Vendor NameLINK-PP Max Data Rate 425Gbps Form Factor

Juniper QDD-ER4L-400G Compatible LINK-PP 400G ER4 QSFP-DD 8 x 50G PAM4 Transceiver Module (SMF, 1310nm, 30km, Duplex LC, DOM)  The Juniper QDD-ER4L-400G Compatible LINK-PP module is a 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP-DD) optical module designed for optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of LAN-WDM optical signals, and multiplexes them into a single channel for 400Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 4

Juniper QSFP112-FR4-400G Compatible LINK-PP 400G QSFP112 Specifications QSFP112-FR4-400G is an advanced 400G QSFP112 transceiver designed to operate as a 4 x 100G PAM4 optical module across CWDM wavelengths (1271nm, 1291nm, 1311nm, and 1331nm), delivering up to 2km of data transmission over single-mode fiber (SMF) under standard commercial conditions (0 to +70°C) while ensuring full compliance with the 100G Lambda MSA 400G-FR4 specification and integrating real-time digital diagnostic monitoring. Juniper Part NumberQSFP112-FR4-400GVendor NameLINK-PP Form Factor

Nokia QDD-ZR-400G Compatible LINK-PP 400G QSFP-DD ZR Multi-Rate Digial Coherent Optical Transceiver (SMF, 1528.77~1566.52nm, ≤120km, Duplex LC, DOM) The Nokia QDD-ZR-400G Compatible LINK-PP QSFP-DD ZR+ modules are low power consumption multi-rate and interoperable coher-ent optical transceivers, which can be plugged into various routing, switching, and optical transport host platforms.QSFP-DD ZR+ modules support a total capacity of 25.6Tbit/s through 75 GHz- spaced DWDM within C-band. They are compliant with Open ZR+ MSA technical spec- ifications. Digital diagnostics

NVIDIA/Mellanox OSFP-LR4-400G Compatible LINK-PP 400GBASE-LR4 OSFP 8 x 50G PAM4 Transceiver Module (SMF, 1271nm, 1291nm, 1311nm and 1331nm, 10km, Duplex LC, DOM, IHS/Finned Top) The NVIDIA/Mellanox OSFP-LR4-400G Compatible LINK-PP module is an eight-channel electrical, four-channel optical, pluggable, single-mode fiber, OSFP transceiver for 400G Ethernet applications. It converts eight host electrical data lanes in each direction at 53.125Gbps into four optical lanes at 106.25Gbps, and multiplexes them into one single-mode fiber for 425Gb/s optical transmission.Each

Juniper QDD-2X400G-FR4-P Compatible LINK-PP 800GBASE-2FR4 QSFP-DD 8 x 100G PAM4 Transceiver Module (SMF, 1271nm, 1291nm, 1311nm and 1331nm, 2km, Dual Duplex LC, DOM) The Juniper QDD-2X400G-FR4-P Compatible LINK-PP Optical Transceiver Module is designed for 800GBASE Ethernet throughput up to 2km over eight pairs of singlemode fiber (SMF) with Dual Duplex LC/UPC connectors. This transceiver is compliant with IEEE P802.3ck, IEEE 802.3cu, QSFP- DD MSA. This module has 2 duplex LC connectors, enabling 2 physically distinct 400G FR4 links from each 800G transceiver without the need

Juniper QDD-2X400G-LR4-P Compatible LINK-PP 800GBASE-2LR4 QSFP-DD 8 x 100G PAM4 Transceiver Module (SMF, 1271nm, 1291nm, 1311nm and 1331nm, 10km, Dual Duplex LC, DOM) The Juniper QDD-2X400G-LR4-P Compatible LINK-PP 800GBASE-2LR4 QSFP-DD Optical Transceiver Module is designed for 800GBASE Ethernet throughput up to 10km over eight pairs of singlemode fiber (SMF) with Dual Duplex LC/ UPC connectors. This transceiver is compliant with IEEE P802.3df-2024, IEEE 802.3-2022, QSFP-DD MSA. This module has 2 duplex LC connectors,enabling 2 physically distinct 400G L R4 links from

Cisco QDD-ER8-400G Compatible LINK-PP 400G QSFP-DD PAM4 LWDM ER8 Transceiver Module (SMF, 1310nm, 40km, LC, DOM)  The Cisco QDD-ER8-400G Compatible LINK-PP module is a transceiver module designed for 40km optical communication applications, and it is compliant to 50G Lambda MSA standard. This module can convert 8-channel 53.125Gb/s electrical data to 8-channel optical signals, and multiplex them into a single channel for 425Gb/s optical transmission. Similarly, it optically de-multiplexes a 425Gb/s input into 8-channel signals, and converts them to 8-channel output

NVIDIA/Mellanox QDD-LR8-400G Compatible LINK-PP 400GBASE-LR8 QSFP-DD 8 x 50G PAM4  Transceiver Module (SMF, 1310nm, 10km, LC, DOM)  The NVIDIA/Mellanox QDD-LR8-400G Compatible LINK-PP module is a transceiver module designed for 10km optical communication applications, and it is compliant to 50G Lambda MSA standard. This module can convert 8-channel 53.125Gb/s electrical data to 8- channel optical signals, and multiplex them into a single channel for 425Gb/s optical transmission. Similarly, it optically de-multiplexes a 425Gb/s input into 8-channel signals, and converts them to 8

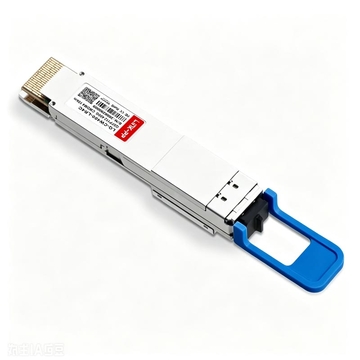

Generic QSFP112-LR4-400G Compatible LINK-PP 400G QSFP112 Transceiver Module(SMF, 1310nm, 10km, Duplex LC, DOM) The Generic QSFP112-LR4-400G Compatible LINK-PP module is a 400Gb/s QSFP112 optical module designed for 10km optical communication applications. The module converts 4 channels of 100Gb/s (PAM4) electrical input data to 4 channels of CWDM optical signals and multiplexes them into a single channel for 400Gb/s optical transmission. on the receiver side, the module optically de-multiplexes a 400Gb/s optical input into 4 channels of CWDM optical signals and converts
