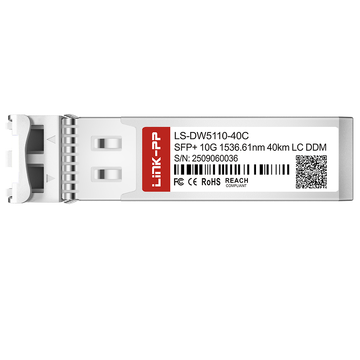

The HPE DWDM-SFP10G-36.61-40 Compatible LINK-PP module is an advanced 10G DWDM SFP+ transceiver optimized for dense wavelength division multiplexing systems. Featuring a Cooled EML laser and PIN photodiode, it supports up to 10.7Gbps data rates. Operating flawlessly on ITU channel 51, this commercial-grade optical module delivers highly reliable 40km single-mode fiber connectivity.
HPE Part Number
DWDM-SFP10G-36.61-40
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1536.61nm
Max Cable Distance
40km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
PIN
TX Power
-1 to +2dBm
RX Power
-16 to -1dBm
DDM/DOM
Supported
Receiver Sensitivity
-15.5dBm
Operating Temperature Range
0°C to +70°C
Protocols
SFP+ MSA, CPRI, eCPRI, SFF-8472, SFF-8431
Key Features of HPE DWDM-SFP10G-36.61-40 Compatible LINK-PP 10G DWDM SFP+
Explore the primary benefits of the HPE DWDM-SFP10G-36.61-40 Compatible LINK-PP optical transceiver. Built for efficient 10Gbps networking, this hot-pluggable SFP+ module operates on a single 3.3V power supply. It ensures cost-effective, high-capacity fiber communication, delivering seamless plug-and-play performance for enterprise switches and telecom infrastructures.
The HPE DWDM-SFP10G-36.61-40 Compatible LINK-PP operates as a high-performance 10G SFP+ optical module for demanding networks. Compliant with SFF-8472 MSA standards, it guarantees superior 10Gbps transmission, offering low latency and exceptional stability for enterprise data centers.
DWDM-SFP10G-36.61-40: 10G Connectivity for Switch Distribution Links
Enhance your core infrastructure with the DWDM-SFP10G-36.61-40 transceiver. Designed specifically for robust 10G connectivity across switch distribution links, it reliably routes high-speed data between network racks, eliminating bottlenecks and maintaining steady bandwidth performance.
DWDM-SFP10G-36.61-40 Module with DWDM Technology for Fiber Efficiency
Optimize your optical infrastructure using the DWDM-SFP10G-36.61-40 transceiver featuring advanced DWDM technology. By transmitting multiple signal channels over a single fiber pair, this 10G SFP+ module massively increases network capacity without costly physical cable upgrades.
DWDM-SFP10G-36.61-40 Module with 1536.61nm Wavelength
Broadcasting on the exact 1536.61nm wavelength at 195.1 THz, the DWDM-SFP10G-36.61-40 perfectly matches ITU channel 51. This specific C-band DWDM frequency ensures flawless signal integrity and minimizes crosstalk in densely packed wavelength division multiplexing systems.
Engineered for metropolitan networks, the DWDM-SFP10G-36.61-40 provides reliable 40km transmission over standard single-mode fiber. The integrated Cooled EML transmitter ensures long-range 10G optical links maintain excellent data fidelity without requiring intermediate signal amplification devices.
DWDM-SFP10G-36.61-40 Module with Duplex LC Interface
The hot-swappable DWDM-SFP10G-36.61-40 includes an industry-standard duplex LC interface for secure optical connections. This universally recognized receptacle ensures seamless compatibility with standard fiber patch cables, allowing rapid network deployment and straightforward infrastructure upgrades.
DWDM-SFP10G-36.61-40 Module with DOM for Real-Time Monitoring
Manage your network proactively with the built-in Digital Optical Monitoring capability of the DWDM-SFP10G-36.61-40 module. Administrators can track crucial real-time metrics, including temperature, laser bias current, and optical power levels, ensuring continuous system health.
The HPE DWDM-SFP10G-36.61-40 Compatible LINK-PP 10G SFP+ strictly adheres to comprehensive global compliance standards, assuring supreme safety and environmental reliability for all enterprise and telecommunication network applications.
Each DWDM-SFP10G-36.61-40 optical transceiver must pass an exhaustive quality testing program. We simulate heavy data loads to ensure completely error-free 10Gbps transmission before customer delivery.
DWDM-SFP10G-36.61-40 Quality Certifications
Highlighting exceptional manufacturing integrity, the DWDM-SFP10G-36.61-40 proudly maintains essential industry certifications including CE, FCC, UKCA, UL, and REACH, verifying its safe and eco-friendly component design.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
DWDM-SFP10G-36.61-40 Certified for Reliable Host-Device Compatibility
The DWDM-SFP10G-36.61-40 is meticulously certified to guarantee excellent host-device compatibility. It integrates flawlessly into major OEM routers and switches, eliminating connectivity errors and vendor restrictions.
Advanced diagnostic evaluations are systematically performed on every 10G SFP+ transceiver, ensuring maximum durability, stable performance, and error-free fiber optic communication.
Optical Spectrum Test
Verifies the 1536.61nm DWDM wavelength precision and ensures high side-mode suppression performance.
Eye Pattern Test
Examines 10Gbps signal clarity to confirm minimal jitter and perfect transmission integrity.
Bit Error Rate Test
Validates sustained 10G data flow over extended periods to guarantee zero packet loss.
Temperature Test
Confirms the commercial-grade DWDM-SFP10G-36.61-40 operates flawlessly between 0°C and +70°C environments.
Product Shipping for HPE DWDM-SFP10G-36.61-40 Compatible LINK-PP 10G SFP+
We guarantee the HPE DWDM-SFP10G-36.61-40 Compatible LINK-PP 10G SFP+ is securely packaged and rapidly dispatched, ensuring your critical networking hardware arrives in pristine condition.
Anti-Static Protective Packaging
Every optical module is hermetically sealed in premium anti-static shielding bags.
Deploying the HPE DWDM-SFP10G-36.61-40 Compatible LINK-PP module is incredibly simple. Just plug the hot-swappable transceiver into a compatible SFP+ port, attach standard duplex LC fiber cords, and immediately achieve a powerful 10Gbps long-distance DWDM network link.
DWDM-SFP10G-36.61-40 Technical Support
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Pre-Sales Technical Consultation
Professional technical guidance to help customers select the most suitable DWDM-SFP10G-36.61-40 modules based on network architecture and application requirements.
Compatibility Verification Support
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Deployment & Installation Assistance
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
A:
The LS-DW5110-40C uses a standard Duplex LC connector (separate Tx and Rx fibers) and requires 9/125µm OS2 Single-Mode Fiber (SMF) with UPC polish for links up to 40km. By
admin
A:
Yes, LS-DW5110-40C is fully compliant with SFF-8472 (providing real-time DOM telemetry), SFF-8431, SFP+ MSA, CPRI/eCPRI, RoHS, CE, FCC, and FDA/IEC 60825-1 Class I Laser Safety standards. By
admin
A:
Yes, 100%. Because LS-DW5110-40C adheres strictly to the 100GHz ITU-T Channel C51 (1536.61nm) center wavelength and IEEE 10GBASE-DWDM optical specs, it links seamlessly with an original HPE or Cisco C51 transceiver on the far end. By
admin
A:
Yes, orders of 20+ units qualify for our enterprise volume discount tier. We also support net-term invoicing and fast project quoting for healthcare, education, and carrier customers. By
admin
A:
Yes! While the standard LS-DW5110-40C operates from 0°C to +70°C, we can provide the industrial wide-temperature LS-DW5110-40I (-40°C to +85°C) designed specifically for trackside, utility, and outdoor telecom cabinets. By
admin
Please write comments with more than three
character.
497763
574627
O***n
Mexico
Verified
Purchase
5 .0
2026-09-05
Full compliance with SFP+ MSA and SFF-8431 made bulk deployment across our Extreme data center racks effortless, with smooth Duplex LC latching and zero vendor compatibility warnings.
Please write comments with more than three
character.
497763
574622
V***h
United Kingdom
Verified
Purchase
5 .0
2026-08-31
Put eight LS-DW5110-40C modules into HPE and Cisco line cards on C51 1536.61nm for our 40km metro fiber ring, and DOM diagnostics report +1.0 dBm Tx and -12.6 dBm Rx consistently
