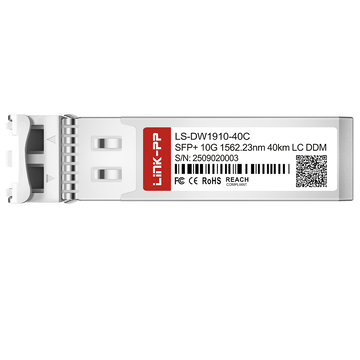

DWDM-SFP10G-62.23-40 functions as a fixed-wavelength 10G SFP+ DWDM transceiver operating on the C-band C19 grid (1562.23nm) with 100GHz channel spacing. Leveraging an internal cooled EML laser and PIN photodetector, the module enables robust single-mode fiber reach up to 40km while providing real-time digital diagnostic telemetry.
HPE Part Number
DWDM-SFP10G-62.23-40
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1562.23nm
Max Cable Distance
40km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
PIN
TX Power
-1 to +2dBm
RX Power
-16 to -1dBm
Receiver Sensitivity
-15.5dBm
DDM/DOM
Supported
Operating Temperature Range
0 to 70°C
Protocols
SFP+ MSA, CPRI, eCPRI, SFF-8472, SFF-8431
Key Features of HPE DWDM-SFP10G-62.23-40 Compatible LINK-PP 10G SFP+
HPE DWDM-SFP10G-62.23-40 Compatible LINK-PP module is a 10G DWDM SFP+ module engineered for reliable 40km single-mode fiber transport. It integrates dense wavelength division multiplexing at 1562.23nm with standard duplex LC optics and real-time digital diagnostics to simplify fiber capacity expansion.
These WDM transceivers feature a hot-pluggable SFP+ footprint that allows seamless installation without shutting down host switches or routers. They fully comply with the SFP+ MSA standard to ensure smooth physical and electrical compatibility with multi-vendor networking systems.
DWDM-SFP10G-62.23-40: 10 Gbps Connectivity for Point-to-Point WDM Links
The module provides dedicated 10Gbps data rates to handle bandwidth-intensive traffic across point-to-point topologies. It serves as a dependable uplink interface for metro aggregation, campus core links, and enterprise interconnects requiring continuous wire-speed throughput.
DWDM-SFP10G-62.23-40 Module with DWDM Technology for Fiber Efficiency
Dense wavelength division multiplexing enables multiple optical channels to transmit simultaneously over a single existing optical fiber pair. This 100GHz grid design helps operators overcome fiber scarcity and multiply total link capacity without laying new cables.
DWDM-SFP10G-62.23-40 Module with 1562.23nm Wavelength
Fixed-channel optical transmission operates precisely on the ITU C-band channel C19 at 1562.23nm. A built-in cooled EML laser maintains tight wavelength stability and prevents spectral drift under standard commercial operating conditions.
Long-span optical reach is achieved using a sensitive PIN receiver paired with an optimized optical power budget. It easily covers intermediate link distances up to 40km across standard G.652 single-mode fiber without extra amplification.
DWDM-SFP10G-62.23-40 Module with Duplex LC Interface
The optical connector adopts an industry-standard duplex LC receptacle for simple, space-saving fiber patch cable mating. Its familiar latching design guarantees secure optical alignment and low insertion loss in high-density rack environments.
DWDM-SFP10G-62.23-40 Module with DOM for Real-Time Monitoring
Digital optical monitoring (DOM) delivers continuous telemetry data directly to network administrators through an internal two-wire serial interface. Compatible with SFF-8472 digital diagnostic functions, it enables real-time tracking of optical power, operating temperature, laser bias current, and supply voltage.
HPE DWDM-SFP10G-62.23-40 Compatible LINK-PP DWDM SFP+ complies with global industry standards including ISO 9001, CE, RoHS, and FCC to ensure safety and environmental compliance. Every transceiver is fully certified for dependable enterprise deployment.
Each 10G DWDM SFP+ module undergoes strict optical parameter validation and traffic load testing before shipping. This process guarantees low bit-error rates under daily operation.
DWDM-SFP10G-62.23-40 Quality Certifications
These WDM transceivers adhere to stringent manufacturing controls and international trade requirements. It delivers proven build quality across various commercial network installations.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
DWDM-SFP10G-62.23-40 Certified for Reliable Host-Device Compatibility
Comprehensive switch-interoperability tests confirm seamless plug-and-play operation across leading networking brands. This verification prevents port recognition errors and avoids configuration issues.
LINK-PP inspects every DWDM SFP+ transceiver through comprehensive physical layer diagnostics to eliminate link failures. Explore our complete validation procedures at the LINK-PP Test Support Center.
Optical Spectrum Test
Measure center emission wavelength accuracy and suppress adjacent channel crosstalk.
Eye Pattern Test
Inspect signal jitter margin and rise-fall optical waveform transition shapes.
Bit Error Rate Test
Detect payload data stream continuity without packet corruption under stress.
Temperature Test
Validate operational stability across commercial thermal ranges without degradation.
Product Shipping for HPE DWDM-SFP10G-62.23-40 Compatible LINK-PP 10G SFP+
Each 10G SFP+ DWDM transceiver module is carefully prepared using standardized packaging methods to prevent transit damage. Orders are handled promptly to ensure safe, on-schedule delivery worldwide.
Anti-Static Protective Packaging
Protect sensitive optical components against electrostatic discharge risks during handling.
Shock-Resistant Transport Protection
Shield delicate transceiver optics from unexpected drops and transit impacts.
Fast Order Processing and Dispatch
Speed up internal order handling to reduce overall customer lead times.
Global Logistics and International Delivery
Ship items via dependable freight carriers to enterprise destinations worldwide.
Simply slide the DWDM-SFP10G-62.23-40 DWDM SFP+ into the switch port and mate with standard LC fiber to achieve instant optical alignment. Engineered for point-to-point WDM links, this module enables direct, high-capacity 10G transmission between remote sites, optimizing existing fiber infrastructure across dedicated data center interconnects.
DWDM-SFP10G-62.23-40 Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal DWDM-SFP10G-62.23-40 module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
A:
Using a standard one-click optical cleaner before mating is usually recommended for optimal transmission quality. Even minor dust particles on the ferrule can increase insertion loss and cause premature link errors. By
admin
A:
The all-metal housing is designed to shield internal optical components from external EMI often generated by neighboring power supplies. It typically assists in minimizing electrical noise crosstalk between crowded top-of-rack switch cages. By
admin
A:
Yes, the built-in DDM interface reports live receive power back to your network management system. This allows you to set up threshold alerts before line degradation impacts packet delivery. By
admin
These were used to add capacity to an existing 100GHz DWDM system without pulling another fiber cable. We appreciate the EML/PIN design and the available DOM data. After installation, both ends showed acceptable receive levels, and the link has been quiet in monitoring =).
Please write comments with more than three
character.
497013
514095
B***d
Mexico
Verified
Purchase
5 .0
2026-05-11
Good option for extending 10GbE between two campus equipment rooms over existing single-mode fiber. We use the 100GHz DWDM channel plan, so having the correct C19 wavelength saved us from adding more fiber. Plugged in, patched the LC pair, and it was online :D
Please write comments with more than three
character.
497013
514086
G***r
Republic of Korea
Verified
Purchase
5 .0
2026-02-27
We needed a 40km 10G single-mode SFP+ DWDM optic for an indoor enterprise network, not an outdoor industrial deployment. This one fit the requirement well. The module stayed within normal temperature readings in our air-conditioned rack, and the LC duplex connection was straightforward ;)
Please write comments with more than three
character.
497013
514093
A***z
Australia
Verified
Purchase
5 .0
2025-12-05
This LS-DW1910-40C DWDM module worked well on our 34km metro fiber path. We checked receive power after installation and stayed within the expected range. The EML transmitter gave us a clean 10G link, with no packet errors seen during our monitoring period.
Please write comments with more than three
character.
497013
514090
E***t
Israel
Verified
Purchase
5 .0
2025-10-08
Upgraded our building distribution switches with this 10G SFP+ optic. DOM readouts report strong optical power on both ends. Really smooth setup experience for our maintenance crew ;)
Please write comments with more than three
character.
497013
514092
H***s
Japan
Verified
Purchase
4 .0
2025-09-17
Module performance and DDM telemetry are spot-on in our switch, though the pull-tab latch felt a bit stiff when unplugging it from a tight rack slot the first time.
Please write comments with more than three
character.
497013
514097
M***g
New Zealand
Verified
Purchase
5 .0
2025-07-23
Good quality EML transmitter on this DWDM transceiver module. Replaced an older failing optic on our cross-campus link, and the optical RX power bounced back to a healthy -9dBm right away :-)
Please write comments with more than three
character.
497013
514094
M***r
Taiwan, Province of China
Verified
Purchase
5 .0
2025-06-19
Bought several for an indoor rack-to-rack DWDM transport project. The duplex LC ports made patching simple, and the modules reported temperature, voltage, and optical power readings through DOM. Helpful for routine checks before a small optical issue becomes a bigger problem.
Please write comments with more than three
character.
497013
514089
A***s
Poland
Verified
Purchase
5 .0
2025-04-03
Needed a reliable 1562.23nm DWDM transceiver for a campus fiber run between two main buildings. Snapped into the switch cage without issues and auto-negotiated at full 10Gbps right away. Duplex LC patch clicked in secure and tight. Very happy with it.
Please write comments with more than three
character.
497013
514088
P***n
Argentina
Verified
Purchase
5 .0
2025-03-31
We run this 10G DWDM module for replication traffic between two internal data rooms. It handles the long single-mode fiber span well, while the SFF-8472 diagnostic support helps us track link health. Easy deployment for our network team, and no tuning was needed.
