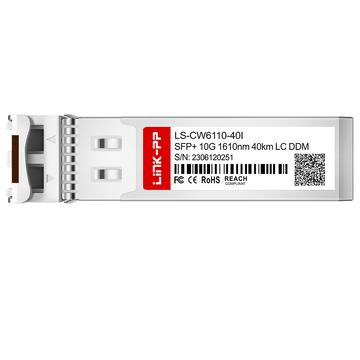

The FS CW-SFP10G40-61-I Compatible LINK-PP module is a high-performance 10G CWDM SFP+ optical transceiver supporting up to 10.7Gbps data rates across 10GBASE-ZR, 10GBASE-ZW, and LTE systems. Featuring a cooled EML 1610nm laser, PIN receiver, single +3.3V power supply, and duplex LC connector, this industrial-grade transceiver operates reliably between -40°C and +85°C across single-mode fiber up to 40km.
Key Features of FS CW-SFP10G40-61-I Compatible LINK-PP 10G CWDM SFP+
Key features of the FS CW-SFP10G40-61-I Compatible LINK-PP 10G CWDM SFP+ transceiver include hot-pluggable SFP+ footprint, SFF-8472 compliance, SFP+ MSA compatibility, cooled EML laser technology, digital optical monitoring (DOM), industrial temperature range from -40°C to +85°C, and 40km reach over SMF.
Engineered for high-density optical networks, the FS CW-SFP10G40-61-I Compatible LINK-PP 10G SFP+ optical module integrates a trans-impedance preamplifier, PIN photodiode, and MCU control unit to deliver cost-effective, high-throughput data transmission compliant with global telecom standards.
CW-SFP10G40-61-I: 10G Connectivity for 5G Wireless Backhaul
Designed for harsh outdoor environments, the industrial-grade CW-SFP10G40-61-I provides high-bandwidth 10G connectivity for 5G, LTE, and CPRI wireless backhaul networks, delivering uninterrupted performance in extreme temperatures ranging from -40°C to +85°C.
CW-SFP10G40-61-I Module with CWDM Technology for Fiber Efficiency
Leveraging advanced Coarse Wavelength Division Multiplexing (CWDM) technology, the CW-SFP10G40-61-I module maximizes existing single-mode optical fiber capacity by allowing multiple data channels to transmit simultaneously over a single fiber strand without infrastructure expansion.
CW-SFP10G40-61-I Module with 1610nm Wavelength
Operating at a precise 1610nm CWDM center wavelength, the CW-SFP10G40-61-I transceiver module utilizes a cooled EML transmitter to ensure minimal spectral width, low chromatic dispersion, and stable signal integrity over long-distance single-mode optical links.
With high optical sensitivity and a robust 15dB link budget, the CW-SFP10G40-61-I module supports up to 40km single-mode fiber transmission, making it an ideal solution for metro Ethernet networks and regional telecommunication infrastructure.
CW-SFP10G40-61-I Module with Duplex LC Interface
The CW-SFP10G40-61-I transceiver features an industry-standard duplex LC receptacle, ensuring seamless connectivity, low insertion loss, and easy integration into patch panels, optical switches, routers, and CWDM multiplexer hardware across network environments.
CW-SFP10G40-61-I Module with DOM for Real-Time Monitoring
Featuring SFF-8472 Digital Optical Monitoring (DOM) via a 2-wire serial interface, the CW-SFP10G40-61-I module provides real-time diagnostic parameters, including laser bias current, supply voltage, operating temperature, and optical input/output power levels.
Every CW-SFP10G40-61-I optical transceiver undergoes a rigorous quality testing program, validating optical performance, signal integrity, network stability, and component durability prior to factory release and customer deployment.
CW-SFP10G40-61-I Quality Certifications
Backed by Class 1 laser safety, RoHS compliance, and ISO-certified manufacturing, the CW-SFP10G40-61-I meets stringent global quality certifications for enterprise networking and telecommunication deployments.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
CW-SFP10G40-61-I Certified for Reliable Host-Device Compatibility
Compliant with SFP+ MSA guidelines, the CW-SFP10G40-61-I module guarantees seamless interoperability across major switches, routers, firewalls, and optical networking devices without EEPROM coding errors or system incompatibilities.
Rigorous multi-stage factory testing guarantees optimal SFP+ performance, ensuring low latency, high optical reliability, and zero packet loss in critical network infrastructure.
Optical Spectrum Test
Verifies precise 1610nm center wavelength accuracy, spectral width, and side-mode suppression ratio.
Eye Pattern Test
Evaluates signal transmitter quality, extinction ratio, and eye mask alignment for distortion-free transmission.
Bit Error Rate Test
Ensures optimal optical sensitivity and BER under 1×10⁻¹² using PRBS 2³¹-1 test patterns.
Temperature Test
Validates stable transceiver thermal performance across harsh industrial temperatures from -40°C to +85°C.
Product Shipping for FS CW-SFP10G40-61-I Compatible LINK-PP 10G SFP+
Our secure shipping framework ensures the FS CW-SFP10G40-61-I Compatible LINK-PP 10G SFP+ module arrives safely, rapidly, and fully protected anywhere around the world.
Anti-Static Protective Packaging
Individual ESD-shielding anti-static packaging protects delicate optoelectronic components during storage.
Shock-Resistant Transport Protection
Custom-molded foam inserts cushion transceivers against physical vibration and impact.
Fast Order Processing and Dispatch
Streamlined warehouse fulfillment ensures immediate order processing and same-day dispatch.
Global Logistics and International Delivery
Reliable global express carriers deliver shipments rapidly with end-to-end tracking.
The FS CW-SFP10G40-61-I Compatible LINK-PP 10G SFP+ module connects directly into SFP+ switch ports. Once inserted and connected via duplex LC fiber, network OS platforms immediately recognize DOM diagnostics for instant link establishment.
CW-SFP10G40-61-I Technical Support
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Pre-Sales Technical Consultation
Professional technical guidance to help customers select the most suitable CW-SFP10G40-61-I modules based on network architecture and application requirements.
Compatibility Verification Support
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Deployment & Installation Assistance
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
A:
Absolutely. We provide tiered volume discounts starting at 100+ and 1,000+ pieces directly on the product page. For larger enterprise infrastructure rollouts, framework contracts, or scheduled batch shipments, our B2B sales team can prepare dedicated project quotations with net payment terms and localized shipping arrangements. By
admin
A:
In-stock transceivers dispatch within 24 to 48 hours, with standard FedEx/DHL express delivery taking roughly 3 to 7 business days to North America and Europe. For larger volume orders or custom-coded batches exceeding immediate warehouse reserves, typical factory production lead times average 4 to 6 weeks with clear tracking visibility. By
admin
A:
Yes. We program our optical transceivers with custom EEPROM coding matched to your host vendor. When placing your order, specify your target switch hardware (such as Cisco, Juniper, Dell, HPE Aruba, Brocade, or Generic MSA), and the modules will arrive plug-and-play with complete CLI recognition, accurate DDM/DOM data readout, and zero "unsupported transceiver" warnings. By
admin
A:
This module requires standard OS2 9/125µm Single Mode Fiber (SMF, ITU-T G.652 compliant) terminated with Duplex LC connectors. To leverage its coarse wavelength division multiplexing capability, route the optic through a passive CWDM Mux/Demux channel port specifically labeled for 1610nm. By
admin
Please write comments with more than three
character.
495825
498594
D***z
Germany
Verified
Purchase
5 .0
2026-05-18
Crucial upgrade for our 10Gbps eCPRI wireless fronthaul nodes. The cooled EML transmitter maintains strict 1610nm wavelength accuracy without chromatic drift even under extreme temperature swings in midwestern summer heat.
Please write comments with more than three
character.
495825
498584
J***s
Italy
Verified
Purchase
5 .0
2026-02-26
Exceptional price-to-performance ratio for metropolitan area networks. Link budget easily spanned our 38km G.652 single-mode path with -14dBm received power, well above the -16dBm sensitivity limit. Highly recommended for network engineers.
Please write comments with more than three
character.
495825
498588
S***r
France
Verified
Purchase
5 .0
2025-12-20
Bench-tested against Cisco OEM optics on our Nexus 9300. Zero CRC errors after a 72-hour soak test, and the -40°C to 85°C rating handles our unconditioned outdoor telecom shelters effortlessly.
