Can we monitor module temperature remotely to prevent failures at hot sites?

Yes. With DOM enabled, supported network equipment can report the module’s temperature and optical power levels. Your NOC can set thresholds to identify overheating, declining received power, or abnormal transmit-power readings before the link is affected.

We’re running an 8-channel CWDM MUX spanning 1470nm to 1610nm — where exactly does this optic patch in?

Patch this transceiver directly into the dedicated 1610nm channel port on your CWDM tray. Just ensure the remote end also uses a 1610nm module on its matching MUX port, as different CWDM wavelengths cannot interoperate.

We are building a CWDM ring for LTE backhaul. Is this module suitable?

Yes. It is suitable for 10Gbps CWDM optical systems and LTE-related optical links, provided the network uses the 1610nm CWDM channel and single-mode fiber.

Breadcrumb: Home; Products; Optics Transceivers | SFP Modules; 10/25/40G/100G Transceiver Modules; 10G CWDM/DWDM SFP+; 221956

Click to open expanded view

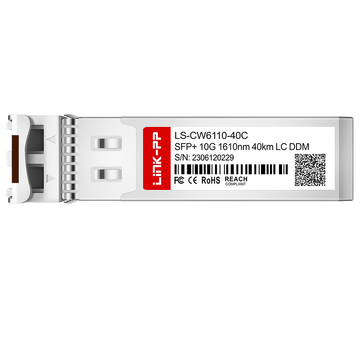

Dell 430-4585-CW61 Compatible LINK-PP 10G SFP+ CWDM 1610nm 40km Duplex LC DOM SMF Optical Transceiver Module

Name: Dell 430-4585-CW61 Compatible LINK-PP 10G SFP+ CWDM 1610nm 40km Duplex LC DOM SMF Optical Transceiver Module
Brand: LINK-PP
SKU: 221956
Price: 220.16 USD
Availability: InStock
Rating: 4.9 (43 reviews)

# 221956

Product: Dell 430-4585-CW61 Compatible LINK-PP 10G SFP+ CWDM 1610nm 40km Duplex LC DOM SMF Optical Transceiver Module
SKU: 221956
P/N: LS-CW6110-40C
Price: $ 256
Stock: 170 in Stock
Sold: 894
Product URL: https://www.l-p.com/products/495136.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

43 Reviews

3 Questions

Request Stock

894 Sold

$ 256

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 256

100

$ 243.2

1000

$ 235.52

3000

$ 227.84

6000

$ 220.16

Manufacture: LINK-PP

P/N: LS-CW6110-40C

Compatible:: Cisco; LINK-PP; Alcatel-Lucent; Brocade; Ciena; Dell; Generic; H3C; HPE; Juniper

Wavelength:: 1270nm; 1290nm; 1310nm; 1330nm; 1350nm; 1370nm; 1390nm; 1410nm; 1430nm; 1450nm; 1470nm; 1490nm; 1510nm; 1530nm; 1550nm; 1570nm; 1590nm; 1610nm

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

Specifications

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

Dell 430-4585-CW61 Compatible LINK-PP 10G SFP+ Specifications

430-4585-CW61 10G CWDM optical module integrates a cooled 1610nm EML laser and PIN receiver into a hot-pluggable SFP+ footprint, leveraging low-dispersion optical signaling to transmit up to 40km over single-mode fiber while delivering granular real-time telemetry via digital optical monitoring (DOM).

Dell Part Number	430-4585-CW61	Vendor Name	LINK-PP
Form Factor	SFP+	Max Data Rate	10.7Gbps
Wavelength	1610nm	Max Cable Distance	40km
Connector	Duplex LC	Media	SMF
Transmitter Type	EML	Receiver Type	PIN
TX Power	-1 to +5dBm	RX Power	-23 to -6dBm
Receiver Sensitivity	-16dBm	DOM Support	Yes
Operating Temperature Range	0 to 70°C	Protocols	SFP+ MSA Compliant, SFF 8472,SFF 8431,802.3ae, ITU-T

Videos

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LS-CWxx10-40C 1271-1611.pdf

Questions & Answers
Ask a Question

No data

Q: Can we monitor module temperature remotely to prevent failures at hot sites? By G***s on 2026-05-12

A: Yes. With DOM enabled, supported network equipment can report the module’s temperature and optical power levels. Your NOC can set thresholds to identify overheating, declining received power, or abnormal transmit-power readings before the link is affected. By admin on 2026-05-13
Q: We’re running an 8-channel CWDM MUX spanning 1470nm to 1610nm — where exactly does this optic patch in? By H***m on 2025-09-13

A: Patch this transceiver directly into the dedicated 1610nm channel port on your CWDM tray. Just ensure the remote end also uses a 1610nm module on its matching MUX port, as different CWDM wavelengths cannot interoperate. By admin on 2025-09-14
Q: We are building a CWDM ring for LTE backhaul. Is this module suitable? By F***t on 2025-03-17

A: Yes. It is suitable for 10Gbps CWDM optical systems and LTE-related optical links, provided the network uses the 1610nm CWDM channel and single-mode fiber. By admin on 2025-03-18
