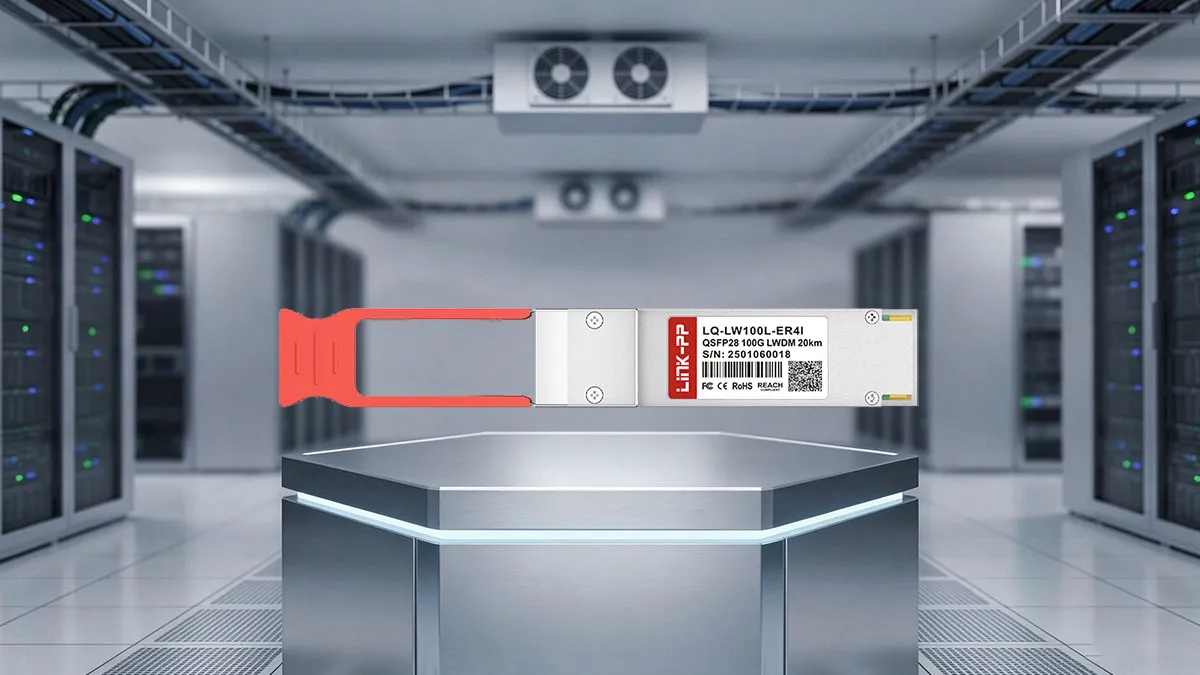

LINK-PP LQ-LW100L-ER4I 100G ER4 Lite Specifications
The LINK-PP LQ-LW100L-ER4I is a high-performance 100G QSFP28 ER4 Lite industrial-grade optical transceiver. Equipped with an advanced EML laser and APD detector, this optical module supports 103.125Gbps Ethernet and 111.81Gbps OTU4 dual data rates. It operates reliably between -40°C and 85°C, ensuring robust network connectivity in extreme environmental conditions.
LINK-PP Part Number
LQ-LW100L-ER4I
Vendor Name
LINK-PP
Form Factor
QSFP28
Max Data Rate
111.81Gbps
Wavelength
1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm
Max Cable Distance
40km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
APD
DDM/DOM
Supported
Operating Temperature Range
-40°C to +85°C
Modulation (Electrical)
4x 25G-NRZ
Modulation (Optical)
4x 25G-NRZ
Protocols
QSFP28 MSA, SFF-8636, IEEE 802.3bm, CAUI-4
Warranty
5 Years
Key Features of LINK-PP LQ-LW100L-ER4I 100G QSFP28
Designed for demanding telecom networks, the LINK-PP LQ-LW100L-ER4I 100G QSFP28 transceiver delivers exceptional long-reach performance. This industrial-grade module integrates cutting-edge LAN-WDM technology and comprehensive digital diagnostic monitoring, offering unparalleled reliability, superior thermal management, and ultra-low power consumption under 5W.

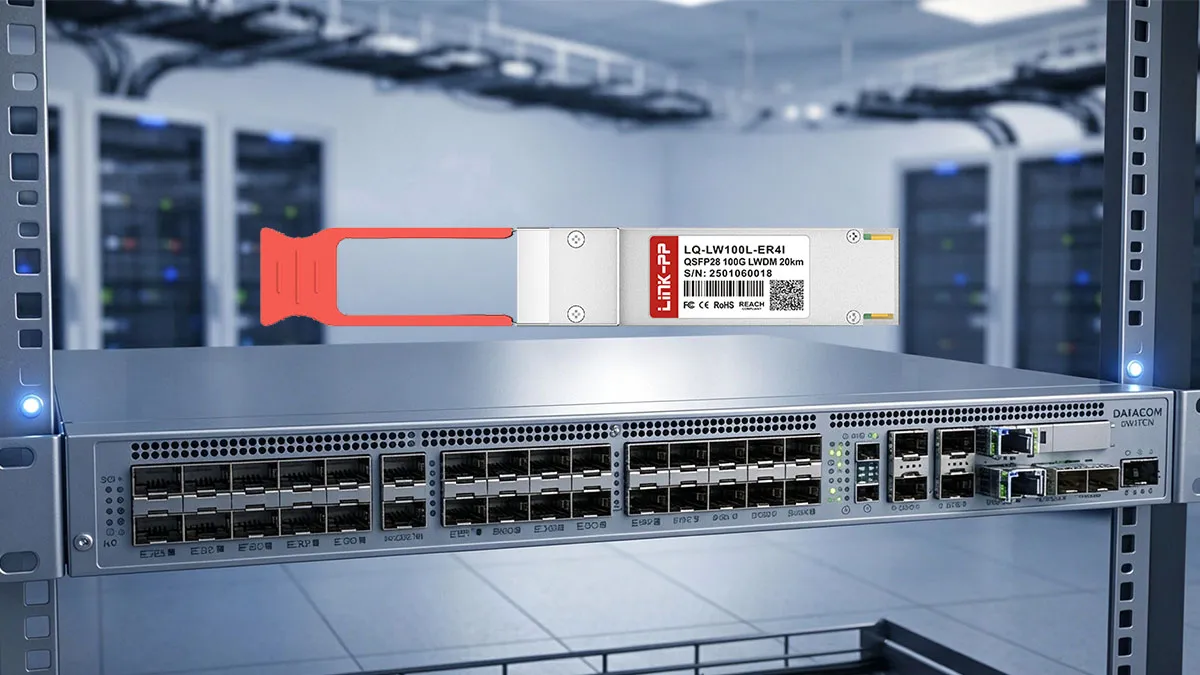

LINK-PP LQ-LW100L-ER4I 100G QSFP28 Optical Module
The LINK-PP LQ-LW100L-ER4I 100G QSFP28 optical module provides seamless high-speed data transmission. Engineered for harsh industrial settings, this ruggedized transceiver ensures stable bandwidth aggregation, exceeding 100Gbps network requirements for modern telecommunication and core routing architectures.

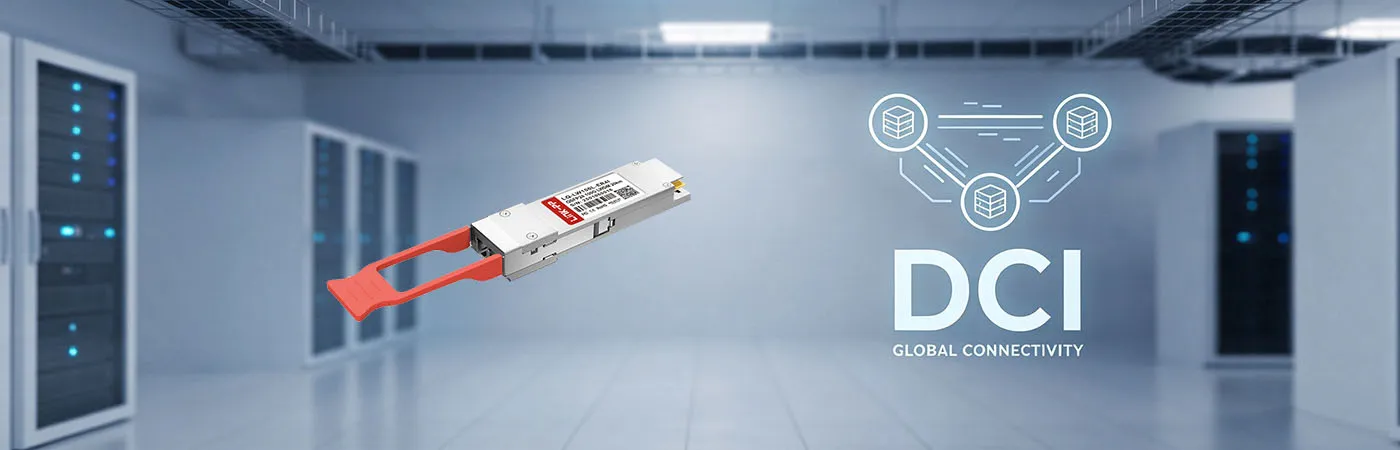

LQ-LW100L-ER4I: 100G Connectivity for DCI
Empowering Data Center Interconnect (DCI) networks, the LQ-LW100L-ER4I guarantees ultra-low latency and high-capacity routing. This 100G connectivity solution excels in bridging dispersed data centers, enabling scalable, long-haul cloud infrastructure networks with uncompromising data integrity.

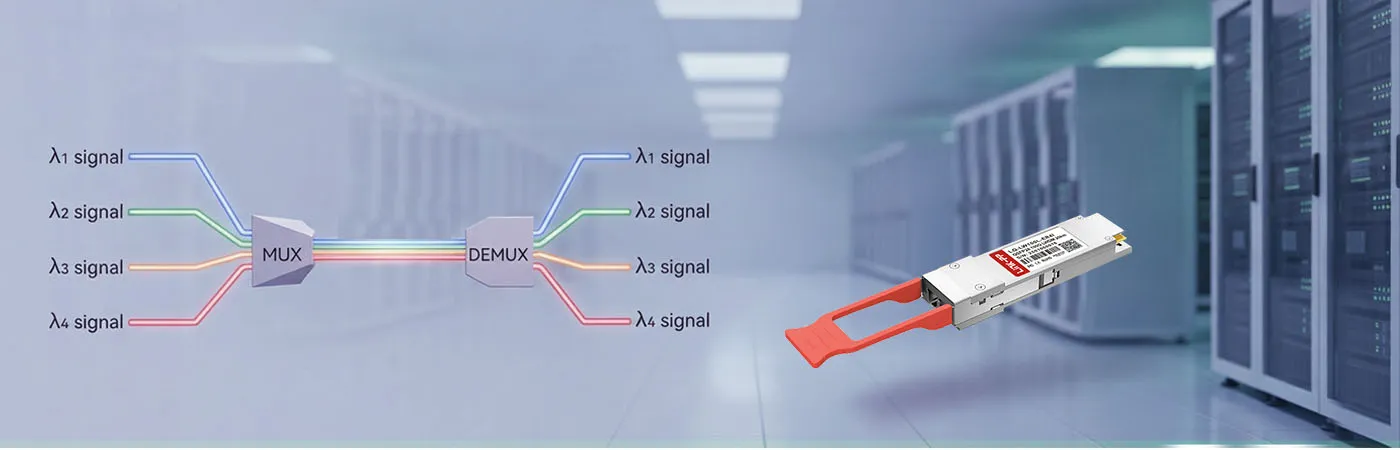

LQ-LW100L-ER4I Module with LAN-WDM Technology for Fiber Efficiency
Utilizing advanced LAN-WDM technology, the LQ-LW100L-ER4I module multiplexes four distinct lanes onto a single fiber. This optical multiplexing significantly enhances fiber efficiency, reducing deployment costs while maximizing existing single-mode fiber bandwidth in long-reach optical networks.

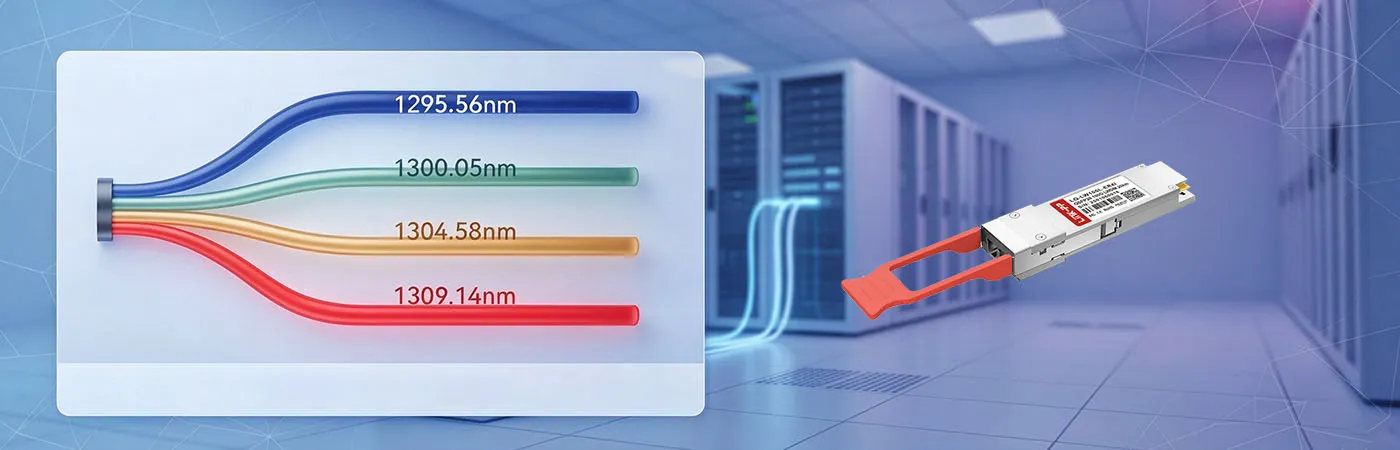

LQ-LW100L-ER4I Module with 1295.56nm, 1300.05nm, 1304.58nm and 1309.14nm Wavelength
Operating across precise LAN-WDM grid specifications, the LQ-LW100L-ER4I module utilizes 1295.56nm, 1300.05nm, 1304.58nm, and 1309.14nm central wavelengths. This wavelength assignment minimizes chromatic dispersion over extended distances, ensuring flawless high-speed optical signal integrity for core networks.
By leveraging high-sensitivity APD receivers and Forward Error Correction (FEC), the LQ-LW100L-ER4I module supports impressive 40km transmission distances over single-mode fiber. For legacy systems without FEC, it still reliably achieves 30km extended reach operations.

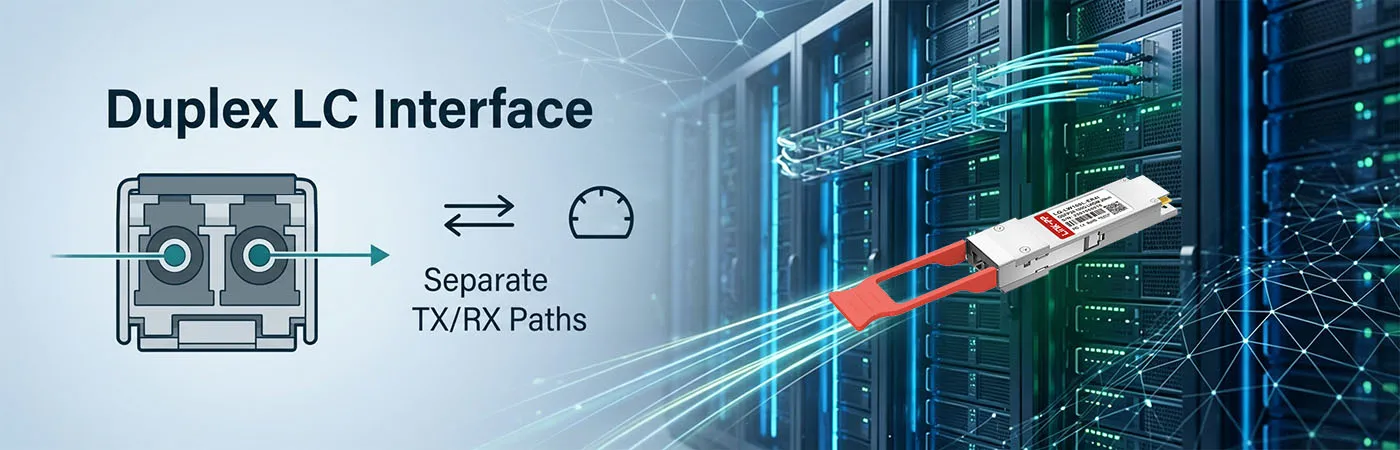

LQ-LW100L-ER4I Module with Duplex LC Interface
Featuring a standard duplex LC interface, the LQ-LW100L-ER4I module allows for seamless integration into existing optical distribution frames. This widely adopted connector ensures secure, low-loss physical mating, streamlining network upgrades and simplifying long-haul fiber patching.

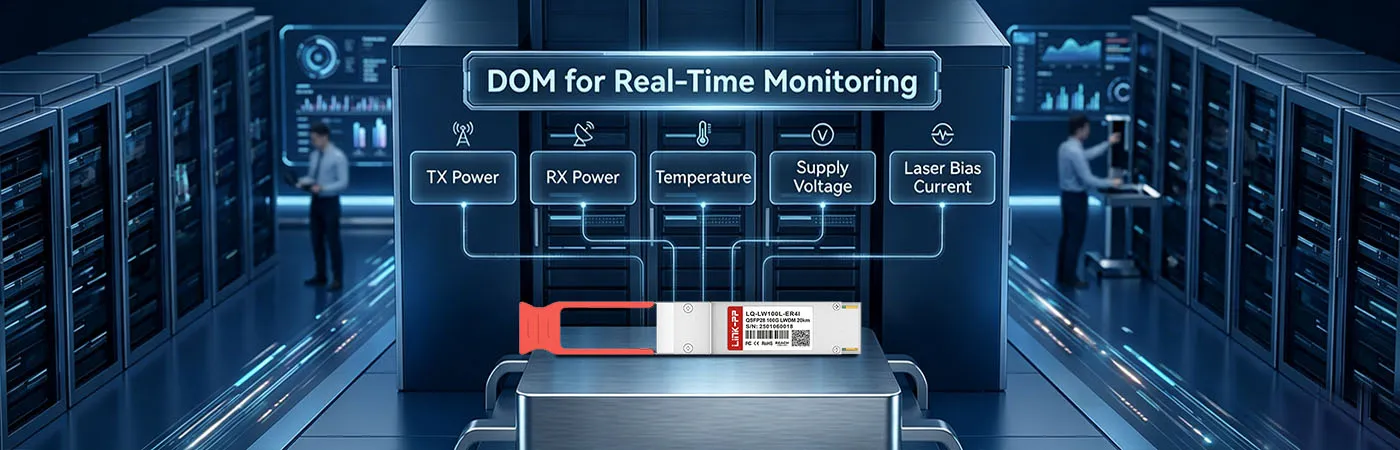

LQ-LW100L-ER4I Module with DOM for Real-Time Monitoring
The LQ-LW100L-ER4I module incorporates integrated Digital Optical Monitoring (DOM). This diagnostic feature allows network administrators to continuously track critical parameters like temperature, voltage, and optical power through a standard 2-wire serial interface, preventing unexpected network downtime.
LINK-PP LQ-LW100L-ER4I 100G QSFP28 Certification
The LINK-PP LQ-LW100L-ER4I 100G QSFP28 optical transceiver undergoes stringent validation. It adheres strictly to international safety protocols and environmental directives, guaranteeing top-tier compliance for global enterprise deployments.
Our extensive LQ-LW100L-ER4I quality testing program systematically validates every optical component. We conduct rigorous performance simulations to ensure exceptional durability and zero-defect reliability in demanding communication environments.
LQ-LW100L-ER4I Quality Certifications
Earning comprehensive international recognition, the LQ-LW100L-ER4I holds CE, FCC, UKCA, UL, and REACH quality certifications, confirming its absolute safety, electromagnetic compatibility, and strict environmental compliance.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
LQ-LW100L-ER4I Certified for Reliable Host-Device Compatibility
The LQ-LW100L-ER4I is certified for reliable host-device compatibility. It perfectly complies with QSFP28 MSA specifications, ensuring seamless plug-and-play interoperability across leading switch and router network equipment vendors.
Every unit undergoes comprehensive factory evaluation. This rigorous testing ensures reliable QSFP28 performance, verifying optimal optical fidelity and electrical stability before final market release.
Optical Spectrum Test
Verifies LAN-WDM center wavelengths and checks the precise side-mode suppression ratio.
Eye Pattern Test
Evaluates transmitter output signal quality and jitter tolerance for clear 100G data transmission.
Bit Error Rate Test
Confirms flawless long-haul 40km signal reception by ensuring minimal data packet loss.
Temperature Test
Guarantees continuous industrial-grade operation across extreme -40°C to 85°C environmental conditions.
Product Shipping for LINK-PP LQ-LW100L-ER4I 100G QSFP28
We maintain strict packaging protocols for the LINK-PP LQ-LW100L-ER4I 100G QSFP28, ensuring your optical hardware arrives swiftly and in pristine factory condition.
Anti-Static Protective Packaging
ESD-safe shielding prevents static damage to internal microelectronic optical components.

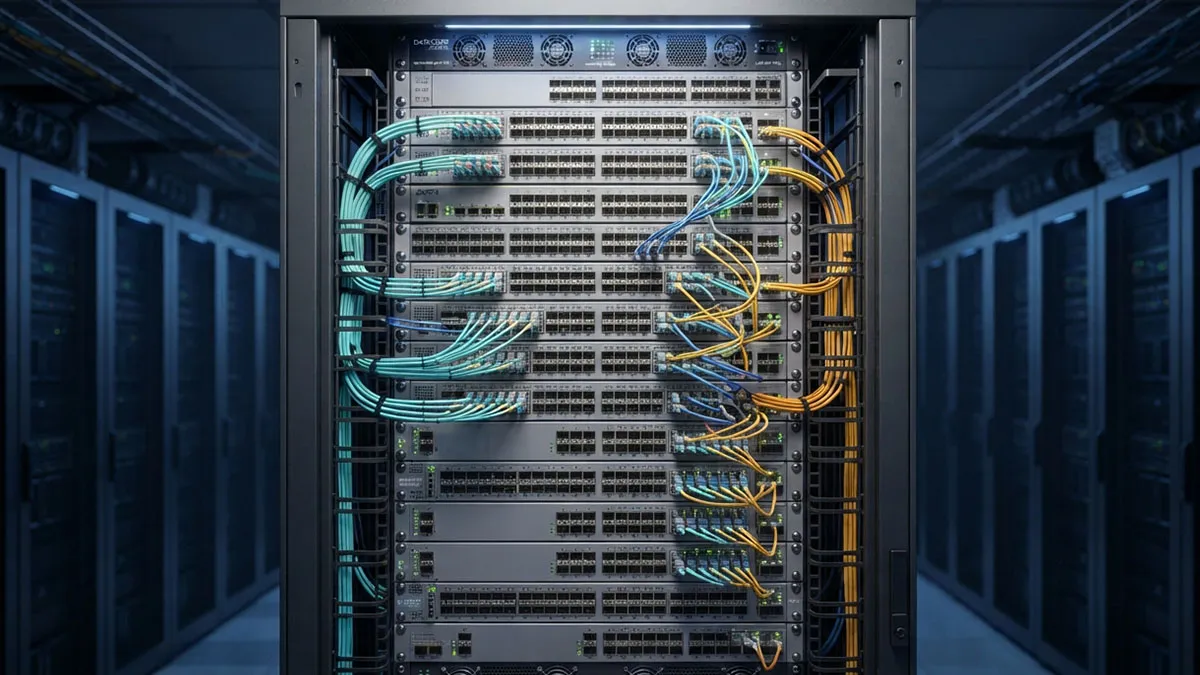

Deploying the LINK-PP LQ-LW100L-ER4I 100G QSFP28 is straightforward. Simply insert the hot-pluggable optical module into a compatible industrial switch port, then connect your duplex LC single-mode fiber to establish immediate, high-capacity connectivity for telecom backbone infrastructure.
LQ-LW100L-ER4I Technical Support
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Pre-Sales Technical Consultation
Professional technical guidance to help customers select the most suitable LQ-LW100L-ER4I modules based on network architecture and application requirements.
Compatibility Verification Support
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Deployment & Installation Assistance
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
A:
Definitely. It strictly complies with IEEE 802.3ba 100GBASE-ER4 Lite, QSFP28 MSA, and OTN OTU4 standards. It also fully supports DOM/DDM interfaces, allowing network admins real-time diagnostic monitoring of optical power, temperature, and voltage. By
admin
A:
Absolutely. The LQ-LW100L-ER4I is fully MSA compliant and undergoes strict multi-vendor compatibility testing. It works seamlessly across Cisco, Arista, Juniper, and other major networking platforms without any vendor lock-in issues, ensuring flawless interoperability. By
admin
A:
This optical transceiver requires a Single-Mode Fiber (SMF) patch cable equipped with a standard Duplex LC connector. It supports up to 40km transmission with FEC (Forward Error Correction) enabled, or 30km without FEC. By
admin
A:
Yes, we provide competitive tiered pricing for batch deployments and enterprise procurement. Please contact our sales team directly, and we will tailor a wholesale discount package that fits your specific project budget and scale. By
admin
Please write comments with more than three
character.
495600
520920
D***l
Switzerland
Verified
Purchase
5 .0
2026-07-28
Tested the LQ-LW100L-ER4I on our Juniper and Cisco core switches. Perfect LAN-WDM 1310nm compatibility, zero packet loss across a 38km campus optical network link. Solid B2B networking gear.
Please write comments with more than three
character.
495600
520905
P***z
Costa Rica
Verified
Purchase
5 .0
2026-07-22
Built a multi-site data center interconnect. This 100GBASE-ER4 industrial transceiver handled the extended temperature variation like a champ. DOM stats match original optics, making our batch deployment extremely cost-effective.
Please write comments with more than three
character.
495600
520902
R***t
Czech Republic
Verified
Purchase
5 .0
2026-07-20
Deployed these industrial QSFP28 ER4 Lite modules in our outdoor enclosures (-30°C). 40km SMF distance is spot on, DDM readings are incredibly stable. Great alternative to overpriced OEM optics.
Please write comments with more than three
character.
495600
520908
T***z
Ireland
Verified
Purchase
5 .0
2026-06-03
Used these for 5G base station backhaul. The LC duplex interface and MSA compliance made integration flawless. Link-PP's 100G optical transceiver modules deliver massive bandwidth over single-mode fiber reliably.
