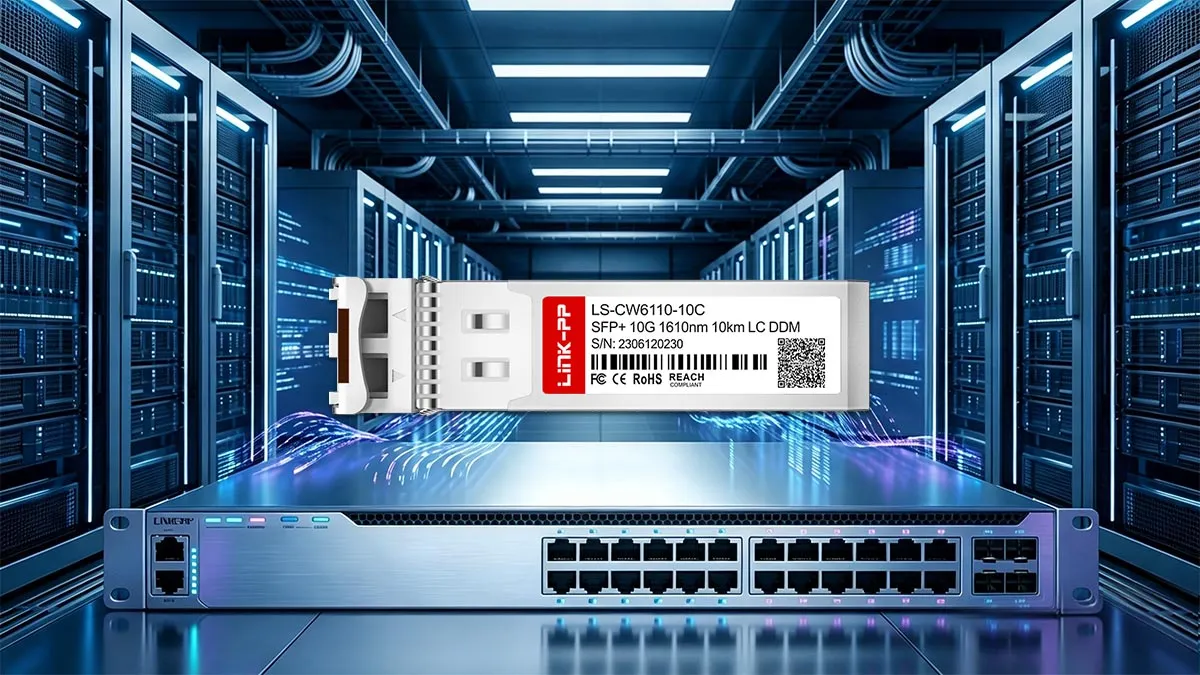

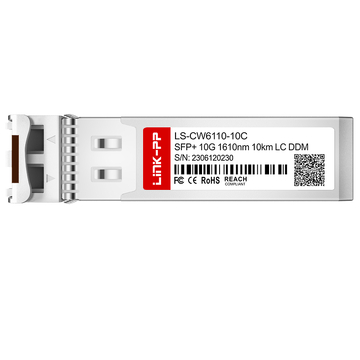

CWDM-SFP10G-10M is engineered as a CWDM 10G SFP+ optical transceiver operating at 1610nm, featuring a EML laser and PIN photodiode design that enables single-mode fiber data transmission for distances up to 10km via a duplex LC connector, with built-in real-time digital optical monitoring to provide immediate access to performance metrics.

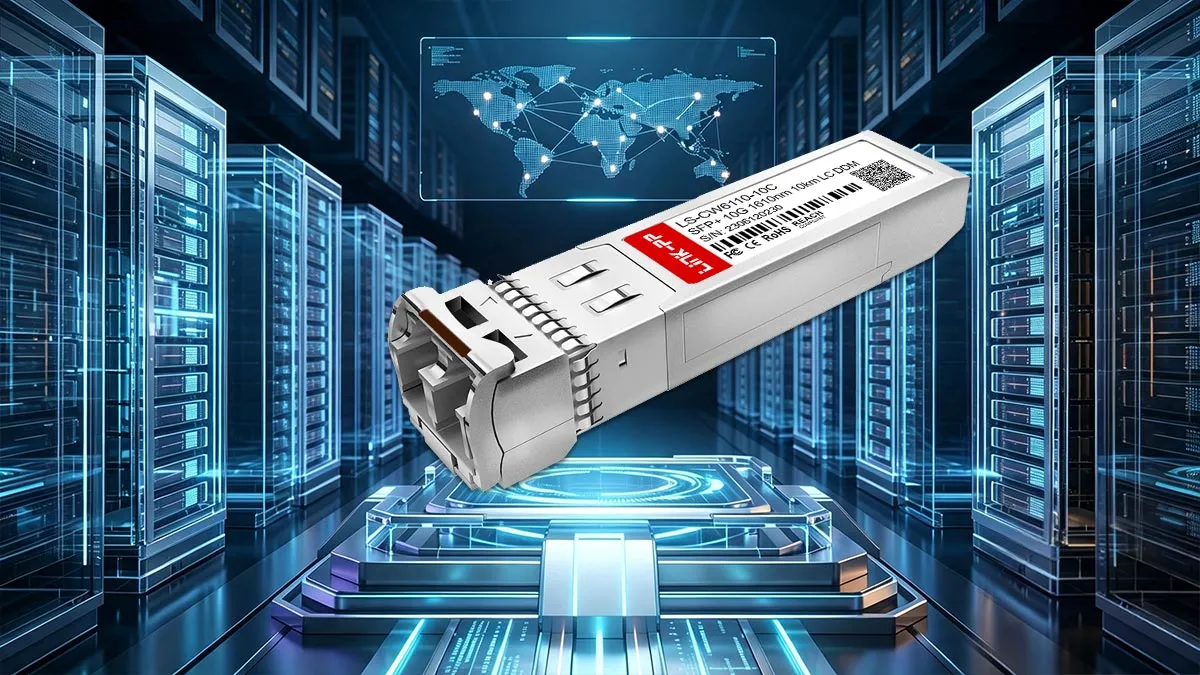

| Generic Part Number | CWDM-SFP10G-10M | Vendor Name | LINK-PP |
| Form Factor | SFP+ | Max Data Rate | 10.7Gbps |
| Wavelength | 1610nm | Max Cable Distance | 10km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | -1 to +5dBm | RX Power | -23 to -6dBm |
| Receiver Sensitivity | <-16dBm | DOM Support | Yes |
| Operating Temperature Range | 0 to 70°C | Protocols | SFP+ MSA Compliant, SFF 8472,SFF 8431,802.3ae, ITU-T G.652 |
Generic CWDM-SFP10G-10M Compatible LINK-PP module is a commercial-grade 10G SFP+ CWDM optical transceiver module operating at 1610nm, designed to deliver reliable 10Gbps connectivity over single-mode fiber for distances up to 10km through a duplex LC interface with integrated digital optical monitoring. This module combines CWDM wavelength efficiency, hot-pluggable convenience, and real-time performance visibility to support scalable deployments across enterprise, metropolitan, and service provider networks.
This CWDM module features a hot-pluggable SFP+ footprint that enables seamless insertion and removal without disrupting network operations, while maintaining full compliance with SFP+ MSA and SFF-8472 standards for broad interoperability. This design ensures straightforward integration into existing SFP+ ports across switches, routers, and optical transport equipment from multiple vendors.

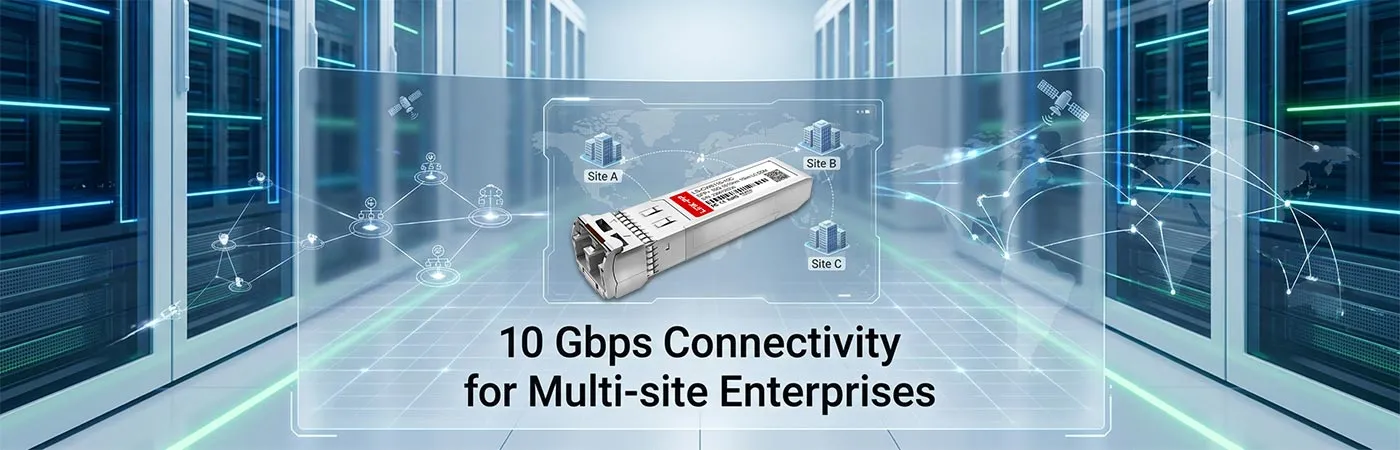

Built for 10Gbps operation, this transceiver handles bandwidth-heavy workloads across geographically dispersed enterprise sites, including campus core networks and inter-building fiber connections. The 10G capacity readily supports data-intensive services such as server virtualization, cloud connectivity, and enterprise voice/video communications in multi-location deployments.

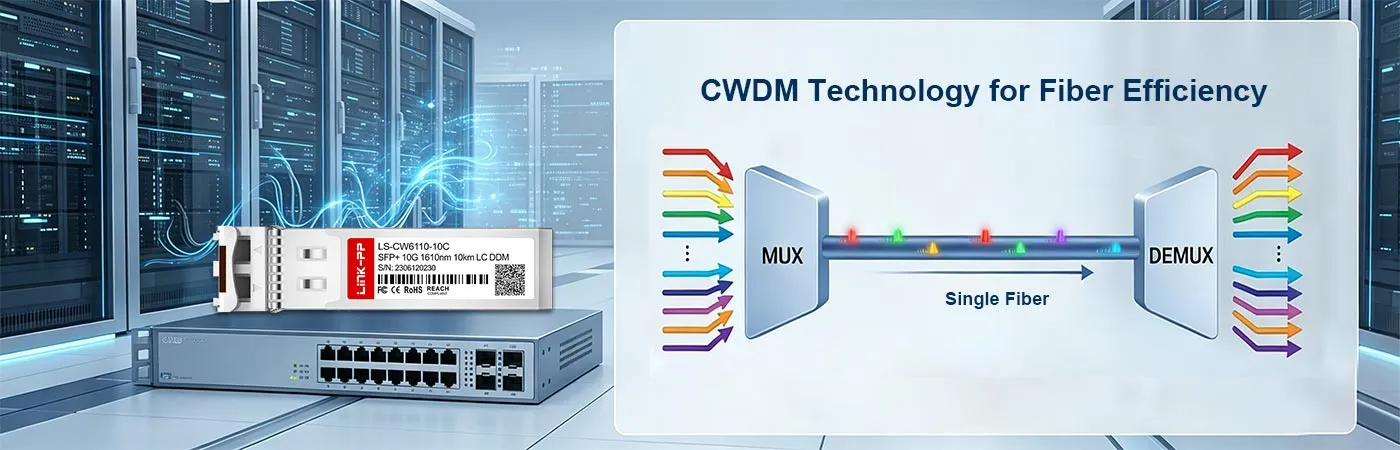

CWDM technology allows multiple wavelength channels to coexist on a single fiber pair, multiplying network capacity without additional cabling investments. This wavelength division approach reduces infrastructure costs while simplifying fiber management in dense metropolitan and enterprise deployments.

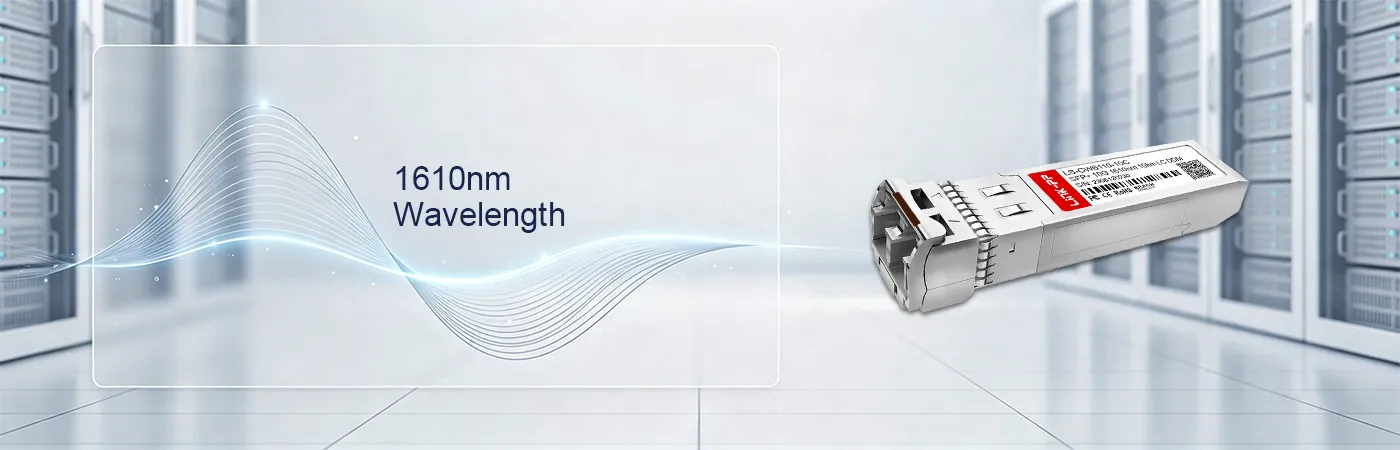

Operating at the 1610nm CWDM wavelength, this module aligns with the long-wavelength end of the 18-channel CWDM grid defined by ITU-T G.694.2. The 1610nm channel provides compatibility with standard CWDM multiplexers and demultiplexers for seamless integration into existing wavelength-division networks.
Engineered for single-mode fiber links extending up to 10km, this transceiver covers typical metropolitan access, campus, and enterprise backbone distances. The 10km reach balances cost efficiency with sufficient optical power budget for reliable connectivity across most commercial fiber deployments.

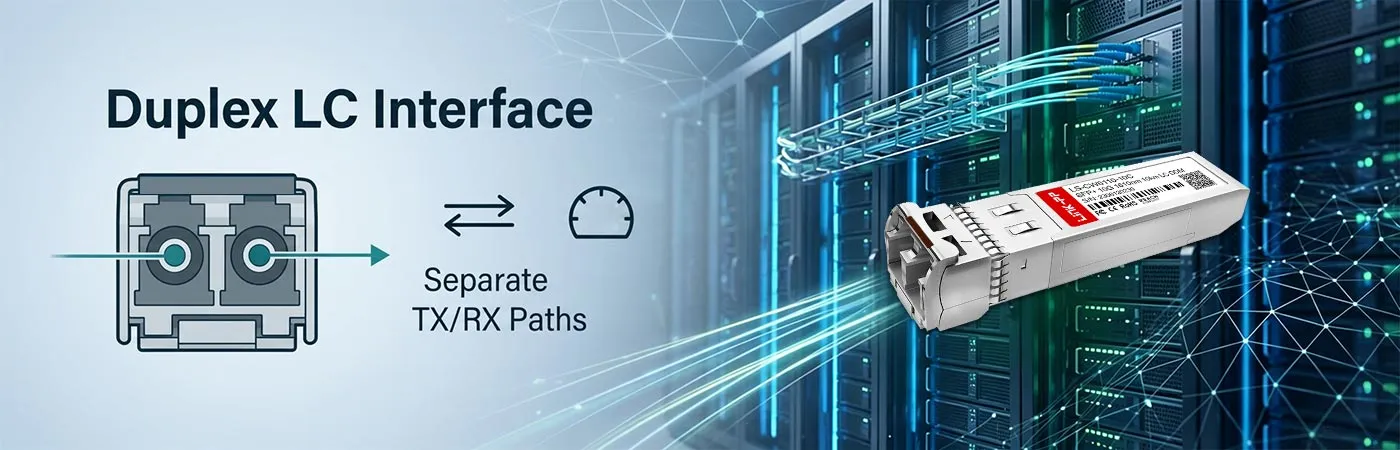

The duplex LC connector provides a compact, industry-standard interface for separate transmit and receive fiber paths, ensuring straightforward polarity management and high-density port configurations. This connector type is widely supported across optical networking equipment for quick patch panel and switch integration.

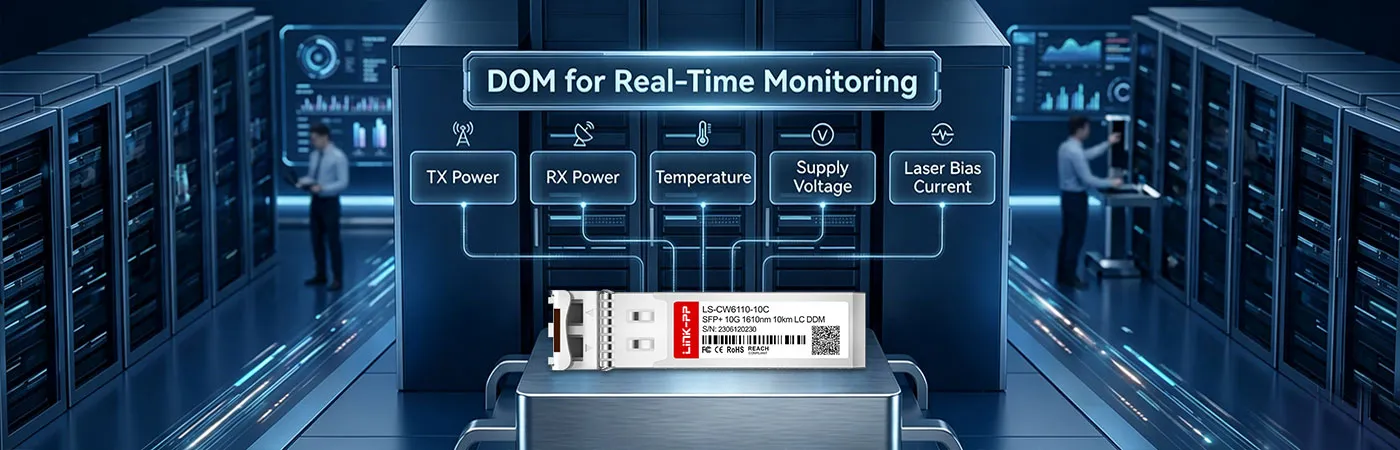

Integrated digital optical monitoring (DOM) delivers real-time visibility into key parameters such as temperature, supply voltage, laser bias current, and optical power levels. This continuous diagnostics capability supports proactive maintenance, rapid fault isolation, and optimized network performance management.
Generic CWDM-SFP10G-10M Compatible LINK-PP CWDM 10G SFP+ module carries ISO 9001 quality management certification along with CE, RoHS, and FCC compliance marks to meet international regulatory and environmental standards.
Each CWDM module undergoes rigorous factory testing covering optical performance, electrical characteristics, and environmental stress validation before shipment.
The module holds multiple industry-recognized quality certifications that verify consistent manufacturing processes and product reliability.
Certified interoperability ensures stable operation across a wide range of switches, routers, and optical transport platforms from major vendors.
Each CWDM-SFP10G-10M CWDM SFP+ optical transceiver passes extensive factory validation to deliver consistent 10G performance in real-world deployments. Explore detailed test procedures at the LINK-PP Test Support Center.
Confirms accurate 1610nm wavelength and clean spectral output.
Evaluates signal quality and timing margins for error-free transmission.
Measures ultra-low bit errors under sustained high-speed traffic loads.
Ensures stable optical performance across the full operating temperature range.
Every optical module ships in secure, anti-static packaging with rapid dispatch to ensure safe, on-time arrival. We partner with trusted global carriers for reliable delivery to your location.
Prevents electrostatic damage with specialized anti-static materials throughout shipping.
Absorbs transit impacts using durable, impact-resistant outer packaging layers.
Coordinates orders quickly with optimized dispatch to ensure timely delivery.
Ships globally through reliable partners offering seamless cross-border delivery services.
Deploying the CWDM-SFP10G-10M 10G SFP+ involves inserting the hot-pluggable transceiver into compatible switches and linking it to CWDM MUX/DEMUX units with single-mode fiber. Ideal for metro networks, service provider aggregation, and distributed enterprise deployments, it maximizes existing fiber infrastructure through wavelength division multiplexing at 1610nm.
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Professional guidance to help you select the optimal CWDM-SFP10G-10M module for your network design and application needs.
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.
15-day no-reason return and refund
Free replacement for dead-on-arrival (DOA) or defective items within the initial period
Free repair services for manufacturing defects throughout the warranty period
Warranty exclusions and conditions apply
![]() LS-DW6110-A0C
| ![]() LS-DW6010-A0C
| ![]() LS-DW5910-A0C
| ![]() LS-DW5810-A0C
| ![]() LS-DW5710-A0C
|
|---|
Compatible | Generic | Generic | Generic | Generic | Generic | Generic |
Data Rate (Max) | 10.7Gbps | 10.7Gbps | 10.7Gbps | 10.7Gbps | 10.7Gbps | 10.7Gbps |
Wavelength | 1610nm | 1528.77nm | 1529.55nm | 1530.33nm | 1531.12nm | 1531.89nm |
Connector | Duplex LC | Duplex LC | Duplex LC | Duplex LC | Duplex LC | Duplex LC |
Cable Distance (Max) | 10km | 100km | 100km | 100km | 100km | 100km |
Cable Type | SMF | SMF | SMF | SMF | SMF | SMF |
TX Power | -1 to +5dBm | -1 to +5dBm | -1 to +5dBm | -1 to +5dBm | -1 to +5dBm | -1 to +5dBm |
Receiver Sensitivity | -23 to -6dBm | -23dBm | -23dBm | -23dBm | -23dBm | -23dBm |
Operating Temperature | 0 to 70°C | 0 to 70°C | 0 to 70°C | 0 to 70°C | 0 to 70°C | 0 to 70°C |
Temperature | Commercial | Commercial | Commercial | Commercial | Commercial | Commercial |
Form Factor | SFP+ | SFP+ | SFP+ | SFP+ | SFP+ | SFP+ |
Transmitter Type | EML | EML | EML | EML | EML | EML |
Receiver Type | PIN | APD | APD | APD | APD | APD |
DOM Support | Yes | |||||
Protocols | SFP+ MSA Compliant, SFF 8472,SFF 8431,802.3ae, ITU-T G.652 | SFP+ MSA Compliant | SFP+ MSA Compliant | SFP+ MSA Compliant | SFP+ MSA Compliant | SFP+ MSA Compliant |
