Do we need multi-mode fiber or single-mode fiber patch cords for our CWDM MUX panel connection?

Single-mode fiber is mandatory for this link. Multi-mode fiber causes severe optical dispersion and attenuation at 1470nm, whereas duplex LC single-mode patch cords ensure optimal signal transmission and full 20km optical reach.

Can we monitor internal transceiver temperature in real time inside densely populated switch faceplates?

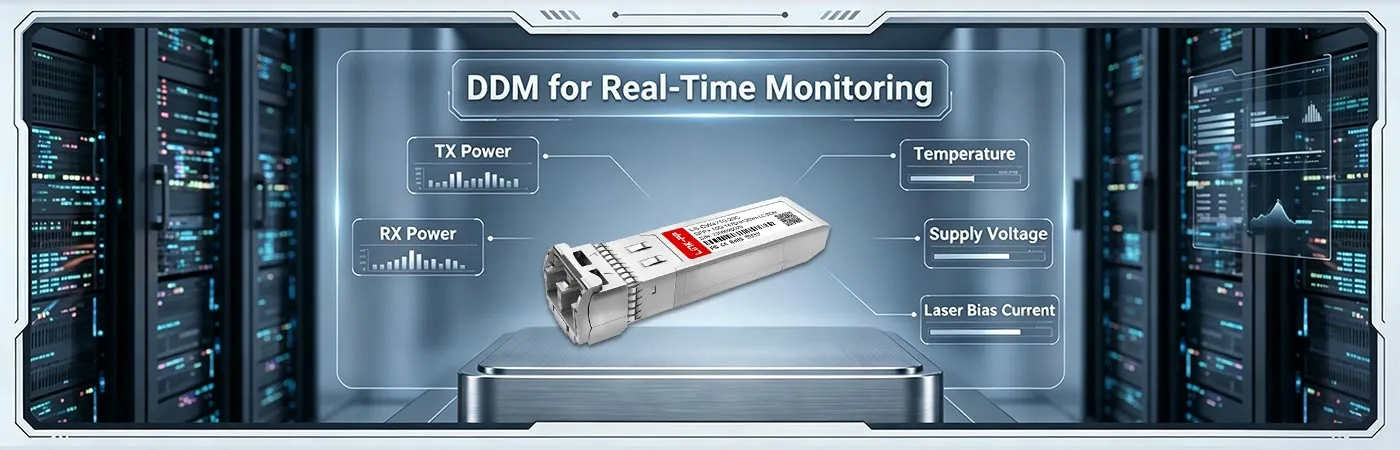

Yes. This transceiver features a Digital Diagnostic Monitoring (DDM) function that reports live operating temperature to the host device. You can access these metrics via standard switch CLI diagnostic tools or poll them remotely using SNMP.

Can I drop this 1470nm SFP+ module into our current CWDM filter tray alongside other wavelengths on one fiber pair?

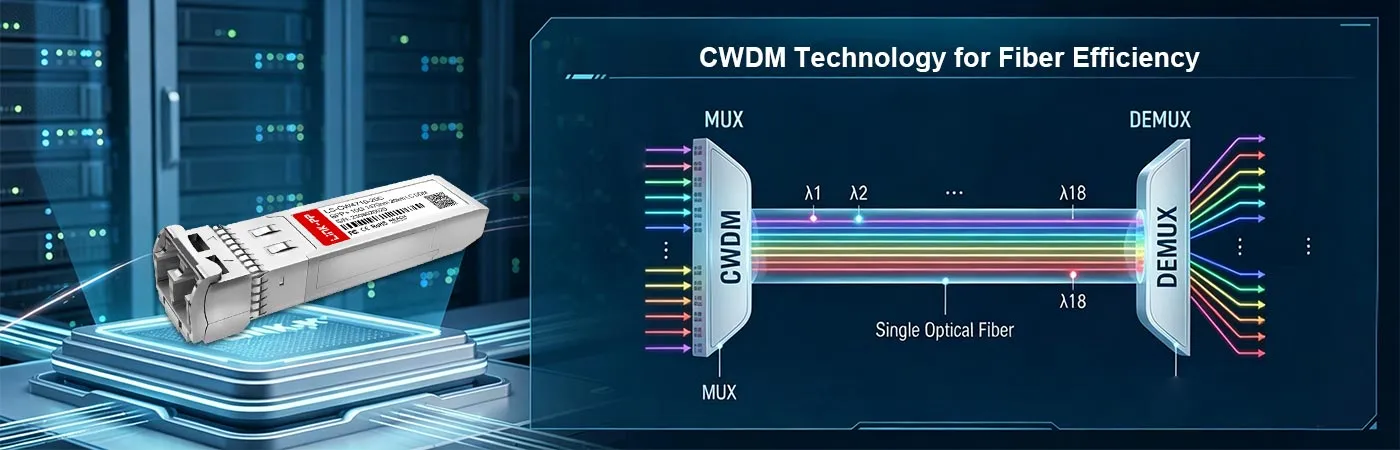

Yes, it’s built for standard CWDM grid integration. Just patch it into your 1470nm MUX/DEMUX port, and it will run clean, multi-channel traffic over the same single-mode line with solid spectral stability.

Breadcrumb: Home; Products; Optics Transceivers | SFP Modules; 10/25/40G/100G Transceiver Modules; 10G CWDM/DWDM SFP+; 222463

Click to open expanded view

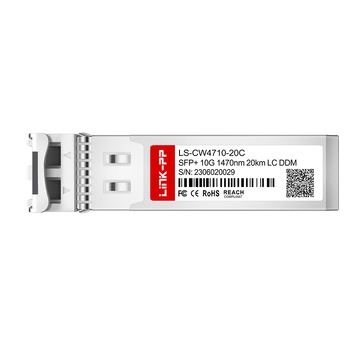

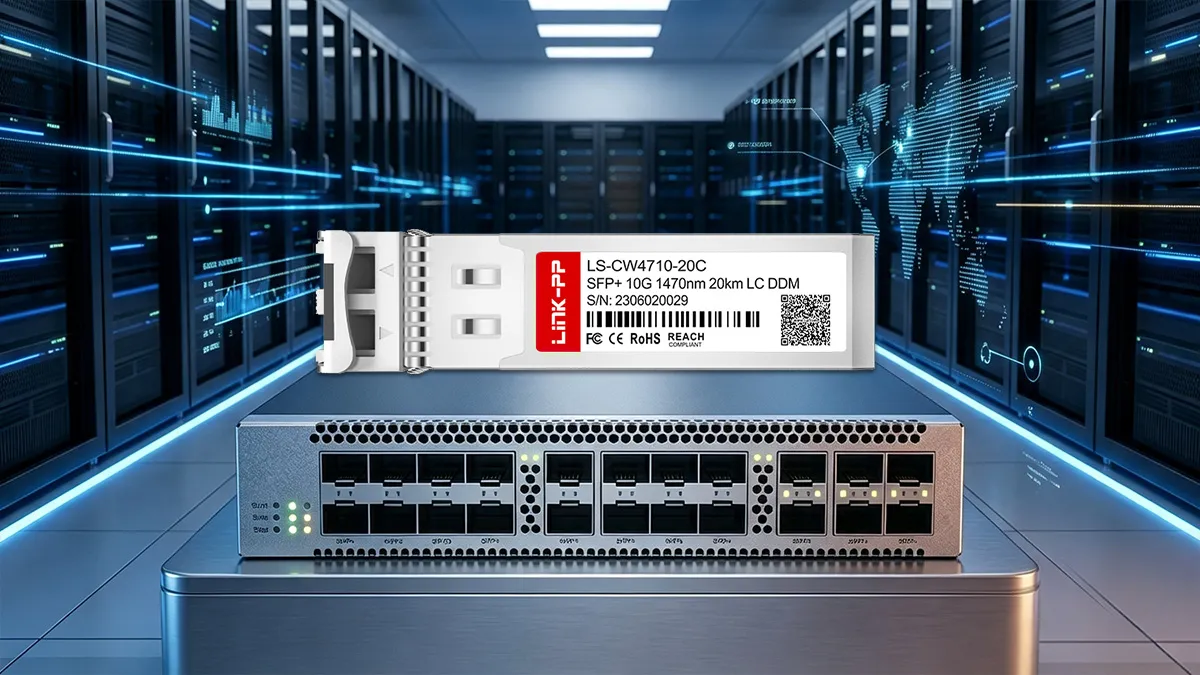

FS CWDM-SFP10G-20L Compatible LINK-PP 10G SFP+ CWDM 1470nm 20km Duplex LC DDM SMF Optical Transceiver Module

Name: FS CWDM-SFP10G-20L Compatible LINK-PP 10G SFP+ CWDM 1470nm 20km Duplex LC DDM SMF Optical Transceiver Module
Brand: LINK-PP
SKU: 222463
Price: 233.06 USD
Availability: InStock
Rating: 5 (22 reviews)

# 222463

Product: FS CWDM-SFP10G-20L Compatible LINK-PP 10G SFP+ CWDM 1470nm 20km Duplex LC DDM SMF Optical Transceiver Module
SKU: 222463
P/N: LS-CW4710-20C
Price: $ 271
Stock: 389 in Stock
Sold: 702
Product URL: https://www.l-p.com/products/494683.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

22 Reviews

3 Questions

Request Stock

702 Sold

$ 271

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 271

100

$ 257.45

1000

$ 249.32

3000

$ 241.19

6000

$ 233.06

Manufacture: LINK-PP

P/N: LS-CW4710-20C

Compatible:: Cisco; LINK-PP; Brocade; Ciena; Dell; FS; Generic; H3C; Juniper

Wavelength:: 1270nm; 1290nm; 1310nm; 1330nm; 1350nm; 1370nm; 1390nm; 1410nm; 1430nm; 1450nm; 1470nm; 1490nm; 1510nm; 1530nm; 1550nm; 1570nm; 1590nm; 1610nm

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

Specifications

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

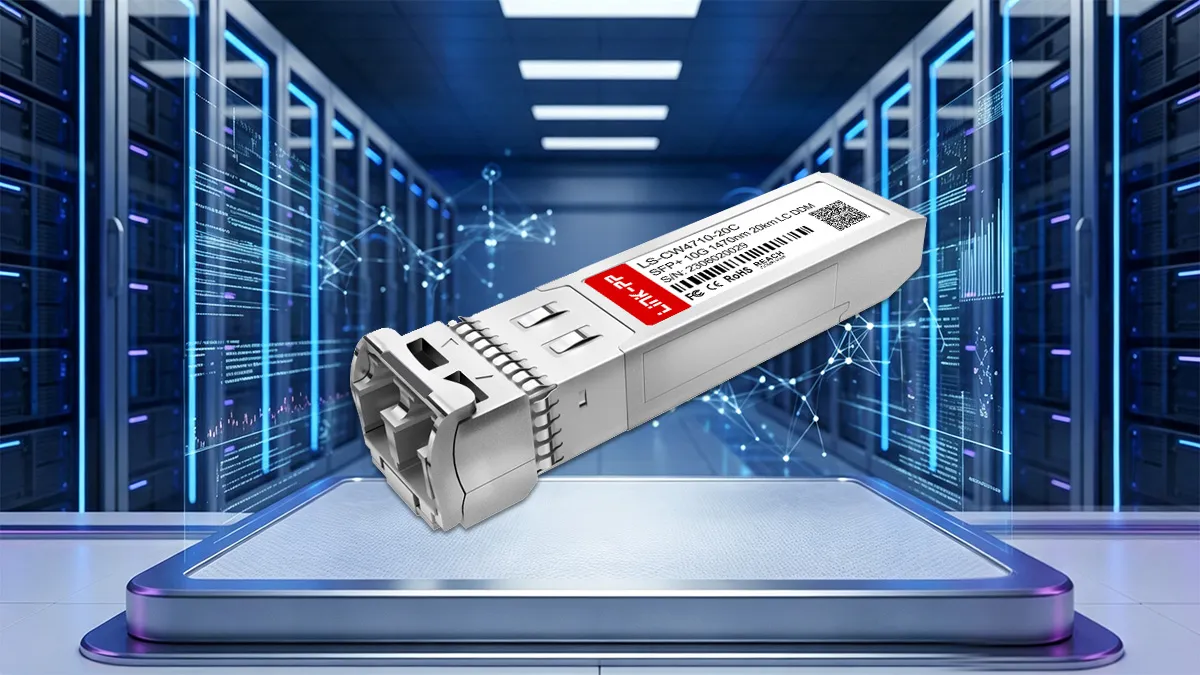

FS CWDM-SFP10G-20L Compatible LINK-PP 10G SFP+ Specifications

CWDM-SFP10G-20L is engineered as a 10G CWDM SFP+ optical transceiver centered at 1470nm, incorporating a cooled EML laser paired with a PIN photodiode to ensure stable optical output, supporting transmission distances up to 20km over single-mode fiber through a duplex LC interface, while enabling real-time digital diagnostic monitoring for continuous visibility into key operating parameters.

FS Part Number	CWDM-SFP10G-20L	Vendor Name	LINK-PP
Form Factor	SFP+	Max Data Rate	10.7Gbps
Wavelength	1470nm	Max Cable Distance	20km

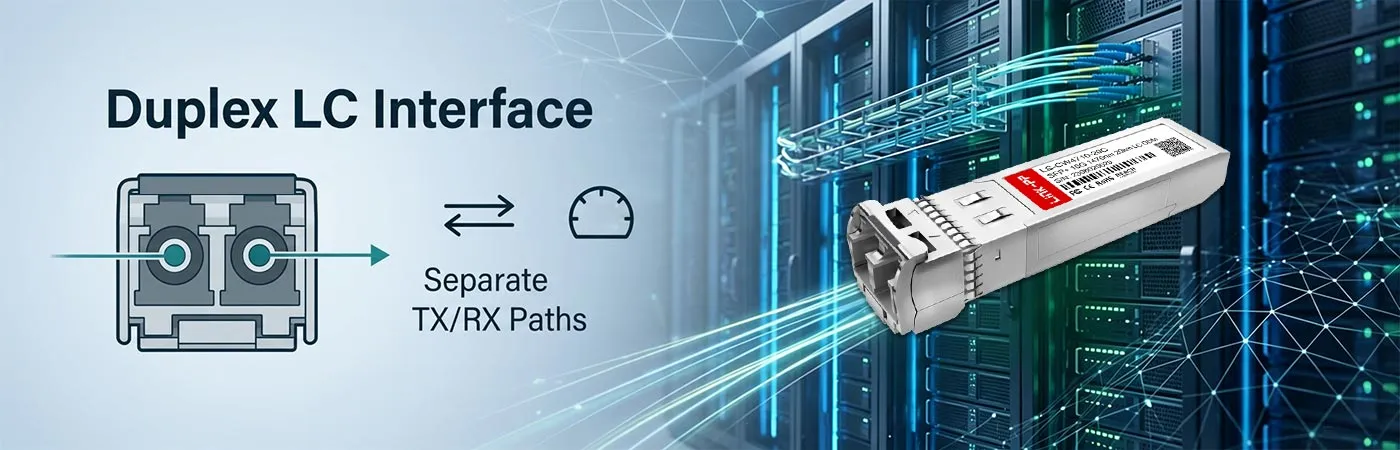

Connector	Duplex LC	Media	SMF
Transmitter Type	EML	Receiver Type	PIN
TX Power	-1 to +5dBm	RX Power	-23 to -6dBm
Receiver Sensitivity	<-16dBm	Receiver Overload	0dBm
Operating Temperature Range	0 to 70°C	Protocols	SFP+ MSA Compliant, CPRI, eCPRI, ITU-T G.652

Videos

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LS-CWxx10-20C 1471-1611.pdf

Questions & Answers
Ask a Question

No data

Q: Do we need multi-mode fiber or single-mode fiber patch cords for our CWDM MUX panel connection? By S***y on 2026-03-25

A: Single-mode fiber is mandatory for this link. Multi-mode fiber causes severe optical dispersion and attenuation at 1470nm, whereas duplex LC single-mode patch cords ensure optimal signal transmission and full 20km optical reach. By admin on 2026-03-26
Q: Can we monitor internal transceiver temperature in real time inside densely populated switch faceplates? By I***h on 2025-08-24

A: Yes. This transceiver features a Digital Diagnostic Monitoring (DDM) function that reports live operating temperature to the host device. You can access these metrics via standard switch CLI diagnostic tools or poll them remotely using SNMP. By admin on 2025-08-25
Q: Can I drop this 1470nm SFP+ module into our current CWDM filter tray alongside other wavelengths on one fiber pair? By N***r on 2025-04-04

A: Yes, it’s built for standard CWDM grid integration. Just patch it into your 1470nm MUX/DEMUX port, and it will run clean, multi-channel traffic over the same single-mode line with solid spectral stability. By admin on 2025-04-05

Customer Reviews
Write a Review

{{stardata.star}}

{{comment.count}} reviews
5 Stars

{{comment.star5}}%

4 Stars

{{comment.star4}}%

3 Stars

{{comment.star3}}%

2 Stars

{{comment.star2}}%

1 Star

{{comment.star1}}%

All Reviews ({{comment.star_num?comment.star_num:comment.count}})

All Reviews

5 stars only

4 stars only

3 stars only

2 stars only

1 star only
Reviews with Pictures ( {{comment.pic_comment}} )
See All Reviews

No data

B***n

Iran, Islamic Republic of

Verified Purchase

5 .0

2026-05-19

This commercial-grade 10G SFP+ optical module worked well in a temperature-controlled rack at our warehouse campus. The Duplex LC interface fit our existing patching layout, and the 1470nm channel did not interfere with the other CWDM wavelengths.

83 Helpful vote Comments

C***r

Libyan Arab Jamahiriya

Verified Purchase

5 .0

2026-03-27

Clean optical power levels on our 18km span with zero bit errors.

59 Helpful vote Comments

J***d

Lithuania

Verified Purchase

5 .0

2025-12-26

Reliable 10G SFP+ CWDM module at a sensible project cost.

48 Helpful vote Comments

B***r

India

Verified Purchase

5 .0

2025-12-01

As part of a regional communications infrastructure upgrade, we integrated these commercial-grade 10G CWDM optics into backhaul aggregation nodes located inside controlled indoor enclosures. Operating on the standard 1470nm channel, these modules seamlessly multiplexed with other CWDM wavelengths over a single dark fiber strand, eliminating the need for expensive new civil engineering fiber digs. Throughout a two-week stress test involving peak-hour data loads, optical return loss remained excellent and no signal degradation was recorded. Digital Optical Monitoring (DOM) metrics verified that laser bias current and transmitter output power remained completely stable. Highly recommended for network engineers needing standardized, cost-effective CWDM hardware for metropolitan and enterprise aggregation layers.

119 Helpful vote Comments

B***y

United States

Verified Purchase

5 .0

2025-11-02

Expanding our regional metro ring on a budget can be tricky, but this module hit the exact 1470nm grid channel required by our passive filter array. Optical power output matched the datasheet specifications precisely. Will buy more for phase two.

105 Helpful vote Comments

C***s

Belarus

Verified Purchase

5 .0

2025-08-27

The 1470nm 10G CWDM SFP+ came online immediately and DOM readings looked clean.

46 Helpful vote Comments

C***l

Macao

Verified Purchase

5 .0

2025-05-22

We used this 1470nm CWDM SFP+ transceiver to extend a 10GbE link between two buildings on our business campus. The 20km rating gave us enough headroom for the actual fiber route, and the Duplex LC ports made the swap straightforward. DOM values were visible right away, which helped during commissioning.

104 Helpful vote Comments

A***l

Republic of Korea

Verified Purchase

4 .0

2025-04-12

No issue with the optics at all — they were clean, sealed, and ready to deploy. The outer carton picked up some scuffs on the international route, which made the delivery look rougher than it was.

23 Helpful vote Comments

D***e

Germany

Verified Purchase

5 .0

2025-04-11

Upgraded our cross-building link using single-mode OS2 patch cables and this 1470nm optics unit. Handled continuous 10Gbps traffic loads comfortably during heavy backup cycles while remaining well inside standard operating temperature ranges.

112 Helpful vote Comments

K***y

Brunei Darussalam

Verified Purchase

5 .0

2025-03-12

Matched our CWDM channel plan perfectly and linked at 10G on first insert.

53 Helpful vote Comments

C***r

Cambodia

Verified Purchase

5 .0
