CWDM-SFP10G-20SP standardizes 20km single-mode fiber links utilizing a 1290nm CWDM architecture, blending a hot-swappable 10G SFP+ form factor with advanced DFB/PIN optical components and real-time DDM diagnostics. Engineered for high-density networking, this transceiver delivers low-latency 10Gbps data transmission, full LC duplex connectivity, and reliable SFF-8472 compliance for seamless operational monitoring in enterprise and telecom infrastructures.
| FS Part Number | CWDM-SFP10G-20SP | Vendor Name | LINK-PP |
| Form Factor | SFP+ | Max Data Rate | 10.7Gbps |
| Wavelength | 1290nm | Max Cable Distance | 20km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | DFB | Receiver Type | PIN |
| TX Power | -5 to +2dBm | RX Power | -16 to -1dBm |
| Receiver Sensitivity | <-15.5dBm | DDM Support | Yes |
| Operating Temperature Range | 0 to 70°C | Protocols | SFP+ MSA Compliant, CPRI, eCPRI, ITU-T G.652 |

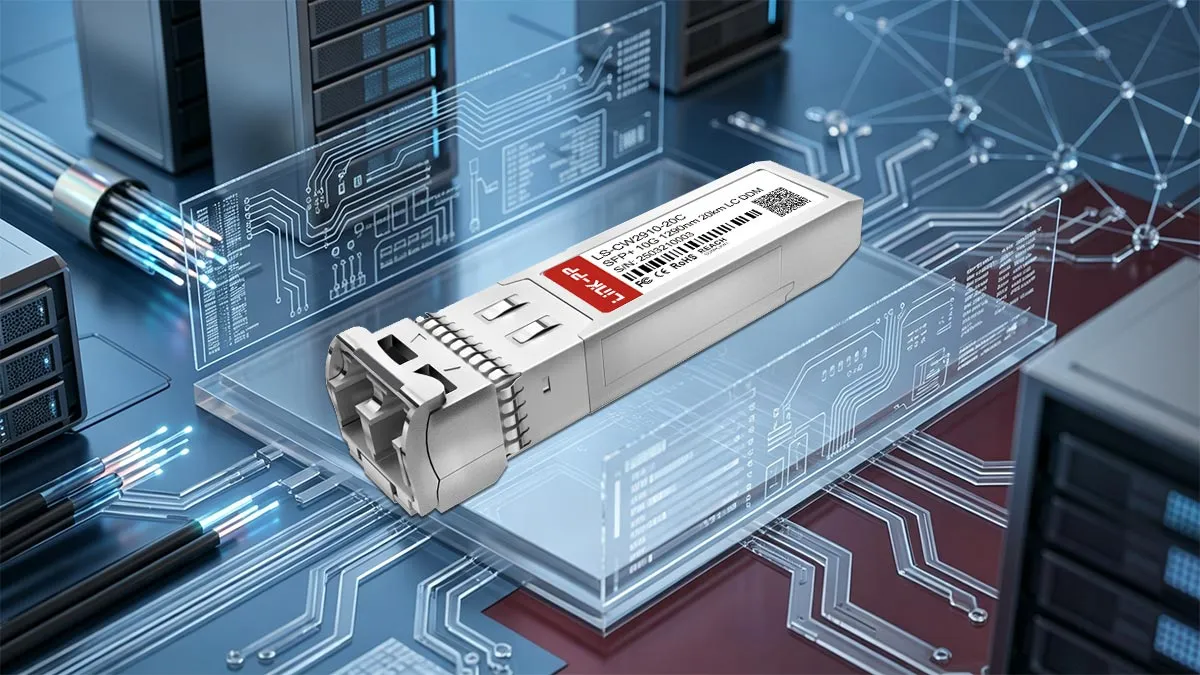

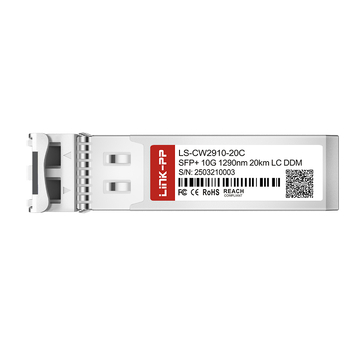

FS CWDM-SFP10G-20SP Compatible LINK-PP module is a 10G SFP+ CWDM optical transceiver module designed for reliable 20km transmissions over single-mode fiber (SMF). This compact module integrates a 1290nm DFB laser, a PIN photodiode, and built-in Digital Diagnostic Monitoring (DDM) to deliver stable data links. It offers a cost-effective and hot-pluggable solution to maximize existing fiber infrastructure.
This transceiver is fully compliant with the SFP+ MSA and SFF-8472 industry standards, ensuring excellent compatibility with standard networking equipment. Its hot-pluggable design allows for easy installation and maintenance without disrupting active system operations.

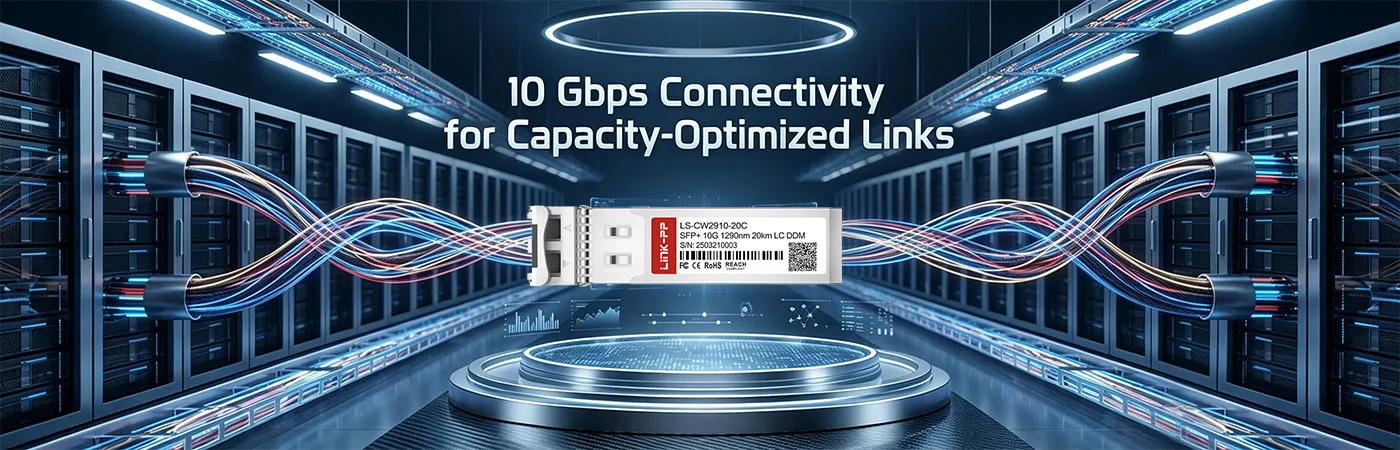

Supporting a fast 10Gbps data rate, this module provides the essential bandwidth required for modern enterprise networks and data centers. It is the perfect choice for capacity-optimized links that demand efficient and reliable high-speed data throughput.

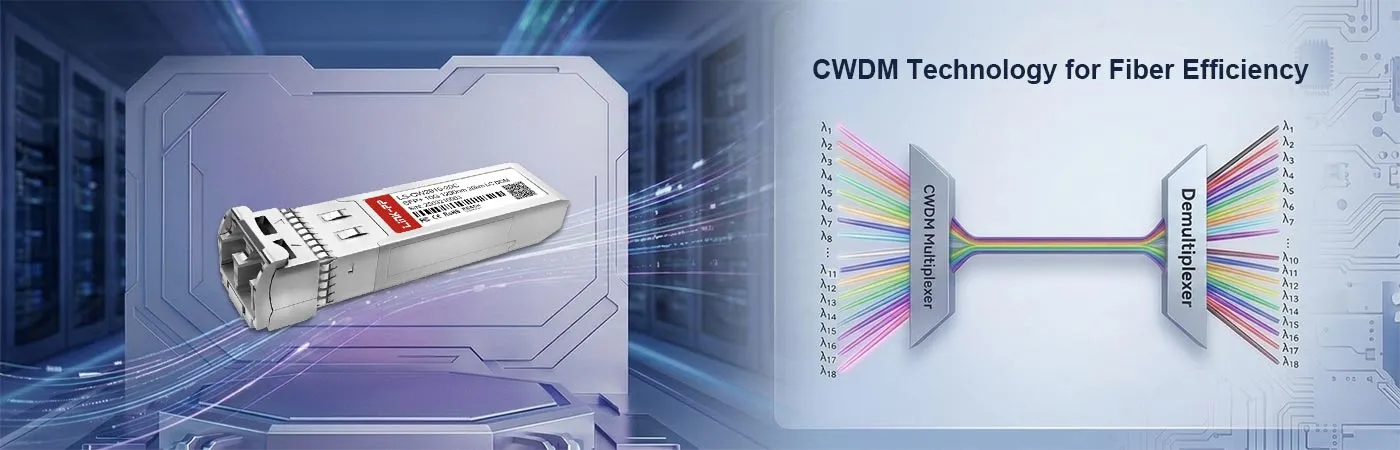

By utilizing Coarse Wavelength Division Multiplexing (CWDM) technology, this module allows multiple data channels to share a single fiber strand. This significantly increases network capacity and saves valuable fiber resources without the need to lay new cables.

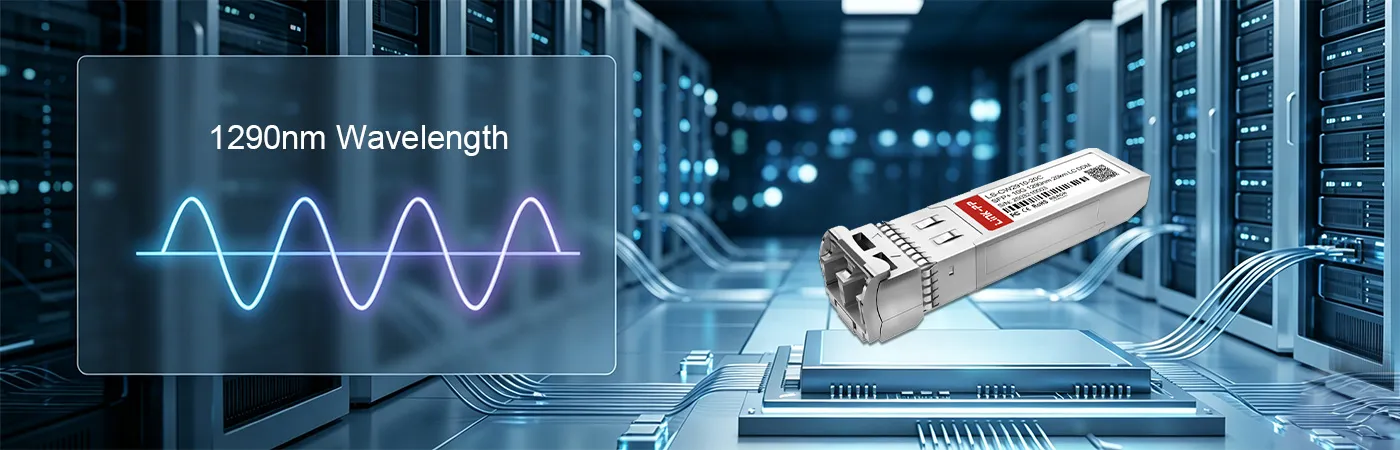

Operating at a precise 1290nm wavelength, this optical transceiver is equipped with a high-quality DFB laser transmitter and a sensitive PIN receiver. This specific wavelength ensures stable signal transmission and minimal interference within a CWDM grid setup.
Designed for mid-haul networking, this single-mode fiber (SMF) module easily supports link lengths up to 20km. It provides a dependable option for campus backbones, metro access networks, and long-distance inter-building connections.

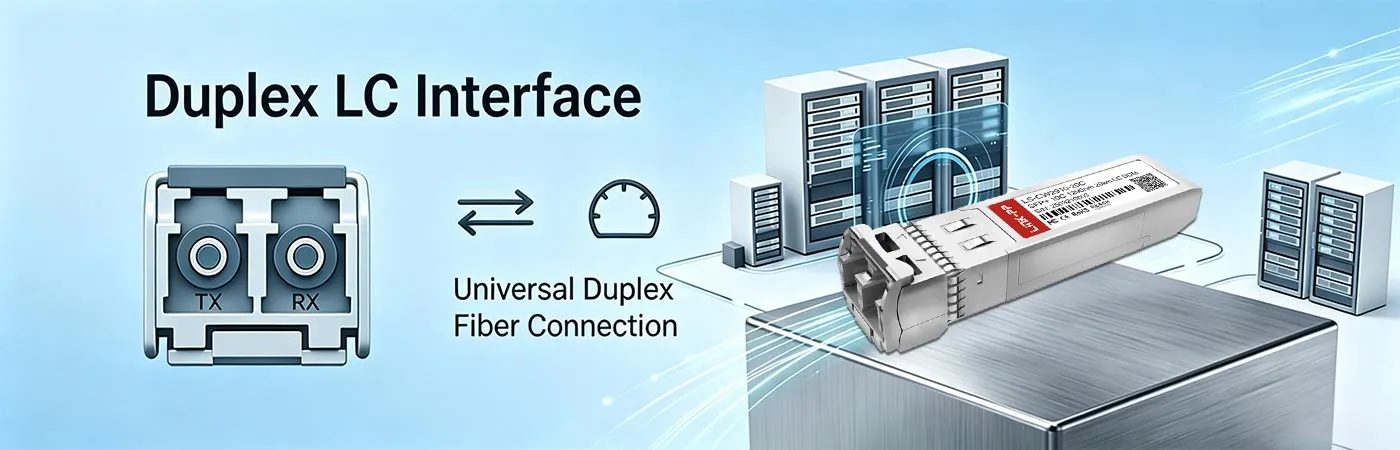

Featuring an industry-standard duplex LC optical connector, this module ensures secure and stable physical fiber connections. The duplex LC interface allows for quick deployment and matches most existing patch cables in enterprise environments.

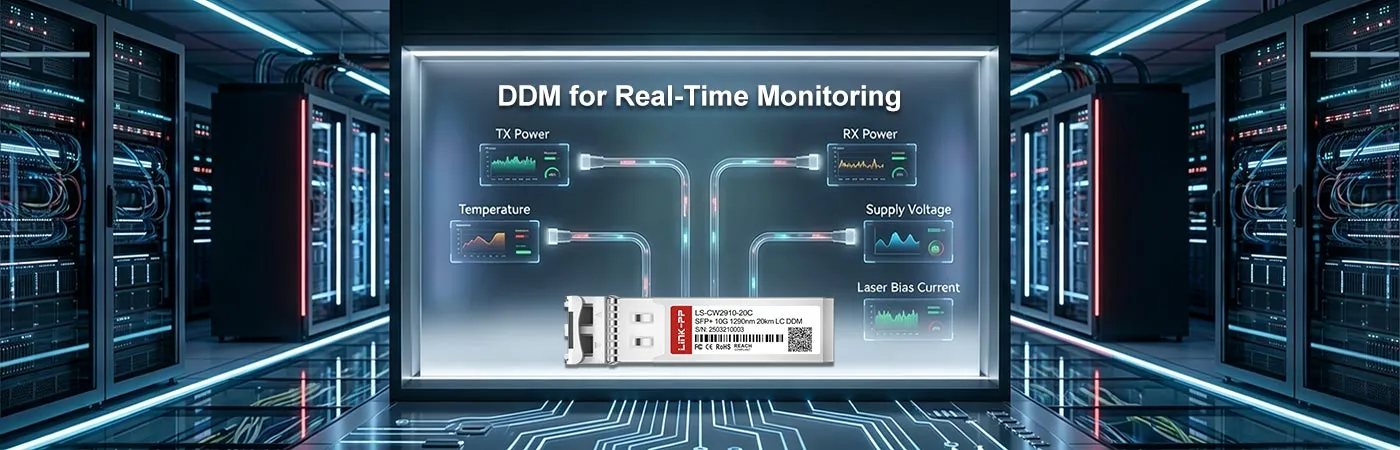

Integrated with Digital Diagnostic Monitoring (DDM), this transceiver tracks critical operational parameters in real time. Network administrators can easily monitor temperature, voltage, laser bias current, and optical power to ensure proactive system maintenance.
FS CWDM-SFP10G-20SP Compatible LINK-PP aligns with the highest international benchmarks, backed by a robust compliance portfolio that includes ISO 9001, CE, RoHS, and FCC credentials.
Each transceiver passes through a comprehensive hardware validation matrix to verify optical precision and zero-error data throughput under real-world stress.
These regulatory approvals validate the module's adherence to eco-friendly production, strict safety codes, and uniform manufacturing guidelines.
Extensive interoperability audits guarantee that the transceiver integrates smoothly into diverse vendor ecosystems without dropouts or handshake issues.
Our 10G SFP+ module undergoes stringent performance validation to protect your network from packet loss, with complete criteria detailed at the LINK-PP Test Support Center.
Auditing wavelength alignment to secure clear channel isolation.
Evaluating signal waveforms to prevent jitter and distortion.
Quantifying data integrity to guarantee flawless packet delivery.
Challenging thermal thresholds to ensure steady on-site deployment.
Our streamlined logistics framework guarantees that your CWDM-SFP10G-20SP 10G CWDM module arrives safely, on time, and completely undamaged.
Neutralizing electrical hazards to keep sensitive internal circuitry intact.
Cushioning optical transceivers against rigorous handling and sudden drops.
Expediting fulfillment cycles to minimize your project lead times.
Partnering with premier carriers to guarantee dependable worldwide arrivals.

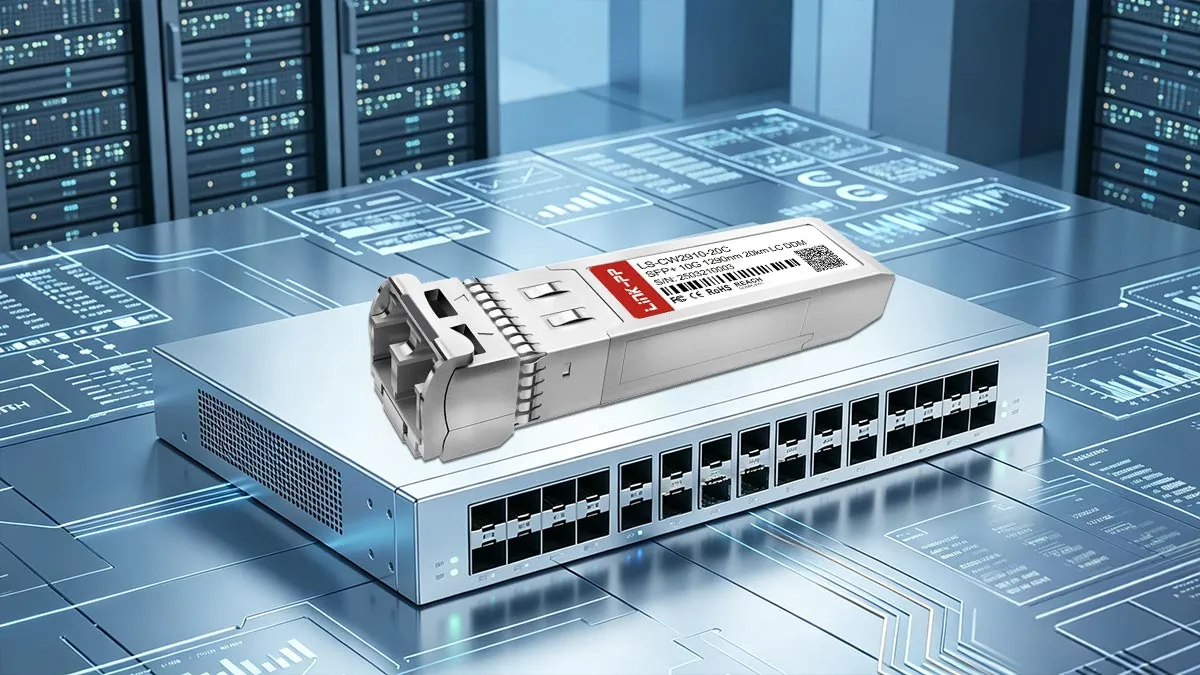

Simply hot-plug the CWDM-SFP10G-20SP 10G CWDM single-mode optical module into any standard SFP+ port and connect your duplex LC patch cable for instant activation. It is ideal for deploying 10Gbps mid-haul links across enterprise backbones, campus networks, and fiber-constrained metro access infrastructures requiring precise 1290nm CWDM routing.
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Professional guidance to help you select the optimal CWDM-SFP10G-20SP module for your network design and application needs.
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.
15-day no-reason return and refund
Free replacement for dead-on-arrival (DOA) or defective items within the initial period
Free repair services for manufacturing defects throughout the warranty period
Warranty exclusions and conditions apply
![]() LS-DW6110-A0C
| ![]() LS-DW6010-A0C
| ![]() LS-DW5910-A0C
| ![]() LS-DW5810-A0C
| ![]() LS-DW5710-A0C
|
|---|
Compatible | FS | FS | FS | FS | FS | FS |
Data Rate (Max) | 10.7Gbps | 10.7Gbps | 10.7Gbps | 10.7Gbps | 10.7Gbps | 10.7Gbps |
Wavelength | 1290nm | 1528.77nm | 1529.55nm | 1530.33nm | 1531.12nm | 1531.89nm |
Connector | Duplex LC | Duplex LC | Duplex LC | Duplex LC | Duplex LC | Duplex LC |
Cable Distance (Max) | 20km | 100km | 100km | 100km | 100km | 100km |
Cable Type | SMF | SMF | SMF | SMF | SMF | SMF |
TX Power | -5 to +2dBm | -1 to +5dBm | -1 to +5dBm | -1 to +5dBm | -1 to +5dBm | -1 to +5dBm |
Receiver Sensitivity | -16 to -1dBm | -23dBm | -23dBm | -23dBm | -23dBm | -23dBm |
Operating Temperature | 0 to 70°C | 0 to 70°C | 0 to 70°C | 0 to 70°C | 0 to 70°C | 0 to 70°C |
Temperature | Commercial | Commercial | Commercial | Commercial | Commercial | Commercial |
Form Factor | SFP+ | SFP+ | SFP+ | SFP+ | SFP+ | SFP+ |
Transmitter Type | DFB | EML | EML | EML | EML | EML |
Receiver Type | PIN | APD | APD | APD | APD | APD |
DDM Support | Yes | |||||
Protocols | SFP+ MSA Compliant, CPRI, eCPRI, ITU-T G.652 | SFP+ MSA Compliant | SFP+ MSA Compliant | SFP+ MSA Compliant | SFP+ MSA Compliant | SFP+ MSA Compliant |
