What is the typical use distance for the JD093A 10G SFP+ module?

The module is designed for short-range links, supporting a transmission distance of up to 220m over multi-mode fiber.

Why is my link not reaching the expected 220m distance?

Check fiber grade, connectors, and signal loss along the link.

Can the JD093A module be used for long-distance transmission?

No, it is designed for short-range network links.

Is cleaning required before connecting the fiber?

Yes, clean connectors help maintain stable signal transmission.

Can I connect this module to an 850nm SR module on the other side if the duplex LC patch matches?

No, optical transceivers must match wavelengths on both ends; a 1310nm transmitter cannot communicate with an 850nm receiver.

Can I use this module to connect an enterprise core switch to a network interface card (NIC)?

Yes, as long as both sides have standard 10G SFP+ slots, the link will initialize seamlessly.

How accurately does the internal DOM sensor track sudden temperature spikes in high-density server enclosures?

The internal temperature sensor updates continuously with an accuracy tolerance within ±3°C, feeding real-time data to your monitoring console.

Will this 1310nm multi-mode module work if patched into a single-mode fiber infrastructure?

No, this is an MMF specialized module; running it over single-mode fiber cabling will cause severe signal attenuation.

Will high ambient rack temperatures around 60°C cause this module to drop packets?

No, the LS-MM3110-S2C maintains stable 10Gbps transmission up to its maximum rated 70°C threshold.

Breadcrumb: Home; Products; Optics Transceivers | SFP Modules; 10/25/40G/100G Transceiver Modules; 10G SFP+; 212589

Click to open expanded view

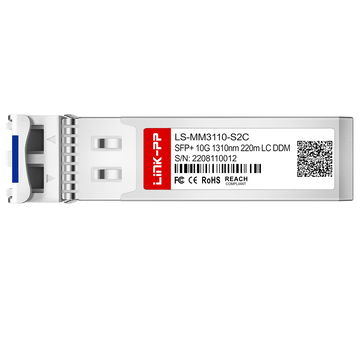

H3C JD093A Compatible LINK-PP 10G SFP+ 1310nm 220m Duplex LC DOM MMF Optical Transceiver Module

Name: H3C JD093A Compatible LINK-PP 10G SFP+ 1310nm 220m Duplex LC DOM MMF Optical Transceiver Module
Brand: LINK-PP
SKU: 212589
Price: 10.303 USD
Availability: InStock
Rating: 4.9 (19 reviews)

# 212589

Product: H3C JD093A Compatible LINK-PP 10G SFP+ 1310nm 220m Duplex LC DOM MMF Optical Transceiver Module
SKU: 212589
P/N: LS-MM3110-S2C
Price: $ 11.98
Stock: 1959 in Stock
Sold: 2.2K
Product URL: https://www.l-p.com/products/494114.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

19 Reviews

5 Questions

Request Stock

2.2K Sold

$ 11.98

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 11.98

100

$ 11.381

1000

$ 11.022

3000

$ 10.663

6000

$ 10.303

Manufacture: LINK-PP

P/N: LS-MM3110-S2C

Compatible:: Cisco; LINK-PP; Alcatel-Lucent; Arista; Aruba; Avaya; BladeSystem; Broadcom; Brocade; Ciena; D-Link; DELL; Extreme; FS; Fortinet; Generic; H3C; HW; IBM; Intel; Juniper; Mellanox; Meraki; Netgear; Palo Alto; Procurve; Ubiquiti

Compatible P/N:: JD093A | 220m; JD093B | 220m; JD093B-I | 220m; SFP-XG-LRM-MM1310 | 220m

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

Specifications

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

H3C JD093A Compatible LINK-PP 10G SFP+ Specifications

JD093A is a 10GBASE-LRM SFP+ optical transceiver module featuring a Duplex LC/UPC interface, integrated digital optical monitoring (DOM), compliance with SFP+ MSA standards, and transmission distances of up to 220m over multi-mode fiber with stable optical output characteristics.

H3C Part Number	JD093A	Vendor Name	LINK-PP
Form Factor	SFP+	Max Data Rate	10.7Gbps
Wavelength	1310nm	Max Cable Distance	220m
Connector	Duplex LC	Media	MMF
Transmitter Type	FP	Receiver Type	PIN
TX Power	-6 to -0.5dBm	RX Power	-15 to -1dBm
Receiver Sensitivity	-10dBm	DOM Support	Yes
Operating Temperature Range	-5 to 70°C	Protocols	SFP+ MSA Compliant, CPRI, eCPRI

Videos

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LS-MM3110-S2C.pdf

Questions & Answers
Ask a Question

No data

Q: Can I connect this module to an 850nm SR module on the other side if the duplex LC patch matches? By X***e on 2026-04-10

A: No, optical transceivers must match wavelengths on both ends; a 1310nm transmitter cannot communicate with an 850nm receiver. By admin on 2026-04-11
Q: Can I use this module to connect an enterprise core switch to a network interface card (NIC)? By V***e on 2026-03-27

A: Yes, as long as both sides have standard 10G SFP+ slots, the link will initialize seamlessly. By admin on 2026-03-28
Q: How accurately does the internal DOM sensor track sudden temperature spikes in high-density server enclosures? By B***k on 2026-02-23

A: The internal temperature sensor updates continuously with an accuracy tolerance within ±3°C, feeding real-time data to your monitoring console. By admin on 2026-02-24
Q: Will this 1310nm multi-mode module work if patched into a single-mode fiber infrastructure? By A***s on 2025-12-05

A: No, this is an MMF specialized module; running it over single-mode fiber cabling will cause severe signal attenuation. By admin on 2025-12-06
Q: Will high ambient rack temperatures around 60°C cause this module to drop packets? By W***d on 2025-09-19

A: No, the LS-MM3110-S2C maintains stable 10Gbps transmission up to its maximum rated 70°C threshold. By admin on 2025-09-20

Customer Reviews
Write a Review

{{stardata.star}}

{{comment.count}} reviews
5 Stars

{{comment.star5}}%

4 Stars

{{comment.star4}}%

3 Stars

{{comment.star3}}%

2 Stars

{{comment.star2}}%

1 Star

{{comment.star1}}%

All Reviews ({{comment.star_num?comment.star_num:comment.count}})

All Reviews

5 stars only

4 stars only

3 stars only

2 stars only

1 star only
Reviews with Pictures ( {{comment.pic_comment}} )
See All Reviews

No data

H***y

Japan

Verified Purchase

5 .0

2026-04-20

Moved our main distribution frame from 1G to 10G SFP+ using these MMF modules. Latency dropped noticeably and the links have been rock solid for 3 weeks straight.

39 Helpful vote Comments

J***n

United Kingdom

Verified Purchase

5 .0

2026-03-10

Needed a cost-effective 10G SFP+ 1310nm 220m optical transceiver for our server room expansion. LINK-PP delivered. Compatibility check passed with no console warnings.

30 Helpful vote Comments

J***e

India

Verified Purchase

5 .0

2026-02-05

The pull-tab latch mechanism feels premium and locks securely into the SFP+ cage. No jitter or frame errors on the port counters. Very satisfied.

31 Helpful vote Comments

T***n

Republic of Korea

Verified Purchase

4 .0

2026-01-24

The LS-MM3110-S2C transceivers work exactly as advertised with accurate DDM readings over our 150m multi-mode fiber link. Docked one star because the courier delayed delivery by 2 days, missing our scheduled maintenance window. Hardware is great though.

18 Helpful vote Comments

R***r

Australia

Verified Purchase

5 .0

2025-12-30

Flawless 10G multi-mode transceiver. Exactly as described. 10G SFP+ 1310nm, dual LC interface. Used it to bridge an old OM2 backbone segment and it holds a stable link without issues.

27 Helpful vote Comments

C***d

United States

Verified Purchase

5 .0

2025-12-24

Was skeptical about a 1310nm module over multi-mode duplex LC fiber, but it nailed the 220m spec easily. Replaced our old 1G uplinks to 10G SFP+ seamlessly. Good stuff.

69 Helpful vote Comments

S***n

Turkey

Verified Purchase

5 .0

2025-11-14

24 Helpful vote Comments

D***n

Taiwan, Province of China

Verified Purchase

5 .0

2025-09-28

No issues at all. 10G SFP+ MMF module working fine on our switches.

43 Helpful vote Comments

J***n

Mexico

Verified Purchase

5 .0

2025-08-11

During our summer network maintenance cycle, we upgraded several inter-building links to 10G. The LS-MM3110-S2C module allowed us to capitalize on our existing duplex LC MMF fiber plants. The 220m distance spec gave us plenty of headroom for our longest runs between the main server room and the lecture halls. No provisioning issues, no port configuration headaches, and the DDM stats are visible directly in our network management software dashboard.

117 Helpful vote Comments

C***n

South Africa

Verified Purchase

5 .0

2025-06-15

Exactly what I needed. Running stable over my existing duplex LC multi-mode runs.

31 Helpful vote Comments

C***n

Germany

Verified Purchase

5 .0

2025-05-09

Upgraded our production storage network. These duplex LC transceivers locked onto the 10Gbps signal immediately. Temperatures are running nice and cool around 35°C in the rack.

54 Helpful vote Comments

M***y

Bulgaria

Verified Purchase

5 .0

2024-03-06

These 10/25/40G Transceiver Modules are cheaper than other stores, but the quality don't let me down. Highly recommend!

103 Helpful vote Comments

T***G

Spain

Verified Purchase

5 .0
