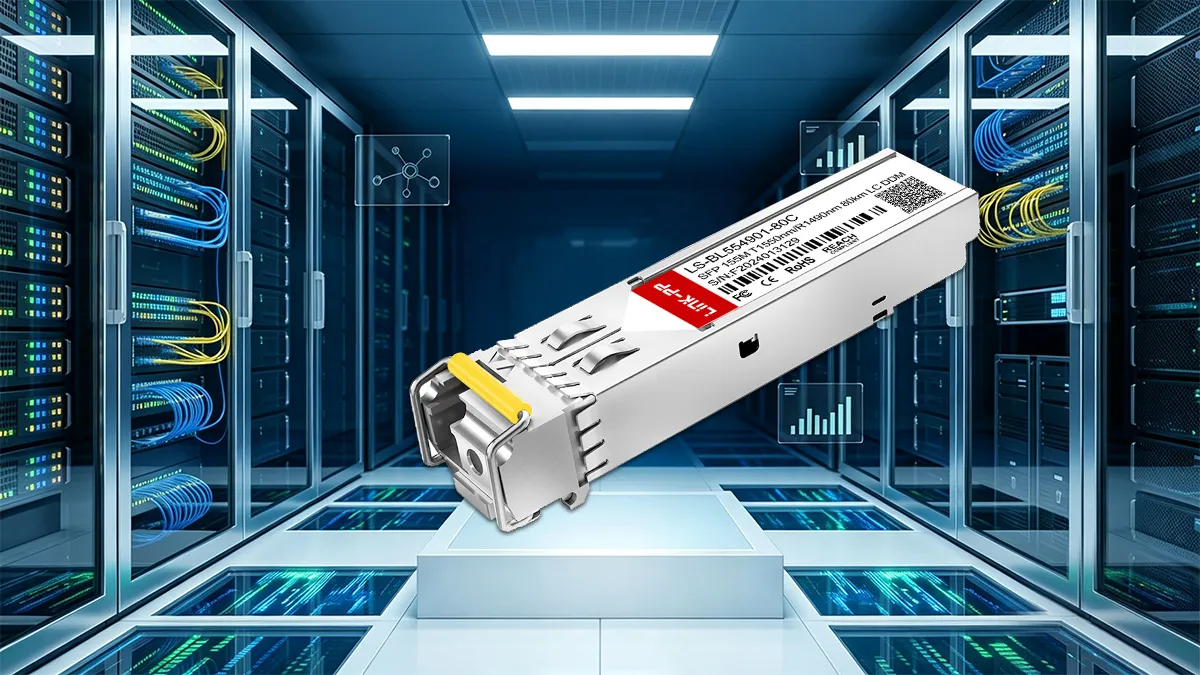

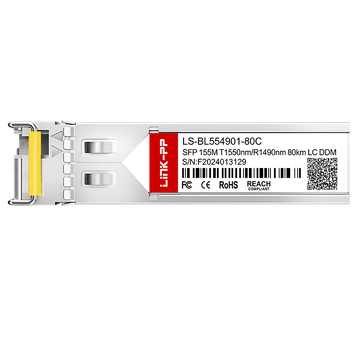

LS-BL554901-80C features a 155M BiDi SFP configuration for commercial environments, combining 1550nm-TX / 1490nm-RX wavelengths, an 80km transmission capability, and a hardware design that includes a DFB laser transmitter and PIN photodiode, with an operating temperature range of 0 to 70°C.
LINK-PP Part Number
LS-BL554901-80C
Vendor Name
LINK-PP
Form Factor
SFP
Max Data Rate
155Mbps
Wavelength
1550nm-TX/1490nm-RX
Max Cable Distance
80km
Connector
Simplex LC
Media
SMF
Transmitter Type
DFB
Receiver Type
PIN
TX Power
-5 to +2dBm
Receiver Sensitivity
-32dBm
RX Power
-32 to -6dBm
DOM Support
Yes
Operating Temperature Range
0 to 70°C
Protocols
Fast Ethernet, Gigabit Fibre Channel, MSA Compliant
Key Features of LINK-PP LS-BL554901-80C 155M SFP
LINK-PP LS-BL554901-80C is a commercial-grade 155M BiDi SFP optical transceiver designed for single-mode fiber with 1550nm-TX / 1490nm-RX wavelengths and up to 80km reach. It integrates a simplex LC interface, DFB laser, PIN photodiode, and DDM function to support stable transmission and basic monitoring within a 0 to 70°C operating range.

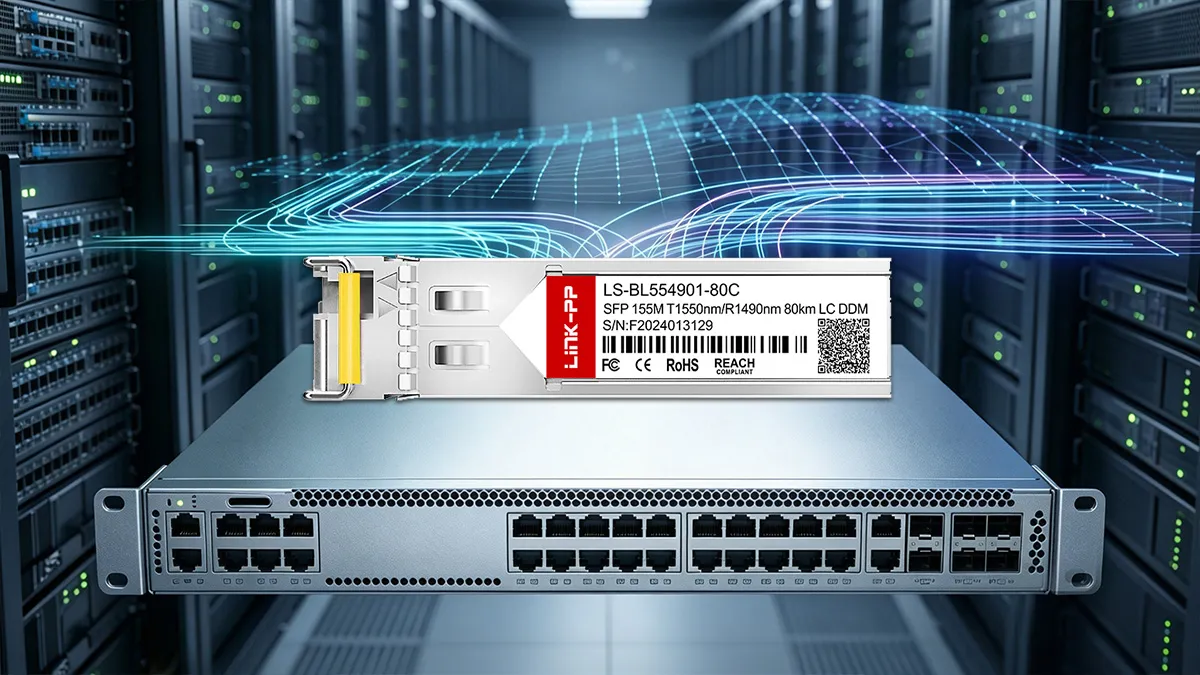

LINK-PP LS-BL554901-80C 155M SFP Optical Module
This optical module is compliant with the SFP Multi-Source Agreement (MSA), enabling seamless interoperability with a wide range of networking equipment. It also supports SFF-8472, providing a standardized interface for module management and integration within compatible systems.
LS-BL554901-80C: 155 Mbps Connectivity for Remote Sites
Operating at 155Mbps, it meets the requirements of Fast Ethernet and SDH/SONET applications. This data rate is suitable for remote site connections where stable and moderate bandwidth is needed over fiber links.

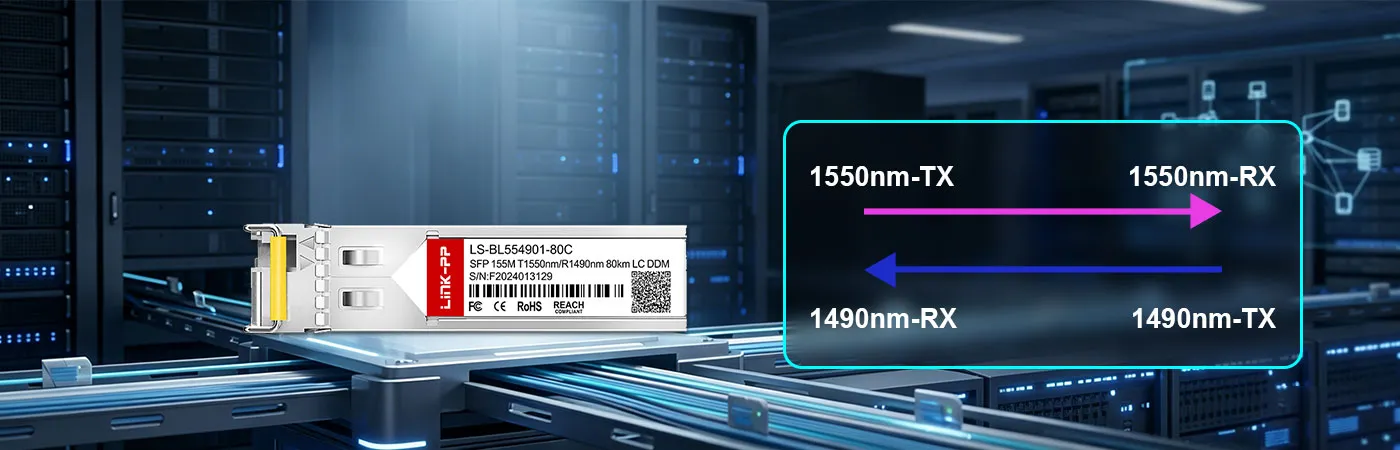

LS-BL554901-80C Module with 1550nm-TX/1490nm-RX Wavelength
A BiDi design enables transmission and reception over a single fiber using 1550nm for TX and 1490nm for RX. This wavelength pairing helps reduce fiber usage while maintaining clear signal separation.
Designed for extended-distance links, it supports transmission up to 80km on single-mode fiber. This makes it suitable for long-distance connections between geographically separated sites.

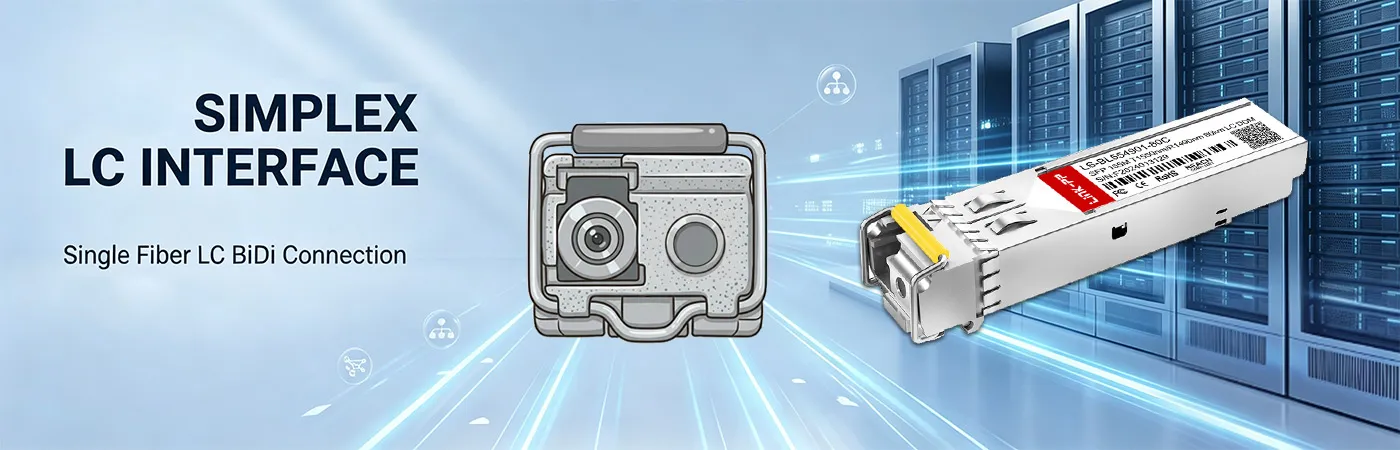

LS-BL554901-80C Module with Simplex LC Interface
The simplex LC connector allows bidirectional communication over one fiber strand. It simplifies cabling and is easy to integrate into standard fiber infrastructure.

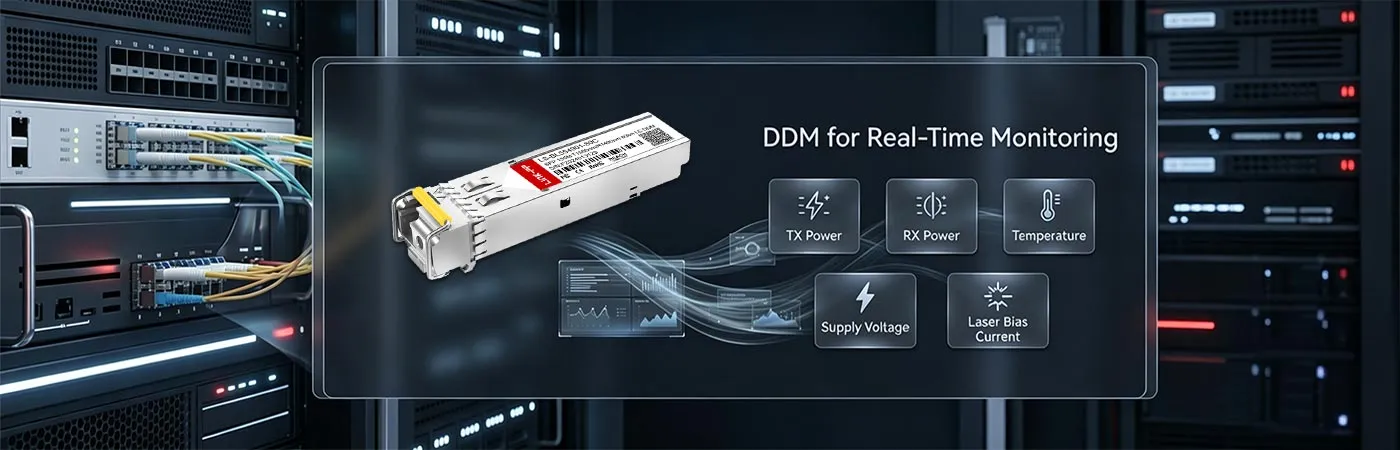

LS-BL554901-80C Module with DDM for Real-Time Monitoring
Digital Diagnostic Monitoring (DDM) provides real-time visibility into module status. Parameters such as temperature, laser bias current, supply voltage, and optical power can be monitored to support maintenance and fault detection.
LINK-PP LS-BL554901-80C 155M SFP Certification
We validate the safety and environmental compliance of this module through official alignments with ISO 9001, CE, RoHS, and FCC regulatory frameworks.
Each transceiver must clear a stringent laboratory screening process to guarantee peak physical and electrical performance under load.
LS-BL554901-80C Quality Certifications
These recognized international seals verify that our manufacturing lines meet the most demanding production consistency benchmarks in the industry.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
LS-BL554901-80C Certified for Reliable Host-Device Compatibility
Extensive hardware protocol matching ensures this transceiver establishes an instant, trouble-free link inside diverse enterprise switches.
Rigorous Testing Ensures Reliable SFP Performance
Each LINK-PP SFP module undergoes multiple validation steps to confirm consistent optical output and link stability. For more verification details, visit the LINK-PP Test Support Center.
Optical Spectrum Test
Check wavelength consistency and spectral distribution accuracy.
Eye Pattern Test
Inspect signal shape for clean and open patterns.
Bit Error Rate Test
Confirm low error levels during sustained data transmission.
Temperature Test
Validate operation under varying thermal conditions.
Product Shipping for LINK-PP LS-BL554901-80C 155M SFP
We ensure your SFP optical transceiver module orders are carefully prepared and dispatched swiftly to meet tight project deadlines anywhere in the world.
Anti-Static Protective Packaging
Protect modules from electrostatic damage during handling.
Shock-Resistant Transport Protection
Reduce impact risks throughout the shipping process.
Fast Order Processing and Dispatch
Process orders quickly for prompt shipment.
Global Logistics and International Delivery
Support worldwide shipping with reliable logistics partners.

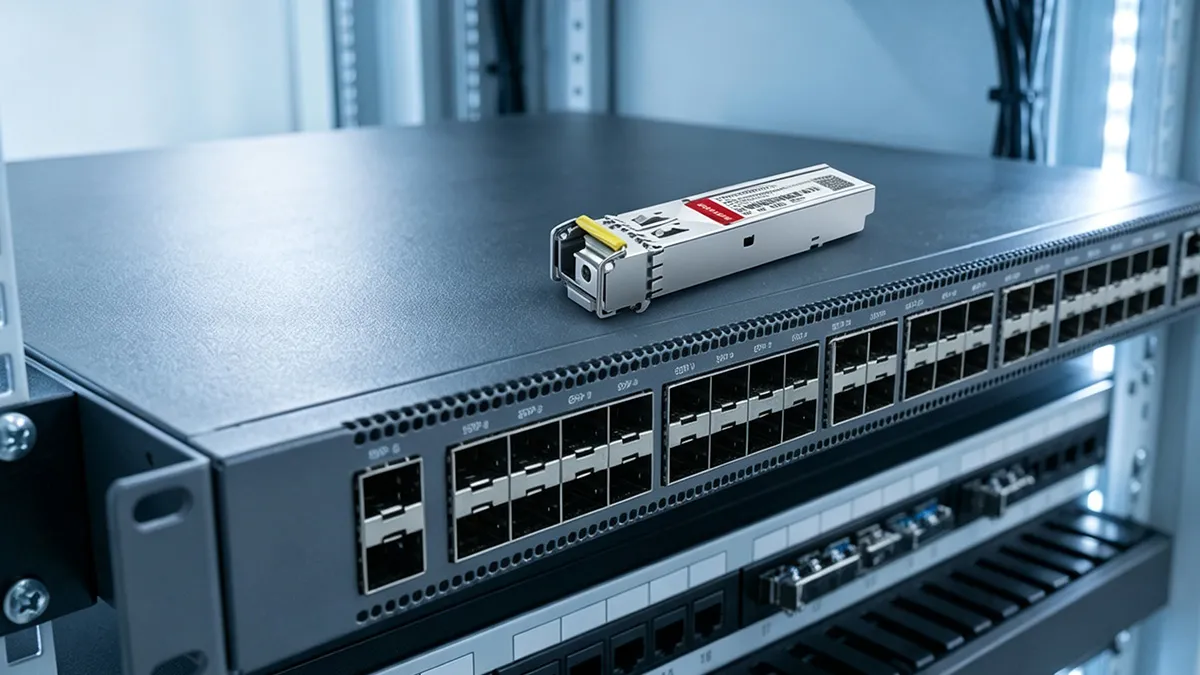

LINK-PP LS-BL554901-80C optical module demonstrates simple deployment by inserting the SFP into a compatible port and connecting a single-mode fiber via simplex LC. It is commonly used in telecom access, remote site links, and long-distance fiber connections requiring stable 155Mbps transmission over extended reach.
LS-BL554901-80C Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal LS-BL554901-80C module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
A:
You need to order the complementary 1490nm-TX/1550nm-RX 80km BiDi SFP module. This creates the matching bidirectional path needed to complete the link. By
admin
A:
No, unmanaged media converters lack the management software and processor needed to read DDM data. The module will still pass traffic perfectly, but you will not see live diagnostic readings. By
admin
A:
We definitely do. Just drop us a message with your exact module count and the specific hardware compatibility requirements for your project, and we will put together a custom price break for you right away. By
admin
Clean optics, zero CRC errors. Swapped out some old dual-fiber SFP modules for these 155M BiDi SFP transceivers. Our error counters have been flat at zero since installation. Very happy customer.
Please write comments with more than three
character.
494045
360490
C***n
Nepal
Verified
Purchase
5 .0
2026-03-27
Flawless performance. Using these for years across different projects, the LS-BL554901-80C SFP module remains my go-to for long-range 155M requirements.
Please write comments with more than three
character.
494045
360487
T***n
Philippines
Verified
Purchase
5 .0
2026-02-11
Smooth provisioning. Upgraded our edge aggregation switches. The 155M SFP BiDi transceiver paired up instantly with its 1490nm-TX/1550nm-RX matching pair on the other end.
Please write comments with more than three
character.
494045
360498
S***d
Malaysia
Verified
Purchase
5 .0
2026-01-29
Excellent receiver sensitivity on high-attenuation fiber paths! We installed this BiDi SFP optical module on an older single-mode fiber run with high cumulative attenuation and numerous field splices along a 62km path. The high-sensitivity receiver locks onto the 1490nm signal effortlessly, and our bit error rate testing reported zero defects over a continuous 24-hour test period, proving the overall quality of the hardware.
Please write comments with more than three
character.
494045
360504
V***s
Singapore
Verified
Purchase
5 .0
2026-01-09
Saved our fiber budget! We needed to upgrade a link between two enterprise offices 65km apart. Using a BiDi SFP optical transceiver meant we only used one fiber strand instead of two. Saved us a fortune on leasing costs.
Please write comments with more than three
character.
494045
360493
M***k
Macao
Verified
Purchase
4 .0
2026-01-05
Outstanding quality, slight transit delay. These 155M BiDi SFP modules are exactly what we needed for our campus network extension. Docked one star because the shipment was delayed at the regional hub for two days. Hardware-wise, it's a solid buy.
Please write comments with more than three
character.
494045
360500
J***l
Maldives
Verified
Purchase
4 .0
2025-11-24
Excellent product, held up at customs for days. The optics themselves are top-tier and the DDM readings are incredibly accurate. The only downside was the package getting stuck in local customs for almost three days, which delayed our scheduled network deployment.
Please write comments with more than three
character.
494045
360489
D***d
Romania
Verified
Purchase
5 .0
2025-10-19
Stable in indoor rack environments. Installed 50 of these 155M SFP modules in our climate-controlled server room. Temperature stays around 35°C on the module, well within the commercial 0-70°C operating range.
Please write comments with more than three
character.
494045
360496
E***g
Netherlands
Verified
Purchase
5 .0
2025-09-11
Reliable wavelength separation for Fast Ethernet ring upgrades! Our municipal utility network requires stable 155Mbps optical modules for regional telemetry rings, and this 1550nm-TX/1490nm-RX 80km SFP transceiver fits perfectly. The MSA compliance ensures smooth interoperability with older multi-vendor hardware, while the thermal engineering keeps the module casing cool even during peak traffic periods in unvented indoor enclosures.
Please write comments with more than three
character.
494045
360486
C***t
Sweden
Verified
Purchase
5 .0
2025-08-04
Real-time DDM is a lifesaver. The Digital Diagnostics Monitoring on these is super accurate. Rx power levels are well within the margin even at 70km. Makes remote troubleshooting a breeze.
Please write comments with more than three
character.
494045
360499
L***y
Mexico
Verified
Purchase
5 .0
2025-06-03
Cost-Effective Fiber Optimization for Rural Core Extensions! Upgrading our rural links to this single-mode BiDi SFP optical transceiver immediately saved our enterprise significant infrastructure costs by halving our fiber strand requirements. The high optical budget easily overcomes multiple patch panels and aging fusion splices across a 65km run, showing great stability with zero auto-negotiation or link flap issues.
Please write comments with more than three
character.
494045
360491
R***n
Poland
Verified
Purchase
5 .0
2025-04-27
Best bang for the buck. Finding reliable 80km single-mode optical transceivers at this price point is tough. LINK-PP nailed it with this Fast Ethernet SFP module.
Please write comments with more than three
character.
494045
360497
J***m
Morocco
Verified
Purchase
4 .0
2025-03-21
Shipping delay due to regional weather. The hardware is solid and the metal casing feels premium. Unfortunately, a major storm caused shipping delays, so our batch arrived 4 days late. The customer service team was responsive, but the wait was stressful for our field technicians.
Please write comments with more than three
character.
494045
360492
X***n
Norway
Verified
Purchase
5 .0
2025-02-08
High-Performance Single-Core Solution for Long-Haul Backhauls! This 155M SFP BiDi optical module delivers exceptional performance on our 70km single-mode fiber infrastructure. The hot-pluggable design allows for seamless integration into our existing aggregation nodes, while the built-in DDM interface provides highly accurate real-time diagnostics for Tx power and Rx sensitivity, maintaining zero frame loss over a 72-hour continuous stress test.
