Does this module need to be used in pairs?

Yes. It works with a paired BiDi module that transmits at 1270nm and receives at 1330nm.

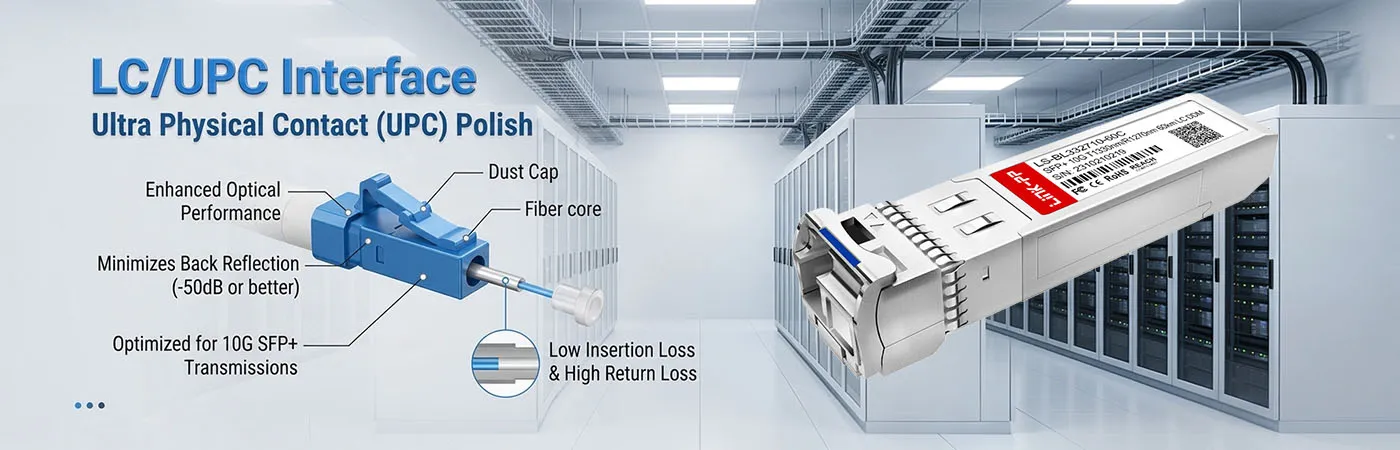

Which fiber cable should I use with the XCVR-S60U33 SFP transceiver?

Use a single-mode fiber (SMF) Simplex LC/UPC patch cord. Do not use duplex fiber.

Do I need to clean the connector before installation?

Yes, always clean the Simplex LC/UPC connector with appropriate tools to avoid contamination that reduces optical performance.

What does the DOM feature do?

Digital Optical Monitoring (DOM) provides real-time tracking of critical metrics like temperature, supply voltage, and laser power levels.

Will this 10G BiDi module communicate correctly if paired with a 10G dual-fiber transceiver on the opposite end of the link?

No, this module splits TX and RX onto a single fiber using BiDi technology, so it must be paired with its matching complementary 10G BiDi SFP+ module on the other end to establish a link.

Is it possible to multiplex this 1330nm/1270nm channel over an existing multi-mode fiber campus backbone?

No, this long-reach transceiver is engineered exclusively for single-mode fiber infrastructure and cannot propagate down multi-mode cores.

Can I patch this transceiver into an older legacy single-mode fiber infrastructure containing multiple mechanical splices?

Yes, provided your total physical path attenuation does not exceed the module's engineered optical power budget.

Can this module be hot-swapped into an active distribution switch line card without causing packet loss on adjacent ports?

Yes, the physical board design complies with SFP+ electrical hot-plug specifications, ensuring zero electrical interference to neighboring channels during insertion.

Breadcrumb: Home; Products; Optics Transceivers | SFP Modules; 10/25/40G/100G Transceiver Modules; 10G SFP+; 212519

Click to open expanded view

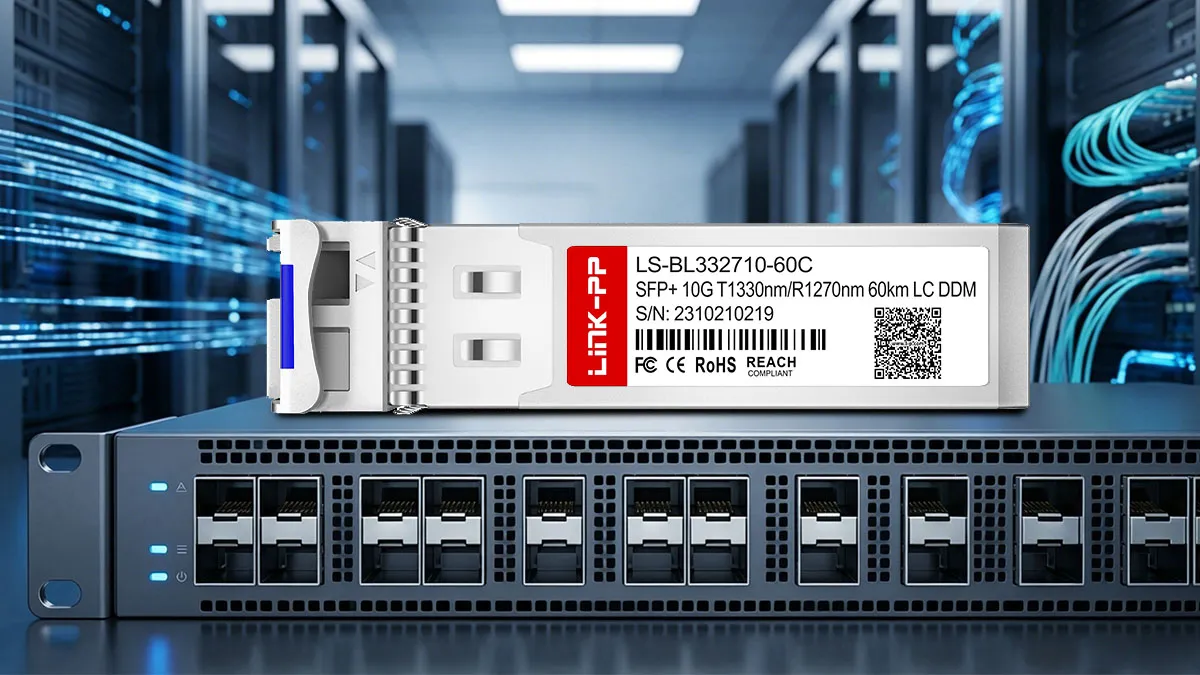

Ciena XCVR-S60U33 Compatible LINK-PP 10G SFP+ BiDi 1330nm-TX/1270nm-RX 60km Simplex LC/UPC DOM SMF Optical Transceiver Module

Name: Ciena XCVR-S60U33 Compatible LINK-PP 10G SFP+ BiDi 1330nm-TX/1270nm-RX 60km Simplex LC/UPC DOM SMF Optical Transceiver Module
Brand: LINK-PP
SKU: 212519
Price: 28.38 USD
Availability: InStock
Rating: 4.9 (25 reviews)

# 212519

Product: Ciena XCVR-S60U33 Compatible LINK-PP 10G SFP+ BiDi 1330nm-TX/1270nm-RX 60km Simplex LC/UPC DOM SMF Optical Transceiver Module
SKU: 212519
P/N: LS-BL332710-60C
Price: $ 33
Stock: 1309 in Stock
Sold: 792
Product URL: https://www.l-p.com/products/493871.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

25 Reviews

4 Questions

Request Stock

792 Sold

$ 33

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 33

100

$ 31.35

1000

$ 30.36

3000

$ 29.37

6000

$ 28.38

Manufacture: LINK-PP

P/N: LS-BL332710-60C

Compatible:: Cisco; LINK-PP; Arista; Brocade; Ciena; DELL; Extreme; FS; Fortinet; Generic; HW; Juniper; Ubiquiti

Compatible P/N:: XCVR-S10U27 | 10km; XCVR-S10U27-I | 10km; XCVR-S10U33 | 10km; XCVR-S10U33-I | 10km; 12787 | 20km; 12787-I | 20km; 12821 | 20km; 12821-I | 20km; XCVR-S20U27 | 20km; XCVR-S20U33 | 20km; XCVR-S40U27 | 40km; XCVR-S40U33 | 40km; XCVR-S60U27 | 60km; XCVR-S60U33 | 60km

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

Specifications

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

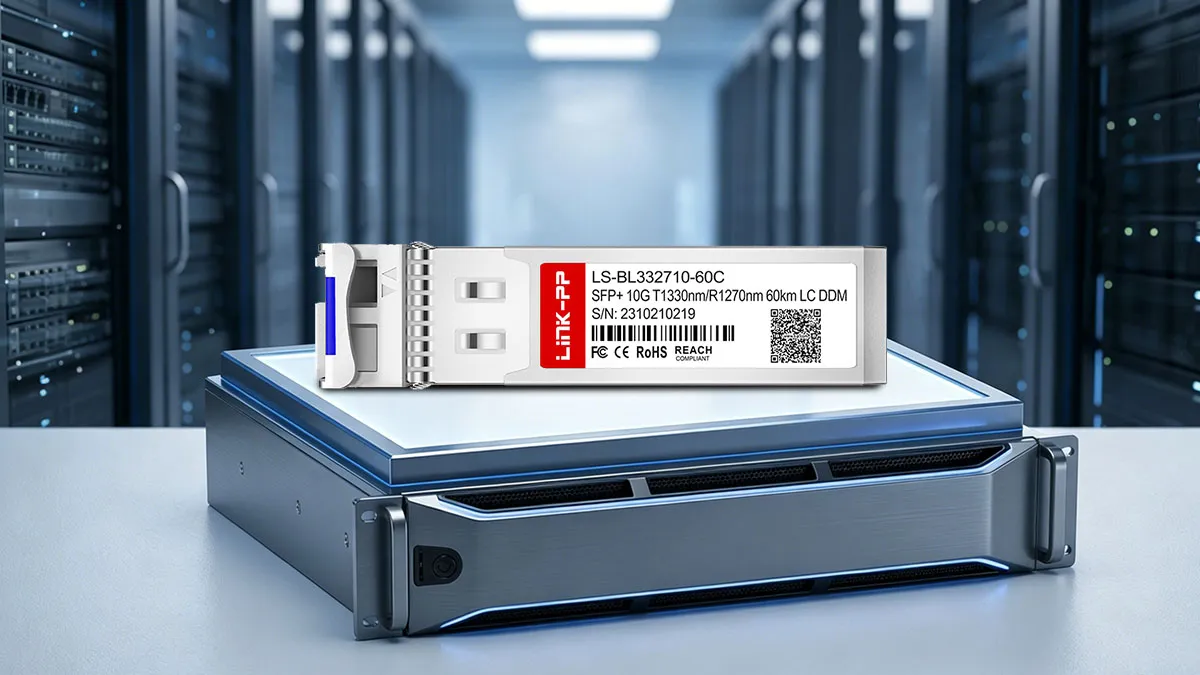

Ciena XCVR-S60U33 Compatible LINK-PP 10G SFP+ Specifications

Ciena XCVR-S60U33 Compatible LINK-PP module is a hot-pluggable 10G SFP+ BiDi optical transceiver that optimizes fiber utilization by executing dual-channel transmission over a single strand of single-mode fiber via a simplex LC/UPC interface, delivering reliable 60km connectivity utilizing 1330nm-TX/1270nm-RX wavelengths alongside real-time DOM diagnostics.

Ciena Part Number	XCVR-S60U33	Vendor Name	LINK-PP
Form Factor	SFP+	Max Data Rate	10.7Gbps

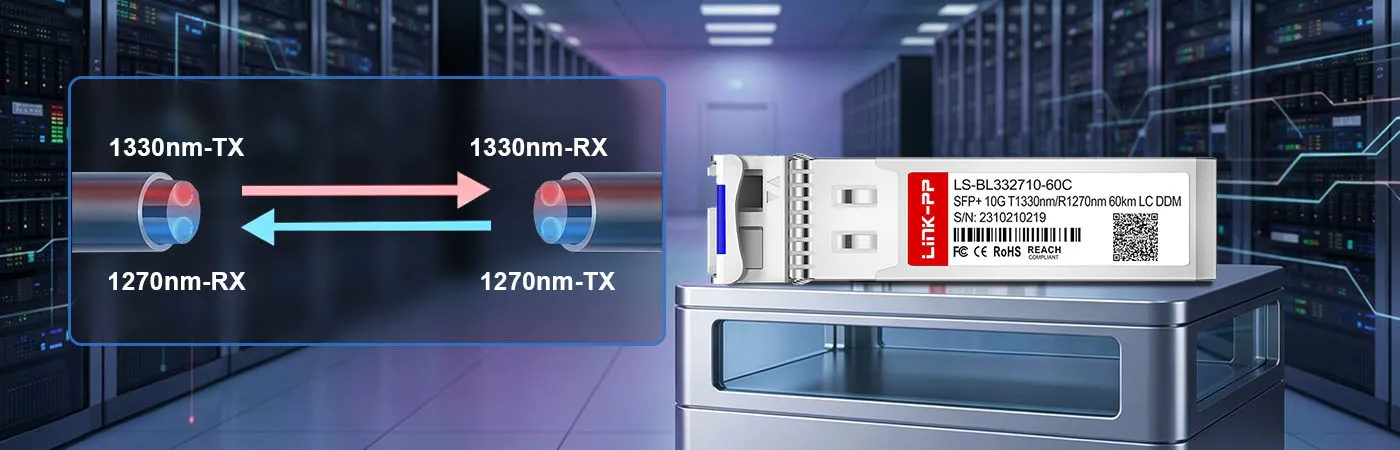

Wavelength	1330nm-TX/1270nm-RX	Max Cable Distance	60km
Connector	Simplex LC	Media	SMF
Transmitter Type	DFB	Receiver Type	APD
TX Power	-1 to +5dBm	RX Power	-20 to -6dBm
Receiver Sensitivity	-20dBm	DOM Support	Yes
Operating Temperature Range	0 to 70°C	Protocols	IEEE 802.3ae, SFP+ MSA, SFF-8431, SFF-8472, CPRI

Videos

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LS-BL332710-60C.pdf

Questions & Answers
Ask a Question

No data

Q: Will this 10G BiDi module communicate correctly if paired with a 10G dual-fiber transceiver on the opposite end of the link? By G***s on 2026-04-01

A: No, this module splits TX and RX onto a single fiber using BiDi technology, so it must be paired with its matching complementary 10G BiDi SFP+ module on the other end to establish a link. By admin on 2026-04-02
Q: Is it possible to multiplex this 1330nm/1270nm channel over an existing multi-mode fiber campus backbone? By I***l on 2026-02-19

A: No, this long-reach transceiver is engineered exclusively for single-mode fiber infrastructure and cannot propagate down multi-mode cores. By admin on 2026-02-20
Q: Can I patch this transceiver into an older legacy single-mode fiber infrastructure containing multiple mechanical splices? By P***g on 2025-10-15

A: Yes, provided your total physical path attenuation does not exceed the module's engineered optical power budget. By admin on 2025-10-16
Q: Can this module be hot-swapped into an active distribution switch line card without causing packet loss on adjacent ports? By C***s on 2025-06-27

A: Yes, the physical board design complies with SFP+ electrical hot-plug specifications, ensuring zero electrical interference to neighboring channels during insertion. By admin on 2025-06-28
