What are the exact working wavelengths of the SFP-10G-ELRBD-D transceiver?

This module transmits data at a 1330nm wavelength (TX) and receives data at 1270nm (RX).

Do I need to deploy this BiDi SFP module in identical pairs on both ends of the link?

No, you must pair it with its complementary module (the 1270nm-TX/1330nm-RX model) on the other end to establish a working link.

What type of fiber optic patch cable should be used with the SFP-10G-ELRBD-D module?

It requires a single-mode fiber (SMF) patch cord with a simplex LC/UPC connector.

What is the maximum transmission distance supported by this 10G SFP+ module?

It reliably supports data transmission distances up to 20km over single-mode fiber.

Breadcrumb: Home; Products; Optics Transceivers | SFP Modules; 10/25/40G/100G Transceiver Modules; 10G SFP+; 210889

Click to open expanded view

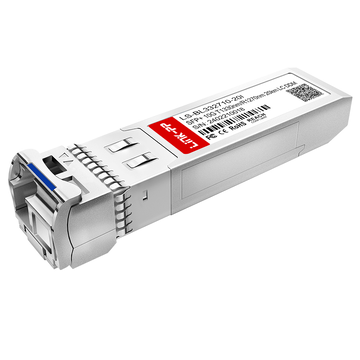

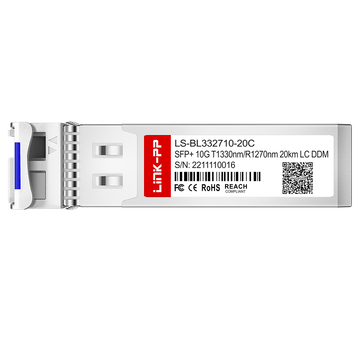

Arista SFP-10G-ELRBD-D Compatible LINK-PP 10G SFP+ BiDi 1330nm-TX/1270nm-RX 20km Simplex LC/UPC DOM SMF Optical Transceiver Module

Name: Arista SFP-10G-ELRBD-D Compatible LINK-PP 10G SFP+ BiDi 1330nm-TX/1270nm-RX 20km Simplex LC/UPC DOM SMF Optical Transceiver Module
Brand: LINK-PP
SKU: 210889
Price: 15.91 USD
Availability: InStock
Rating: 5 (16 reviews)

# 210889

Product: Arista SFP-10G-ELRBD-D Compatible LINK-PP 10G SFP+ BiDi 1330nm-TX/1270nm-RX 20km Simplex LC/UPC DOM SMF Optical Transceiver Module
SKU: 210889
P/N: LS-BL332710-20C
Price: $ 18.5
Stock: 1279 in Stock
Sold: 1K
Product URL: https://www.l-p.com/products/493485.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

16 Reviews

0 Questions

Request Stock

1K Sold

$ 18.5

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 18.5

100

$ 17.575

1000

$ 17.02

3000

$ 16.465

6000

$ 15.91

Manufacture: LINK-PP

P/N: LS-BL332710-20C

Compatible:: Cisco; LINK-PP; Arista; Broadcom; Brocade; Ciena; D-Link; DELL; Extreme; FS; Fortinet; Generic; HW; Juniper

Compatible P/N:: SFP-10G23-BX10 | 10km; SFP-10G23-BX10-I | 10km; SFP-10G32-BX10 | 10km; SFP-10G32-BX10-I | 10km; SFP-10G-ELRBD-D | 20km; SFP-10G-ERBD-U | 20km; SFP-10G-LR20BD-D | 20km; SFP-10G23-BX20-I | 20km; SFP-10G32-BX20-I | 20km; SFP-10G-ERBD-D | 40km; SFP-10G-ERBD-U | 40km; SFP-10G23-BX40-I | 40km; SFP-10G32-BX40-I | 40km; SFP-10G23-BX60 | 60km; SFP-10G23-BX60-I | 60km; SFP-10G32-BX60 | 60km; SFP-10G32-BX60-I | 60km; SFP-10G45-BX80 | 80km; SFP-10G45-BX80-I | 80km; SFP-10G54-BX80 | 80km; SFP-10G54-BX80-I | 80km; SFP-10G45-BX100 | 100km; SFP-10G54-BX100 | 100km

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

Specifications

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

Arista SFP-10G-ELRBD-D Compatible LINK-PP 10G SFP+ Specifications

The Arista SFP-10G-ELRBD-D Compatible LINK-PP module is a 10G SFP+ BiDi optical transceiver module that enables bidirectional communication over a single fiber strand by utilizing a 1330nm-TX/1270nm-RX wavelength combination to support data links up to 20km.

Arista Part Number	SFP-10G-ELRBD-D	Vendor Name	LINK-PP
Form Factor	SFP+	Max Data Rate	10.7Gbps
Wavelength	1330nm-TX/1270nm-RX	Max Cable Distance	20km
Connector	Simplex LC	Media	SMF
Transmitter Type	DFB	Receiver Type	PIN
TX Power	-6.5 to +2dBm	RX Power	-17 to +1dBm
Receiver Sensitivity	-14.4dBm	Receiver Overload	0.5dBm
Operating Temperature Range	0 to 70°C	Protocols	SFP+ MSA Compliant, CPRI, eCPRI
