Pulse SFPP-3120-L Compatible LINK-PP LP24BC01101 SFP+ 2x4 Cage&Connector Press-Fit With Inner/Outer Light Pipe

Product summary

Product
Pulse SFPP-3120-L Compatible LINK-PP LP24BC01101 SFP+ 2x4 Cage&Connector Press-Fit With Inner/Outer Light Pipe
SKU
203674
P/N
LP24BC01101
Price
$ 13.06
Stock
1300 in Stock
Sold
1.7K
Unit price $ 13.06
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP24BC01101SKU: 203674

Compatible with Pulse SFPP-3120-LDatasheet3D ModelAll downloads

Compatible P/N:
SFPP-3120-L
Volume pricing Online tiers · larger qty or custom price on request
$ 13.060
1–99 pcs
$ 11.194
100–999 pcs
$ 9.795
1,000–4,999 pcs
$ 9.305
5,000–9,999 pcs
$ 8.816
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1300 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 13.06

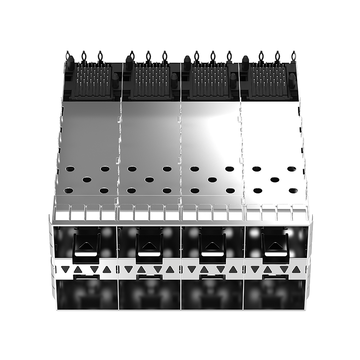

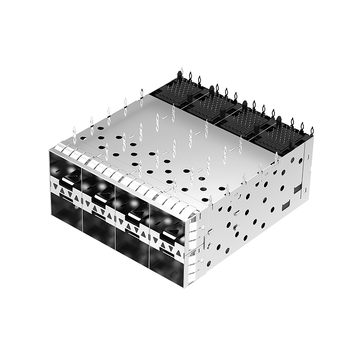

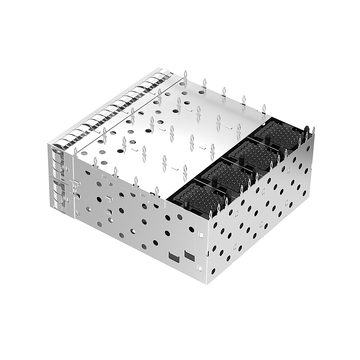

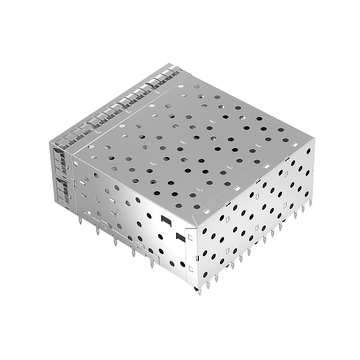

Pulse SFPP-3120-L Compatible LINK-PP LP24BC01101 SFP+ Cage&Connector 2x4 Port Press-Fit With Inner/Outer Light Pipe

LINK-PP Part Number LP24BC01101 Pulse Part Number SFPP-3120-L
Product Type Cage Form Factor SFP+
Port Matrix Configuration 2x4 Port Number of Ports 8
Operating Temperature Range -40 – 85°C Mounting Style Through Hole, Right Angle
Included Lightpipe Inner/Outer Light Pipe Termination Press-Fit
Height (Inches/mm) 0.998/25.36 Length (Inches/mm) 2.490/63.25
Width (Inches/mm) 2.264/57.50 EMI Containment Feature Type
EMI Springs

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP24BC01101.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    That is the specified operating range, and on our qualification board the frame stayed within 0.09 mm flatness after three cycles with no intermittent opens at the press-fit legs. We saw no bare plating at the six folded seams and no flaking on the legs after insertion. Keep the cage to chassis path short with vias near the mounting points, and recheck continuity after each thermal cycle when the cabinet goes through freeze and thaw. by LINK-PP Technical Support
  • A:
    One ganged frame gives you a single port pitch and one bezel opening, which is simpler to tool and keeps all eight ports on the same plane. Two 2x2 cages give more flexibility in routing and let you replace half the ports, but the accumulated tolerance between them makes a common faceplate harder. If your switch front is a single stamping, the 2x4 part is the cleaner choice. Confirm the 57.50 mm width fits the panel first. by LINK-PP Technical Support
  • A:
    It is the main mechanical risk. We held within 0.09 mm across all eight port openings after the press and every transceiver inserted cleanly; a bowed frame shows up first as binding in the upper corner ports. Use a flat backing plate under the cage and seat all the legs together in a single pass; working corner by corner is what bows the frame. Gauge the finished plated holes before insertion. Recheck the 25.36 mm height against your bezel afterwards. by LINK-PP Technical Support
  • A:
    Plan two banks rather than one row. The inner pipe serves the ports toward the centre of the 2x4 matrix and the outer pipe serves the edge, so put the host LEDs in two strips and align each strip to its own clip before pressing the frame. The two clips are packed loose and unlabelled on our trays, so sort them at incoming inspection. A 0.5 mm bezel window per indicator is normally enough. Check neither pipe has shifted after thermal cycling. by LINK-PP Technical Support
