LP24BC01003 sfp+ 2x4 cage assembly with integrated connector press-fit with emi spring finger
Click to open expanded view

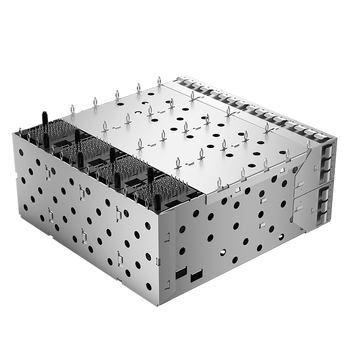

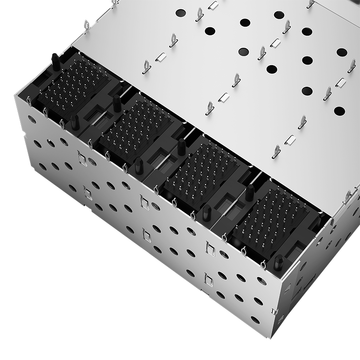

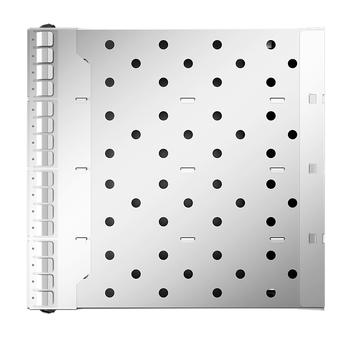

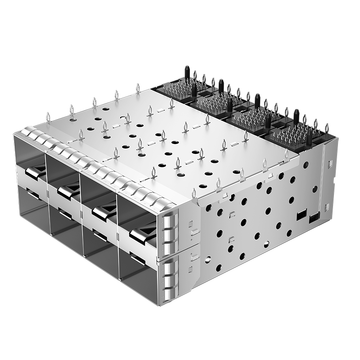

LP24BC01003 SFP+ 2x4 Cage Assembly With Integrated Connector Press-Fit With EMI Spring Finger

Product summary

Product
LP24BC01003 SFP+ 2x4 Cage Assembly With Integrated Connector Press-Fit With EMI Spring Finger
SKU
203458
P/N
LP24BC01003
Price
$ 15.60
Stock
220 in Stock
Sold
5.8K
Unit price $ 15.60
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP24BC01003SKU: 203458

LINK-PP originalDatasheetAll downloads

Compatible:
Molex
LINK-PP
Compatible P/N:
LP24BC01003
Volume pricing Online tiers · larger qty or custom price on request
$ 15.600
1–9 pcs
$ 14.820
10–99 pcs
$ 14.040
100–999 pcs
$ 13.260
1,000–2,499 pcs
$ 12.480
≥2,500 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
220 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 15.60

LINK-PP LP24BC01003 SFP+ 2x4 Cage Assembly With Integrated Connector Press-Fit With EMI Spring Finger

LINK-PP Part Number LP24BC01003 Part Status Active
Product Type Cage Assembly with Integrated Connector Form Factor SFP+
Max Data Rate 16 Gbps Features EMI Shielded
Port Matrix Configuration 2×4 Number of Ports 8
Included Connector Yes Included Heat Sink No
Included Lightpipe No EMI Containment Feature Type Spring Fingers
Termination Press-Fit Mounting Type Through Hole, Right Angle
Tail Length (Inches/mm) 0.106/2.70 Recommended PCB Thickness (Inches/mm) 0.093/2.36
Length (Inches/mm) 2.490/63.25 (REF) Width (Inches/mm) 2.264/57.50 (REF)
Height (Inches/mm) 1.016/25.80 (REF) Cage Material Stainless Steel
Contact Plating Gold Cage Plating Nickel
Operating Temperature Range -40 to +85°C Packaging Tray

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP24BC01003.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    On our samples retention was still above 12N after 300 cycles, which is well beyond what a production port sees. The springs are the wearing part, and a port that is patched daily in a lab will show a softer feel after a few years but still hold. Replace the cage only if a module drops out under its own cable weight. by LINK-PP Technical Support
  • A:
    Not inherently. EMI performance comes from the shield, the springs and how well the cage bonds to the chassis. The pipe is plastic and contributes nothing to shielding. What can change is the gap to the chassis lid, so check that your lid gasket still compresses against the cage top. by LINK-PP Technical Support
  • A:
    The page lists 25.36mm height and 57.50mm width but not the depth. A ganged SFP+ cage of this style is typically around 63mm deep, which is the same depth as the 2x1 parts in the family. Measure a sample before you finalise the chassis opening, because the depth sets how far the module protrudes. by LINK-PP Technical Support
  • A:
    No. The piped and unpiped versions are different parts with different internal geometry, and you cannot retrofit a pipe. If there is any chance you will need front panel indicators, order the piped variant now, because changing later means a new cage and a new bezel. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    23 Reviews

  • 5 Stars
    91%
    4 Stars
    9%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (23)
No data
Y***n
Poland
Verified Purchase
5.0
2026-11-16
Eight SFP+ seats in one body, saves seven insertions.
J***g
New Zealand
Verified Purchase
4.0
2026-10-17
The carton showed a crushed corner, but the cage was in its moulded tray. All eight seats took a 10G module and the connector behind them met every finger first time.
J***i
Finland
Verified Purchase
5.0
2026-09-18
2x4 SFP+, connector in, worth it.
B***n
Germany
Verified Purchase
5.0
2026-08-19
25.36 mm is two rows stacked and 57.50 mm is four pitches, so eight ports take the same plate as two 2x2 blocks, which is worth it on a line card. =)
M***k
Portugal
Verified Purchase
5.0
2026-08-11
We had a design with eight separate 1x1 cages and the press operation was the bottleneck, because each one had to be aligned by hand. Consolidating to two 2x4 cages cut that step by three quarters and removed the alignment error entirely.
